Description

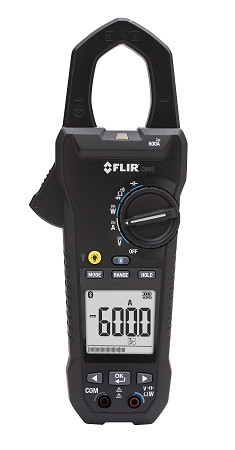

DISCONTINUED - FLIR CM83 600A True RMS Power Clamp
The FLIR CM83 is an industrial-grade Power Clamp Meter engineered with advanced power analysis and VFD filtering functions required by electrical troubleshooters.
- VFD Mode provides superior accuracy for working on VFD-controlled equipment
- Advanced power efficiency and harmonics measurements for system level performance analysis
- Powerful Worklights not only assist with clamping but are bright enough to serve as a primary worklight
- FLIR Tools Mobile connects the FLIR CM83 to your compatible smartphone and tablet via Bluetooth*
- METERLiNK® technology wirelessly integrates electrical readings on your infrared image with FLIR Thermal Cameras
- Voltage and Current
- Bright White LED Backlight
- Analog Bargraph
- Power Factor
- Phase Rotation
- Integrated Non Contact Voltage Detector
- Min
- Max
- Average
- Auto Power Off
- Data Hold
- Relative
- Peak Hold
- DCA Zero
- Battery Status
Specs
| TECHNICAL SUMMARY | MAX RANGE | BASIC ACCURACY |
|---|---|---|
| AC/DC Current | 600A | ±2% |
| AC/DC Voltage | 1000V | ±1% / 0.7% |
| Harmonics | 1st-25th Order | ±5% |
| Total Harmonic Distortion | 0.0 to 99.9% | ±3% |
| Inrush Current | 600ACA (Integration Time 100ms) | ±3% |
| Active Power | 10kW to 600kW (10V, 5A min) | ±3% |
| Diode Test | 0.4 to 0.8V | ±0.1V |
| Capacitance | 3.999mF Max | ±1.9% |
| Resistance | 99.99kO Max | ±1% |
| Continuity Threshold | 30O | ±1% |
| Frequency | 20.00Hz to 9.999kHz | ±0.5% |
Includes
- 6 AAA Batteries
- User Manual/CD
- CAT IV Silicon Test Leads
- Limited Lifetime Warranty
