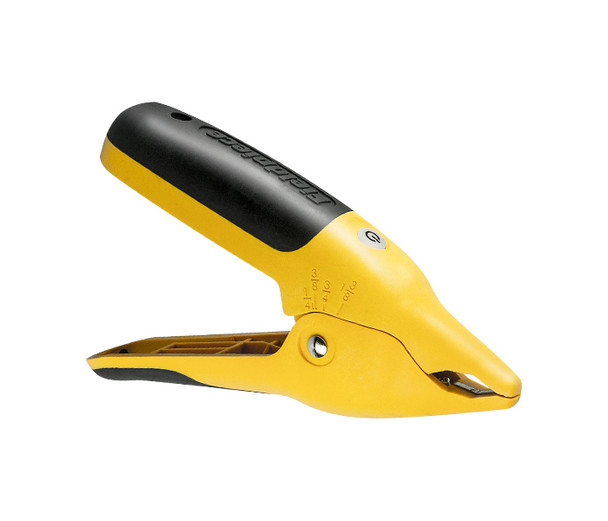

Fieldpiece JL3PC Premium Wireless Pipe Clamp Probe (1/4" - 1 3/8")
Speed? Accuracy? How about both?
The Fieldpiece JL3PC Job Link® Premium Pipe Clamp Probe delivers fast and reliable pipe temperature measurements directly to the Job Link® System App or compatible Fieldpiece wireless manifolds. Built with innovative Rapid Rail™ Sensor Technology, the JL3PC stabilizes readings in as little as 3 seconds while maintaining accuracy of ±1°F, helping technicians complete system checks and charging calculations faster.

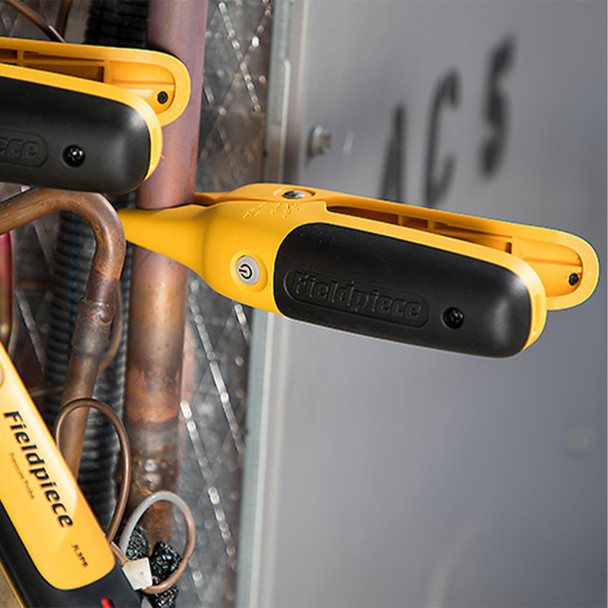

Designed for real-world HVAC/R service work, the JL3PC uses the pipe itself to complete the sensing circuit, minimizing the effects of ambient air on temperature readings. Its narrow jaw design makes it easy to attach to pipes in confined spaces, while LED and audible indicators confirm a proper connection for dependable measurements.
Características y ventajas principales

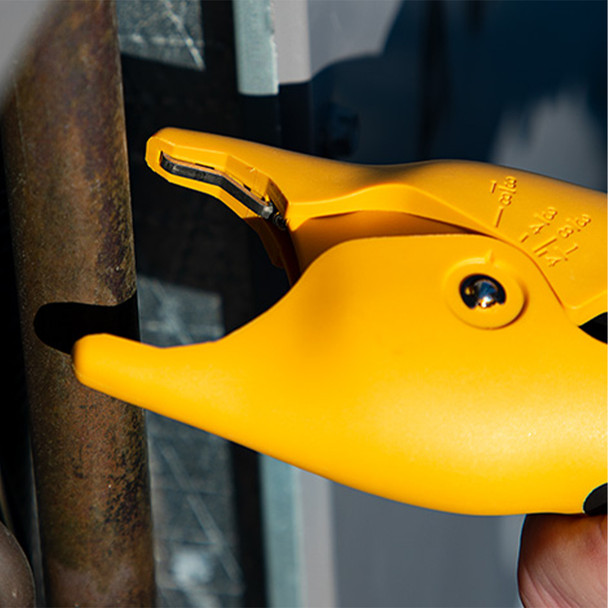

- Rapid Rail™ Sensor Technology provides fast, stable temperature readings
- 3-second stabilization time with ±1°F accuracy
- Up to 1,000 ft wireless range with no transmitter required
- Connects directly to the Job Link® App, mQ, and the SM380V/SM480V wireless manifolds
- Narrow clamp jaw fits tight and awkward pipe locations
- LED and audible indicators verify proper probe connection
- Ambient air resistant measurement design for improved accuracy
Características técnicas
| JL3PC Pipe Temp Clamp Specs | |
|---|---|
| Minimum Device Requirement: | BLE 4.0 devices running iOS® 7.0 or AndroidTM 5.0 |
| Pipe Contact Surface Compatibility: | Electrically conductive |
| Pipe Size Compatibility: | 1/4" to 1 3/8" (6.4mm to 34.9mm) OD |
| Sensor Type: | Rapid Rail thermocouple (nickel chromium / nickel aluminum) |
| Measurement Feedback: | Beeper and LED |
| Measurement Range: | -50°F to 257°F (-46°C to 125°C) |
| Stabilization Time: | 3 seconds typical |
| Precisión: | ±1.0°F (±0.6°C) (meets California's Title 24 requirements) |
| Battery Type: | 2 x AAA, NEDA 24A, IEC LR03 |
| Duración de la batería: | 150 hours typical alkaline (LED blinks red when battery replacement is needed) |
| Auto Power Off: | 2 hours (APO can be disabled) |
| Wireless Range: | 1000 feet (305 meters) line of sight |
| Radio Frequency: | 2,4 GHz |
| Operating Environment: | -4°F to 122°F (-20°C to 50°C) at <75% RH |
| Storage Temperature: | -4°F to 140°F (-20°C to 60°C), 0 to 80% RH (with batteries removed) |
| Temperature Coefficient: | 0.1 x (specified accuracy) per 0.6°F (32°F to 64°F, 82°F to 122°F), per 1°C (0°C to 18°C, 28°C to 50°C) |
| Peso: | 0.33 lbs (150 g) |
| Water Resistant: | Designed to IP55 |
| Patent: | Pending |
Plastic body and wire insulation are designed to withstand a maximum continuous temperature of 257°F (125°C)
Obstructions affect distance
Incluye
- (1) Job Link® Premium Pipe Clamp Temp Probe
- (2) AA Batteries
- (1) Emery Cloth for Pipe Cleaning
Fieldpiece JL3PC Manual
Software / Aplicación
Download the Fieldpiece Job Link® App for your Android or iOS devices
La aplicación MeasureQuick potencia una amplia variedad de dispositivos inteligentes Bluetooth con completas funciones de diagnóstico, registro de datos y generación de informes. ¡Ahora puedes consultar gráficos intuitivos con información sobre cada trabajo, equipo o sistema, todo en un solo lugar!
Descarga la aplicación measureQuick para tus dispositivos Android o iOS
