Descripción

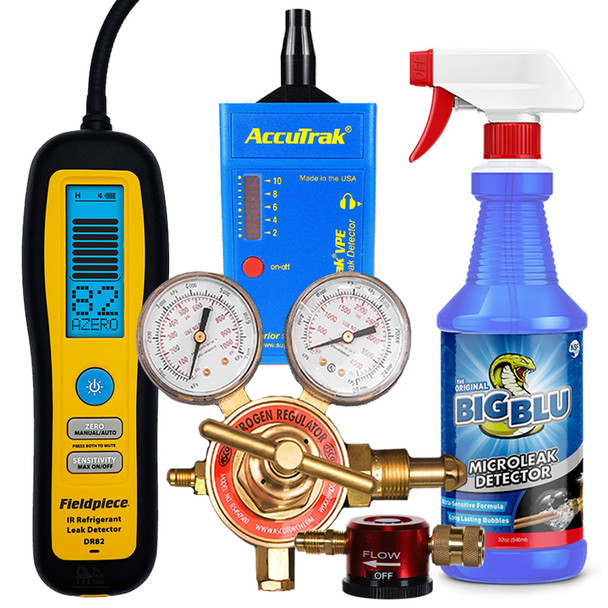

TruTech Tools Leak Hunter Professional Kit with Fieldpiece DR82 Refrigerant Leak Detector
Every Major Leak Detection Method on the Truck
The Leak Hunter Kit Pro is built for service technicians who need every major leak detection method available on the truck. Designed around the complete HVACR leak-finding workflow, this kit combines infrared refrigerant detection, ultrasonic leak detection, nitrogen pressure testing, purge flow control, and bubble solution verification into one comprehensive package.
The Fieldpiece DR82 quickly identifies refrigerant leaks, while the AccuTrak VPE ultrasonic detector helps locate leaks in nitrogen-charged systems and other situations where traditional refrigerant detectors cannot. Combined with professional pressure testing and pinpoint verification tools, the Pro kit equips technicians to confidently find leaks in a wider range of service scenarios.
Designed around the complete HVACR leak-finding workflow, the Leak Hunter Pro Kit equips technicians to handle refrigerant-charged systems, nitrogen pressure tests, and difficult-to-locate leaks using the right detection method for the job.
Características y ventajas principales
- Built Around the Leak Detection Process - Move from electronic detection to ultrasonic verification, pressure testing, and bubble confirmation using a complete leak-finding workflow
- Advanced Infrared Leak Detection - The Fieldpiece DR82 delivers highly sensitive refrigerant leak detection to help locate leaks quickly and accurately
- Ultrasonic Leak Detection Included - Hear leaks escaping from nitrogen-charged systems and other applications where traditional refrigerant detectors cannot help
- Pressure Test and Purge Ready - Includes the tools needed for nitrogen testing, flow control, and proper system purging during repair work
- Visual Leak Confirmation - Big Blu Micro Leak Detector solution creates visible bubbles to pinpoint leaks at fittings, coils, braze joints, and valves
- Choose the Right Detection Method - Detect refrigerant leaks electronically, locate escaping nitrogen ultrasonically, and confirm exact leak locations with Big Blu solution
Características técnicas
| DR82 Leak Detector Specs | |
|---|---|
| Tipo de sensor | Infrarrojos (IR) |
| Vida útil del sensor | 10 años, por lo general |
| Niveles de sensibilidad | Alto, medio, bajo, turbo (seleccionable) |
| Sensibilidad máxima |
0.03 oz/yr (1g/a), stationary; 0.1 oz/yr (3g/a), in motion |
| Comentarios sobre la detección | LED de punta roja, gráfico de barras en pantalla LCD, dígitos en pantalla LCD, pitido |
| Refrigerantes | HFC, HCFC, CFC, HFO y mezclas |
| Tiempo de respuesta | <1 seconds typical |
| Tiempo de recuperación | <5 seconds typical |
| Tipo de batería | 3,7 V CC, 2600 mAh, no recargable |
| Tiempo de carga | 6 horas de autonomía habitual con el cargador incluido |
| Duración de la batería | 10 horas de media, con la retroiluminación apagada |
| Apagado automático | 10 minutos sin que se detecte nada ni se pulse ningún botón |
| Entorno operativo | 32°F to 104°F (0°C to 40°C); < 75% RH non-condensing |
| Temperatura de almacenamiento | -4°F to 140°F (-20°C to 60°C);< 80% RH |
| Peso | 14 oz (400 g) |
| Resistencias | Diseñado según la norma IP54 |
| AccuTrak VPE Leak Detector Specs | |
| Airborne Sensor Sensitivity: | -80db/V-µbar |
| Detection Performance: | 1.5oz/yr Refrigerant |
| Ultrasound Converter type: | Heterodyne |
| Airborn Frequency response: | 36kHz-42kHz |
| Heterodyne Oscillator: | Analog |
| Heterodyne Filter: | 4kHz |
| Controls: | 1 Button |
| Sensitivity Control: | Continually Variable Slide |
| Output, Audio: | 0Hz to 4kHz |
| Output, Visual: | 10 Element Bar Graph |
| Battery Type: | Std. 9 Volt Alkaline |
| Run Time: | 80-120 hrs |
| Dimensiones: | 4.15" (10.5cm) x 2.4" (61mm) x .875" (22.2mm) |
| Peso: | 0.3lb (138gr) Includes Battery |
| Connector: | 3.5mm Stereo |
Incluye
- (1) Fieldpiece DR82 Infrared Refrigerant Leak Detector with Case and Charger

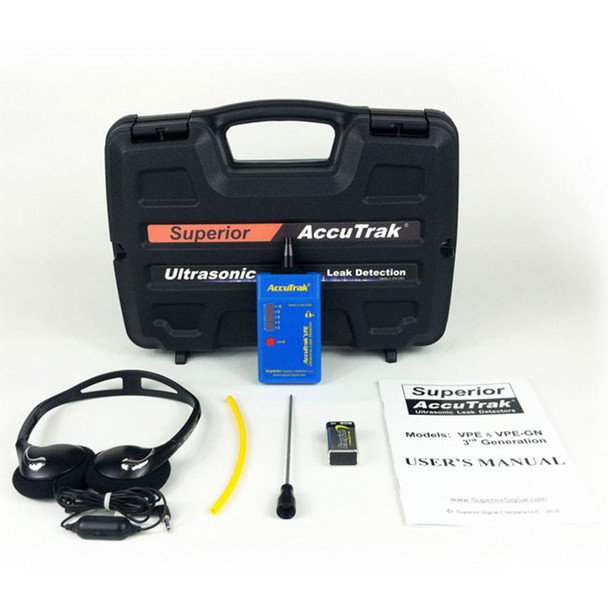

- (1) AccuTrak VPE Ultrasonic Leak Detector Standard Kit with Case and Headset
- (1) ASCO RS450 Nitrogen Regulator

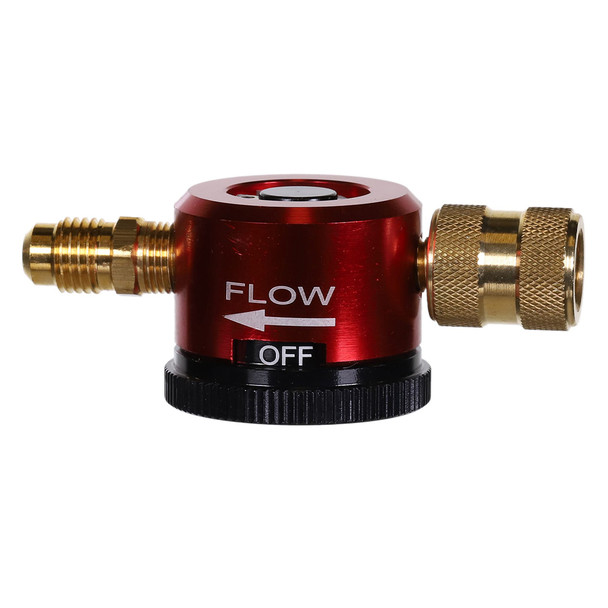

- (1) DiversiTech DP-1 Nitrogen Adjustable Purge
- (1) Big Blu Micro Leak Detector 1 Quart Spray Bottle
Fieldpiece DR82 Leak Detector Manual
