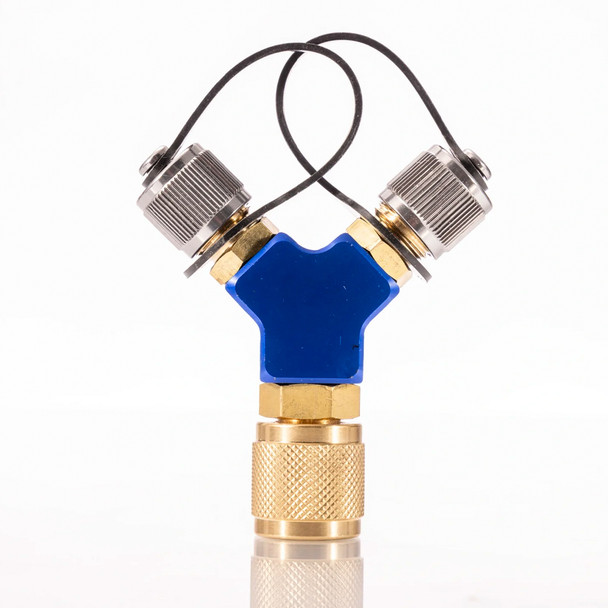

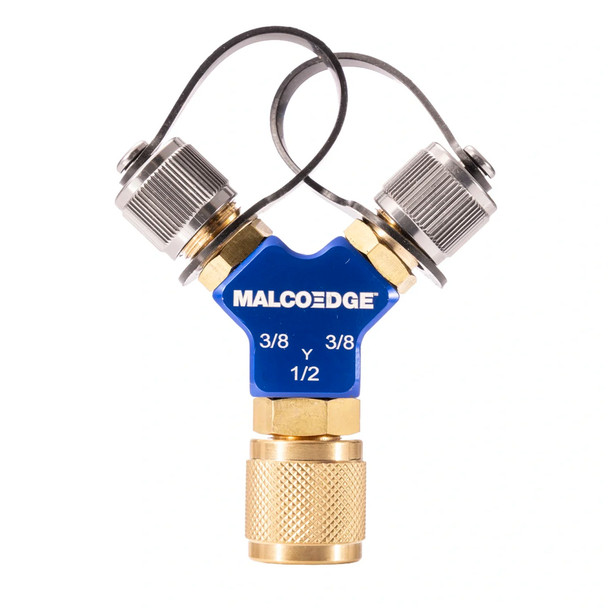

MalcoEdge HFY12 Hi-Flow Y Branch, 1/2" x 3/8" x 3/8"
Reduce Restriction in Multi-Hose Vacuum Setups
The MalcoEdge HFY12 Hi-Flow Y Branch is designed for systems with larger 1/2" connections, allowing technicians to split flow into dual 3/8" hoses for balanced, controlled evacuation and recovery. Its Y-shaped design promotes efficient flow distribution while minimizing turbulence and restriction. This enables better system performance when working with larger-capacity equipment or commercial applications.
Características y ventajas principales
- 1/2" to Dual 3/8" Configuration
- Balanced Flow Distribution
- Reduced Restriction
- Y-Design improves flow over traditional T fittings
- Vacuum-Rated to 20 Microns
- Built for Larger Systems and Commercial Applications
Características técnicas
| Connection Size | 1/2" x 3/8" x 3/8" |
| Capacidad de vacío | 20 Microns |
| Presión máxima de trabajo | 800 psi |
| Material | Anodized Aluminum Body with Brass Fittings |
Incluye
- (1) MalcoEdge HFY12 Hi-Flow Y Branch, 1/2" x 3/8" x 3/8"
Recursos
MalcoEdge Hi-Flow Y Branch Datasheet
