Descripción

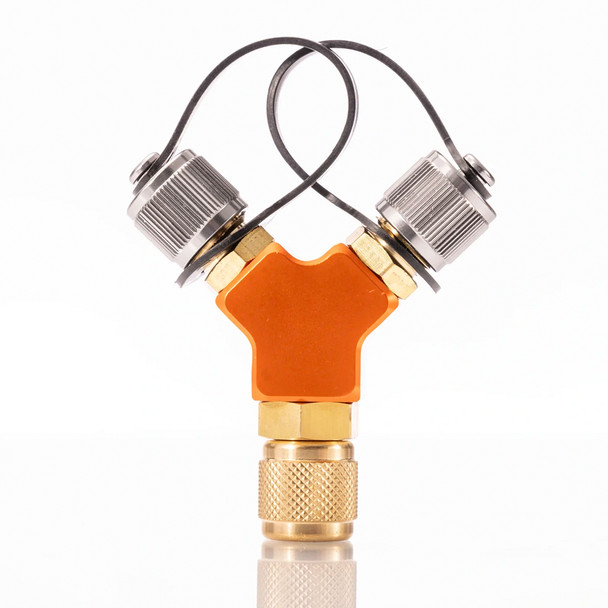

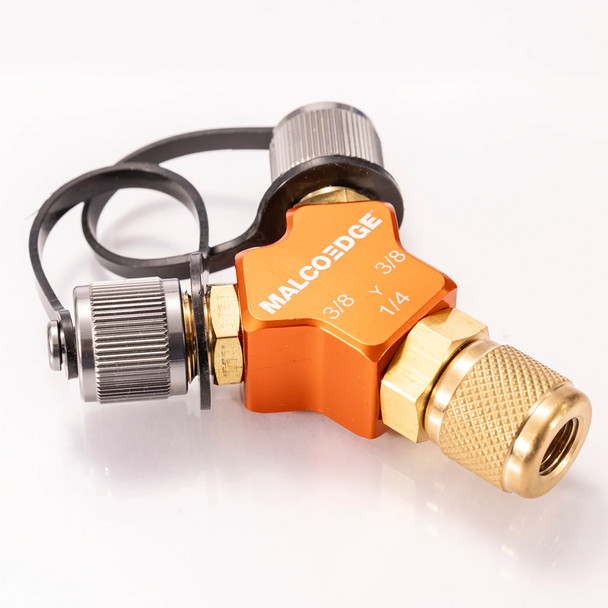

MalcoEdge HFY14 Hi-Flow Y Branch, 1/4" x 3/8" x 3/8"
Reduce Restriction in Multi-Hose Vacuum Setups
The MalcoEdge HFY14 Hi-Flow Y Branch is built to adapt smaller 1/4" service ports to high-flow 3/8" hose configurations. This allows technicians to increase evacuation and recovery speed by utilizing larger hoses and pulling from multiple points. The Y-shaped design improves flow efficiency over standard T fittings, reducing restriction and improving system performance. Ideal for systems where port size limits flow, the HFY14 helps unlock higher performance from existing equipment.
Características y ventajas principales
- 1/4" to Dual 3/8" Configuration
- Balanced Flow Distribution
- Reduced Restriction
- Y-Design improves flow over traditional T fittings
- Vacuum-Rated to 20 Microns
Características técnicas
| Connection Size | 1/4" x 3/8" x 3/8" |
| Capacidad de vacío | 20 Microns |
| Presión máxima de trabajo | 800 psi |
| Material | Anodized Aluminum Body with Brass Fittings |
Incluye
- (1) MalcoEdge HFY14 Hi-Flow Y Branch, 1/4" x 3/8" x 3/8"
Recursos
MalcoEdge Hi-Flow Y Branch Datasheet
