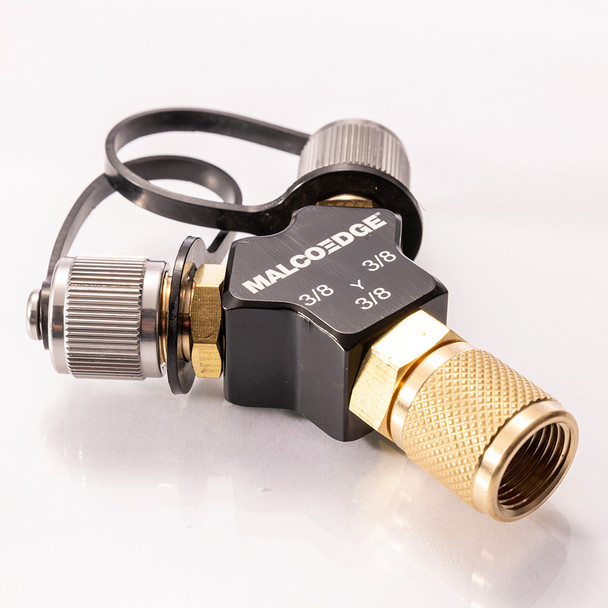

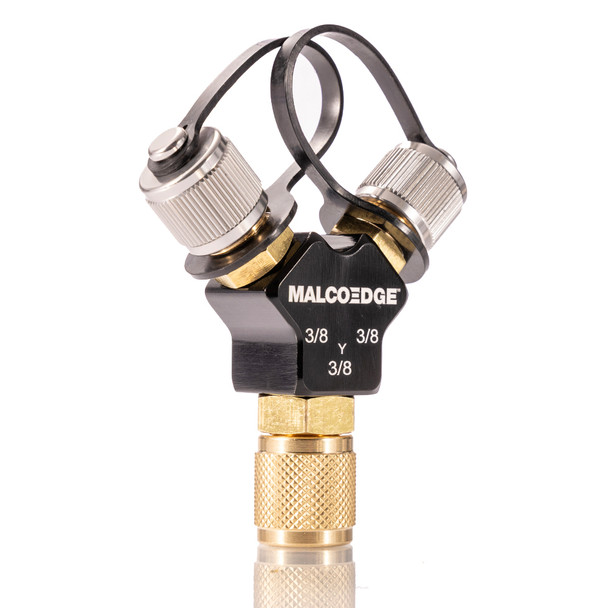

MalcoEdge HFY38 Hi-Flow Y Branch, 3/8" x 3/8" x 3/8"
Reduce Restriction in Multi-Hose Vacuum Setups
The MalcoEdge HFY38 Hi-Flow Y Branch is designed to increase system efficiency by allowing multiple 3/8" hoses to connect to a single port while maintaining optimal flow characteristics. Unlike traditional T fittings, the Y-shaped design promotes smoother, more laminar flow, reducing restriction and improving evacuation and recovery speeds. Ideal for use with vacuum pumps and recovery machines that have a single inlet port, the HFY38 enables technicians to pull from multiple points in the system at once.
Características y ventajas principales
- 3/8" to Dual 3/8" Configuration
- Balanced Flow Distribution
- Reduced Restriction
- Y-Design improves flow over traditional T fittings
- Vacuum-Rated to 20 Microns
Características técnicas
| Connection Size | 3/8" x 3/8" x 3/8" |
| Capacidad de vacío | 20 Microns |
| Presión máxima de trabajo | 800 psi |
| Material | Anodized Aluminum Body with Brass Fittings |
Incluye
- (1) MalcoEdge HFY38 Hi-Flow Y Branch, 3/8" x 3/8" x 3/8"
Recursos
MalcoEdge Hi-Flow Y Branch Datasheet
