Description

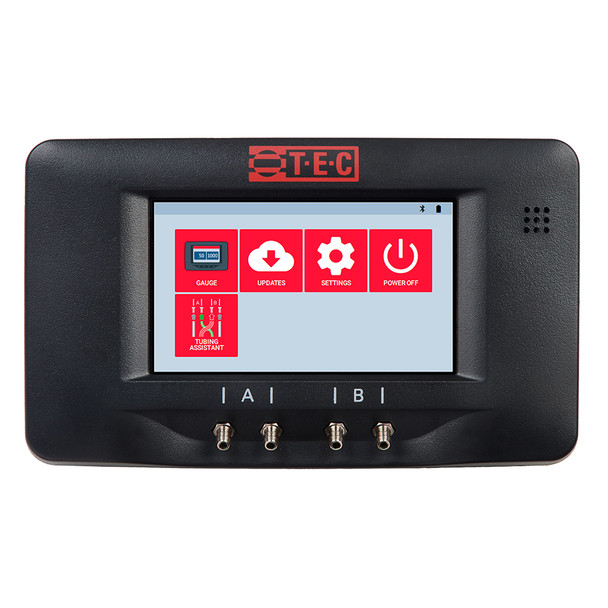

TEC Minneapolis DG-1000 Dual Channel Digital Pressure-Flow Gauge with BlueTooth
Introducing the TEC DG-1000
With the industry success of the DG-700 Digital Pressure and Flow Gauge, the team at The Energy Conservatory (TEC) knew it was time to begin researching and conceptualizing a new, innovative, and performance-driven version of the digital gauge for 2016. An invaluable tool for anyone in the building performance industry, the TEC DG-1000 provides the accuracy you expect from TEC devices and superior versatility.
The DG-1000 is also ideal for making key building pressure measurements, including room pressures as a part of air balancing, exhaust fan flow readings, pressure pan testing, zonal pressure diagnostics, Combustion Air Zone (CAZ) depressurization, Zone Pressure Diagnostics (ZPD) and draft testing, radon sub-slab, external static pressure and many more.
The pressure testing possibilities are endless for this powerful meter!
New for the DG-1000
- All DG-1000 have a 4-year calibration cycle
- All new DG-1000 (since Nov 21) have a USB-C port (for charging and communication) replacing the barrel jack charger and Micro-USB port
- With firmware upgrade DG-1000 can be a stand-alone pressure logger
- Download the New Auto Test Wind Assistant App
Features:
- Responsive capacitive touch screen provides high-end performance, similar to a smartphone or tablet
- Bright, full-color screen for superior readability
- Built in Wi-Fi and Bluetooth is available in all units at no extra cost
- Built in USB, micro USB and Ethernet ports
- Field-replaceable, rechargeable batteries
- Powerful microprocessor with a custom-built operating system
- Future proof technology lets you update your gauge with new features and capabilities as they are released
- Compatible with all TEC products, including all new products released in the future
- Landscape orientation for an intuitive feel and a distinctive look
- Four magnets on the back provide a variety of convenient mounting options
- 2-year warranty
Bluetooth now available on any DG-1000!
TEC heard your feedback and implemented Bluetooth connection into every DG-1000, old or new. Professionals who already own a DG-1000 can unlock this capability by installing update version 1.6. The Bluetooth icon will appear on the home screen. All iOS and Android apps, such as Auto Test, have been updated to connect via Bluetooth. TEC Gauge for Android to be updated soon.
Is the TEC DG-1000 compatible with all TEC products?
TEC continues to set the standard for specialized airflow and pressure measuring devices. That being said, they understand the importance of smart, careful engineering and compatibility. That is why the TEC DG-1000 is compatible with all TEC products. This includes any and all new TEC products that are released in the future!
Specs
| No. of Independent Pressure Channels | Two |
| Pressure Range | -2,500 to +2,500 Pascals (-10 to +10 inches of water) |
| Display Resolution | 0.1 Pa for readings 0 - 999.9 Pa 1 Pa for readings 1000 Pa and larger |
| Accuracy at Typical Use Conditions*/** | 0.9% of pressure reading or 0.12 Pa, whichever is greater |
| Units of Measure | Channel A - Pascals (Future addition - inches of water) Channel B - Pascals, CFM, CFM@75, CFM@50, CFM@25, ACH50, CFM@25/ft², CFM@25/100ft², CFM@50/ft², CFM@50/100ft², CFM@75/ft², CFM@75/100ft² (Future additions - inches of water and equivalent metric units) |
| Auto-zero | On start up and then once every 10 seconds |
| Time Averaging | 1, 5, 10 seconds and long-term (continuous update) |
| Operating Temperature Range*** | 42 degrees F to 115 degrees F (5.5 degrees C to 46 degrees C) |
| Storage Temperature Range | -4 degrees F to 140 degrees F (-20 degrees C to 60 degrees C) |
| Display | 480 x 272 pixels, 3.75 x 2.125 inches, capacitive touch screen |
| Display Backlight | User adjustable (default 40%) |
| Power | Two 18650 Lithium Ion batteries with AC charger/power adapter included |
| Battery Life | Over 15 hours of continuous use with default settings 13 hours of continuous use with default settings and wifi active |
| Auto-Off | Adjustable from 10 minutes to 2 hours |
| Dimensions | 7.0 x 4.2 x 1.4 inches |
| Weight | 15.7 oz |
*Typical Conditions are a temperature range of 54 to 90 degrees F, and a two year calibration interval.
**As Calibrated Accuracy is +/- (0.3% of reading + 0.05 Pa) under controlled conditions of 67 to 77 degrees F, four month calibration interval, and pressure readings averaged for 5 seconds. All gauges are verified to meet this specification at all calibration pressures.
***For use at temperature conditions outside the typical conditions in Note 1, or the as-calibrated range in Note 2, add an additional 0.037% of pressure reading per degree F over the stated range.
Includes
- DG-1000
- Batteries and power/charger adapter
Videos
Resources
The Energy Conservatory DG-1000 Overview
Software / App
Download the TEC Gauge App for your Android or iOS devices!
TEC Gauge is a free mobile app that provides wireless control and display of DG-1000, DG-700 and DG-500 Pressure and Flow Gauges. TEC Gauge’s capture feature lets you store and share readings from your gauge.
This app connects to the gauge through a WiFi network (DG-700 and DG-500 gauges require a TEC WiFi Link).
Features Easy to use cruise control for the blower door fan and Duct Blaster fan. Baseline feature for airtightness evaluation. Displays airflow values for all TEC devices.
Capture feature allows for storage and sharing of readings from the TEC gauge. Captured readings can be labeled, sorted and sharing using file sharing apps on the mobile device. Capture readings can be shared in either text or xml formats.
