Fieldpiece DR82 Infrared Refrigerant Leak Detector

SKU:
DR82
MPN:
DR82
Minimum Purchase:
1 unit
A2L Compatible?:
Yes
  • Fieldpiece DR82 Infrared Refrigerant Leak Detector
  • Fieldpiece DR82 Infrared Refrigerant Leak Detector
MSRP: $581.00
Price: $493.85
— You save $87.15

Description

Fieldpiece DR82 Infrared Refrigerant Leak Detector

Easy to see it's more reliable.

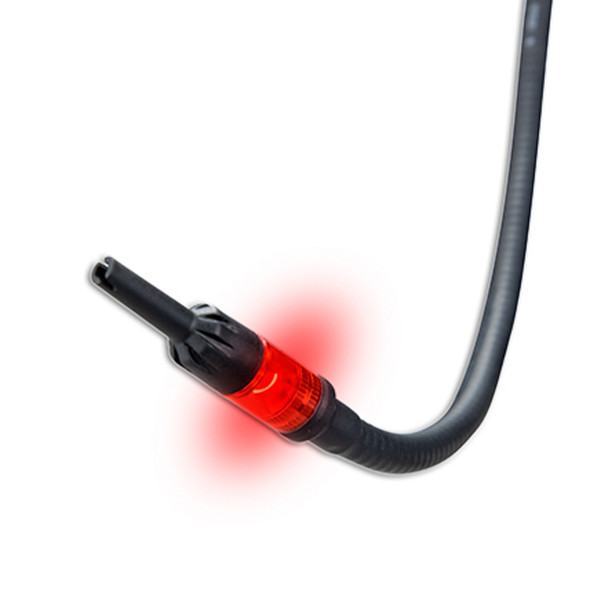

If you want to find leaks faster for your customers, try the Fieldpiece DR82 Infrared Refrigerant Leak Detector. Multiple indicators and sensitivity 20x higher than soap bubbles make it quick and easy to track down even the smallest leaks in various environments. A red LED flashes at the tip so you can keep your eyes on the target. The large bars on the backlit LCD are easy to see in bright sunlight or low light, and the numerical value provides an extra digit of resolution. Unlike conventional leak detectors, you have full control with both an automatic (AZERO) and manual (MZERO) zero mode. The large Li-ion rechargable battery provides over 10 hours of continuous operation and is convenient to charge via USB-C. Replaceable tips filter out water and dust while getting into tight spots. All wrapped up in a ruggedized IP54 housing, it's built for the field.

Features

  • Sensitivity at or lower than 0.03 oz/yr (1g/a)
  • Massive backlit LCD screen provides clear, easy-to- see information
  • State-of-the-art infrared sensor
  • Detects all HFC, CFC, HCFC, HFO and blends
  • Flashing lighted tip, multiple alarms, and numerical leak size indicator
  • Doesn’t trigger on soap bubbles and oil


Specs

Sensor Type Infrared (IR)
Sensor Life 10 years typical
Sensitivity Levels High, medium, low, turbo (selectable)
Maximum Sensitivity 0.03 oz/yr (1g/a), stationary;
0.1 oz/yr (3g/a), in motion
Detection Feedback Red tip LED, LCD bar graph, LCD digits, beeper
Refrigerants HFC, HCFC, CFC, HFOs, and blends
Response Time <1 seconds typical
Recovery Time <5 seconds typical
Battery Type 3.7 VDC 2600mAh, non-replaceable
Charge Time 6 hours typical with included charger
Battery Life 10 hours typical, backlight off
Auto Power Off 10 minutes without detection or button press
Operating Environment 32°F to 104°F (0°C to 40°C); < 75% RH non-condensing
Storage Temperature -4°F to 140°F (-20°C to 60°C);< 80% RH
Weight 14 oz (400g)
Resistances Designed to IP54

Includes

  • (1) DR82 Infrared Refrigerant Leak Detector
  • (1) Blow Molded Carrying Case
  • (1) AC Charger and USB-C Cable

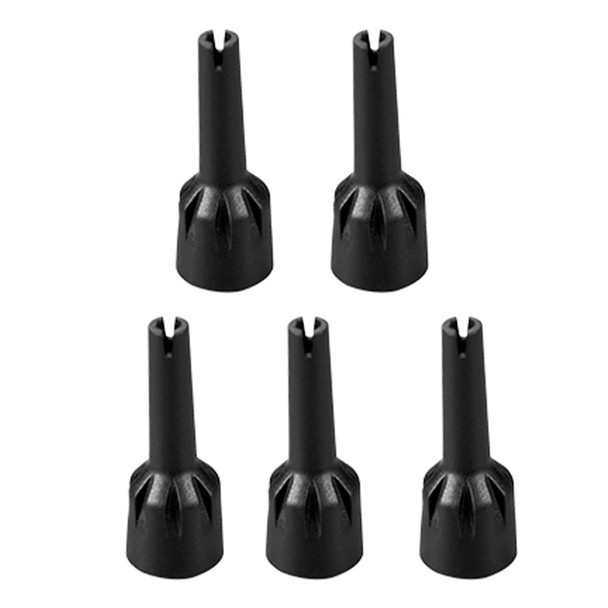

  • (5) Filter Tips and Gaskets
  • (1) Manual
  • (1) 1 Year Limited Warranty
