Description

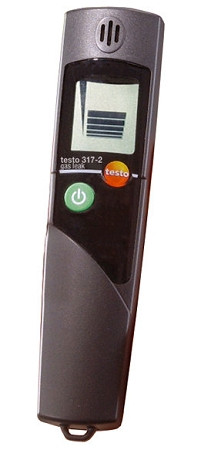

Testo 317-2 Gas Leak Stick
This handy gas detector for new users detects methane and propane.
Do you want to test quickly and efficiently whether there is a gas leak on gas pipe connections? Let the reliable testo 317-2 gas leak detector support you in your task.
Leaky gas pipes not only lead to higher gas consumption, but can also trigger explosions and fires in the worst case scenario. Because leaks are often difficult to detect with the naked eye (for example with small hairline cracks), gas measuring technology is useful when it comes to testing gas pipes.
Gas pipe connections can be safely and efficiently tested with the testo 317-2 gas leak detector. The handy gas detector for new users detects two types of gas, methane and propane. The gas concentration is shown via a bar display. In addition, the gas leak detector indicates increasing gas concentrations via an acoustic alarm. This measuring instrument also confirms audibly that it is ready for measuring.
Specs
Methane (CH4)
| Measuring range | 100 to 20000 ppm |
| Lower response threshold | 100 ppm |
| 1st alarm limit | 10000 ppm (20% LEL) |
Propane (C3H8)
| Measuring range | 50 to 10000 ppm |
| Lower response threshold | 50 ppm |
| 1st alarm limit | 5000 ppm (20% LEL) |
General technical data
| Reaction time | t90 < 5 sec |
| Operating temperature | 23° to 113°F / -5 to +45°C |
| Heat up time | 60 sec |
| Battery type | 2 AAA batteries 1.5 V (LR03) |
| Battery life | 4 h (LR03) |
| Display type | 8 segment trend display |
| Storage temperature | -4° to 122°F / -20 to +50°C |
| Weight | < 11 oz. / < 300 g |
Includes
- (1) Testo 317-2 Gas Leak Stick
- (1) Carrying bag with belt clip, wrist strap
- (2) Batteries
