Description

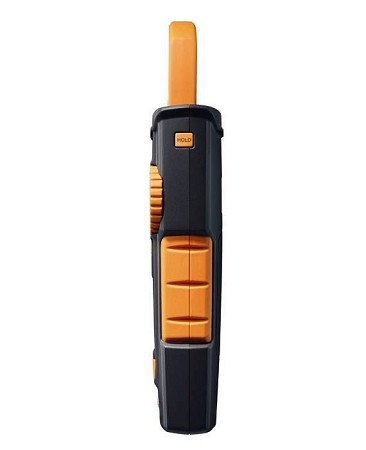

Testo 770-3 - testo 770-3 Hook-Clamp Digital Multimeter with TRMS Inrush, 600 A, Optional Temperature, Watts and Power Factor, and Bluetooth / App
Now Works with the Testo Smart Probes App and the measureQuick APP!
The 770-3 additionally includes real-time power measurements (Watts), Power Factor, and Bluetooth. The Testo App can be used for remote viewing, monitoring trending over time, and creating reports. The powerful app allows you to create custom reports that include photos, data, and graphs that can be saved or sent via email.
Features:
- Unique hook-on function separates and grabs wires without using your hands
- NOW works with the testo SmartProbes APP! (iOS and Android)
- Bluetooth with free Testo App for Smart Phone for remote viewing, monitoring trending over time, and creating reports
- Real-time power measurements (Watts) with simultaneous power factor indication
- µA for flame rod and can also measure temperature using an optional Type-K thermocouple adapter
Overview
The 770 series identifies the testing in-process and automatically selects the correct meter configuration which saves you time and increases your accuracy.
The 770 series of instruments are rich in the features HVAC techs need and want including TRMS, starting current, and frequency measurement.
Instrument Measurement Functions
- Diode test
- Continuity testing
- Display ligthing
- Hold
- MinMax
- Power Measurement
- Temperature measurement with adapter
- True RMS
- Inrush current measurement
- Bluetooth
- µA current measuring range
- Autom. measurement parameter detection
Specs
Measuring range
| Temperature - Type K TC | -4.0° to 932.0 °F / -20 to +500 °C |
| DC voltage | 1 to 600 V |
| AC voltage | 1 mV to 600 V |
| DC current | 0.1 µA to 600 A |
| AC current | 0.1 µA to 600 A |
| Resistance | 0.1 Ohm to 60.00 MOhm |
| Capcitance | 2 nF to 60.00 mF |
| Frequency | 0.01 Hz to 9999 kHz |
| Active Power | 0.1 W to 600 kW |
| Reactive Power | 0.1 to 600.0 kVA |
| Apparent Power | 0.1 VA to 600.0 kVA |
| Direct current DC Voltage | 0.1 W to 600.0 kW |
| Power Factor | -1.00 to +1.00 |
Accuracy
| Temperature - Type K TC | ±1.8 °F (32.0° to 212.0 °F) / ±1 °C (0 to +100 °C) |
| DC voltage | ± (0.8 % of mv + 3 Digit) |
| AC voltage | ± (1.0 % of mv + 3 Digit) |
| DC current | ± (2 % of mv + 5 Digit) |
| AC current | ± (2 % of mv + 5 Digit) |
| Resistance | ± (1.5 % of mv + 3 Digit) |
| Capcitance | ± (1.5 % of mv + 5 Digit) |
| Frequency | ± (1.0 % of mv + 1 Digit) |
| Active Power | ± (5 % of mv + 5 Digit) |
| Reactive Power | ± (10 % of mv + 5 Digit) |
| Apparent Power | 1± Digit |
| Direct current DC Voltage | ± 1 Digit |
| Power Factor | ± (10 % of mv + 5 Digit) |
Resolution
| Temperature - Type K TC | 0.2 °F / 0.2 °C |
| DC voltage | 1 mV |
| AC voltage | 1 mV |
| DC current | 0.1 µA |
| AC current | 0.1 µA |
| Resistance | 0.1 Ohm |
| Capcitance | 0.01 nF |
| Active Power | 0.1 W |
| Reactive Power | 0.1 var |
| Apparent Power | 0.1 VA |
| Direct current DC Voltage | 0.1 W |
| Power Factor | 0.01 |
General technical data
| Dimensions | 10 x 4 x 2 in. / 249 x 96 x 43 mm |
| Operating temperature | 14.0° to 122.0 °F / -10 to +50 °C |
| Storage temperature | 5.0° to 140.0 °F / -15 to +60 °C |
| Weight | 13 oz. / 378 g |
| Overvoltage Category | CAT IV 600V; CAT III 1000V |
| Authorizations | CSA; CE |
| Display (counts) | 6,000 |
Instrument Measurement Functions
- Diode test
- Continuity testing
- Display ligthing
- Hold
- MinMax
- Power Measurement
- Temperature measurement with adapter
- True RMS
- Inrush current measurement
- Bluetooth
- µA current measuring range
- Autom. measurement parameter detection
Includes
- 770-3 hook-clamp digital multimeter 600 A with TRMS, Inrush, and temperature and power measurement, and Bluetooth
- batteries
- 1 set of measuring cables
Testo 770 Series Datasheet
Software / App
