Description
An accessory head, not a stand alone meter

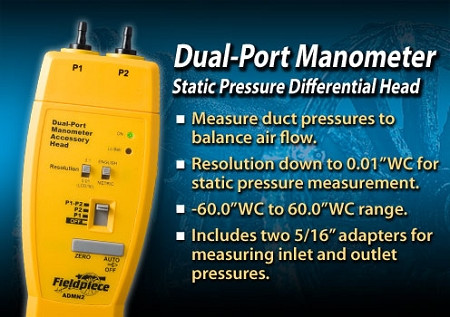

Fieldpiece Dual-Port Manometer Accessory ADMN2
The ADMN2 is a portable dual port manometer accessory head for use with our modular multimeters (DMMs) and instruments. Measures gas pressure, static pressure and pressure differential. The ADMN2 includes a zero adjust and the Auto Power-Off (APO) function to conserve battery life. Disable APO for data logging. The ADMN2 measures pressure between -60inWC and 60inWC (inches of water column) and -150.0 to 150.0 mBar. The ADMN2 also measures P1 or P2 pressure readings and calculates the difference between P1 and P2. Take static pressure measurements using the resolution mode of 0.01inWC or 0.01mBar.
The modular design of the ADMN2 gives it a distinct advantage over other dual-port manometers in the field. Remoting the ADMN2 with our detachable test leads allows you to measure pressure in hard to reach places. The included 3/16 to 5/16 adapters allow you to measure gas pressure on more makes and models of gas appliances as well.
Specs
- Pressure Ports: Two tube connectors for 4mm (3/16 inch) I.D. flexible tubing
- Units of Measure: inWC and mBar
- Accuracy: ±1.5% FS 0 to 50°C (32 to 122°F):
- Resolution: 0.1 or 0.01 depending on resolution selected (If 0.01 resolution is selected you must divide displayed value by 10 for actual value).
- Measurement Range: inWC: -60.0 to 60.0 mBar: -150.0 to 150.0
- Operating environment: 32ºF (0°C) to 122ºF (50°C), under 75%RH
- Compatible media: Dry, non-corrosive gases
- Battery: Single standard 9-volt battery, NEDA1604, JIS 006P, IEC 6F22.
- Battery Life: 100 hours with low battery LED indicator on accessory head.
- Over range: OL or -OL is displayed.
- Auto power off: 15 minutes
- Dimensions: 131mm(~5 3/16 )(H) x 67mm(~2 7/16 )(W) x 32mm(~1 1/4 )(D)
- Weight: approximately 154g (~1/2 pound) including battery

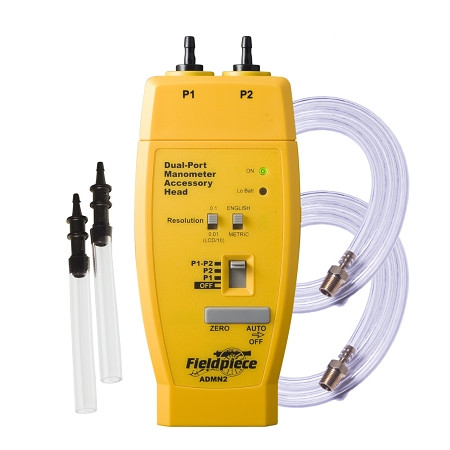

Includes
- Dual-Port Manometer Accessory - ADMN2
- 2 3/16 tubes with brass fittings
- 2 3/16 to 5/16 tube adapters - RMA316
- 9V battery (installed)
- Operator s manual
