Description

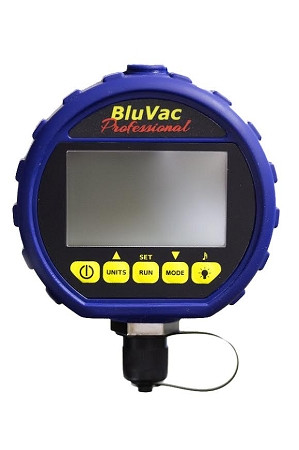

USED BluVac Professional Digital Vacuum Gauge
The AccuTools® BluVac Professional Digital Vacuum Gauge is the most accurate and precise vacuum instrument available today with patented technology that cannot be found anywhere else.
With the BluVac Pro, you can accurately measure vacuum pressure in Microns, Pascals, Millibar, Millitorr, mmHg, PSI, and inHg with resolution down to 0.1 micron. Ideal for the HVAC/R, Industrial, and Scientific professionals, the BluVac Pro is small, lightweight, rugged and easy to use. It is programmable, allowing for unattended evacuation and rise-time testing of HVAC/R systems of all sizes.
Key Features of the Pro model over other models: PISG display, Saturation Temperature display, Vacuum Rise Time Analyzer, minimum pass time analysis (15 min.), Evacuation Progress indicator, and Vacuum leak indicator in Microns per minute,Features:
- Large, high-visibility back-lit LCD display
- Measures Vacuum in Microns, Pascals, Millibar, Millitorr, mmHg, PSI, and inHg
- 0 to 25,000 Micron Range with 0.1 Micron Resolution less than 10,000 Microns
- “Analog” Vacuum Level Bar Graph
- Evacuation Progress Indicator shows Vacuum between 25,000 Microns and ATM
- Vacuum Leak Rate, Ambient Temperature, and Saturation Temperature Indicator
- Automatic Oil Sensor
- Measures Ambient and Saturation Temperature in Fahrenheit and Celsius to 0.1
- Built-in memory retains all previous settings
- Rugged, Compact Design with Protective Silicone Rubber Boot
- Long Battery Life
- Programmable Automatic Evacuation and Rise-Time Testing
- Calibration Self Test -- Can be field calibrated with no special equipment
- Ideal for HVAC/R Service, Industrial Use, and Scientific Measurement
Specs
| Range | 0 – 25,000 Microns (3333.1 Pa, 33.331 mBar, 25,000 mTorr, 25.000 mmHg) |
| Vacuum Accuracy | 5% of Reading +/- 5 Microns |
| Vacuum Resolution | 0.1 Micron (@ 0.0 to 9,999.9 Microns) 1 Micron (@ 10,000 to 25,000 Microns) |
| Programming | Evacuation Timer |
| Maximum Overpressure | 500 PSI |
| Temperature Accuracy | 0.2°F (0.1°C) |
| Temperature Resolution | 0.1° |
| Warm-up Time | Instant |
| Response Time | Instant |
| Power | One 9V Alkaline Battery |
| Battery Life | Up to 300 Hours |
| Operating Temperature | 10°F – 122°F (-12°C – 50°C) |
| Weight | 6 oz. (170g) including Battery and Swivel Hook |
| Dimensions | 3.5” x 3” x 1.25” (9cm x 7.5cm x 3cm) |
| Vacuum Port Fitting | ¼” Male Flare – Nickel Plated for Durability with Dust Cap |
| U.S. Patent Nos. | 8,504,313 and 8,768,633 |
Includes
- BluVac Professional Digital Vacuum Gauge
- Rubber Boot
- Battery (One 9V Alkaline)
