Appion Core & Tee Master Pack - Core Removal Tools, Core Control Tools, and Charging Tees

Appion Core & Tee Master Pack - Core Removal Tools, Core Control Tools, and Charging Tees

A Bundle of Vacuum-Rated Appion Refrigerant Service Tools

Kit Includes:

• (2) Appion MGAVCT 1/4" Standard Vacuum-Rated Valve Core Removal Tool
• (2) Appion MGAVCR 5/16" Valve Core Removal Tool for Mini Splits
• (2) Appion CCT14 Core Control Tool 1/4 in
• (2) Appion CCT516 Core Control Tool 5/16 in
• (2) Appion CTEE14 MegaSeal Low-Loss Charging T-Fitting - 1/4" FL
• (2) Appion CTEE516 MegaSeal Low-Loss Charging T-Fitting - 5/16" FL

---

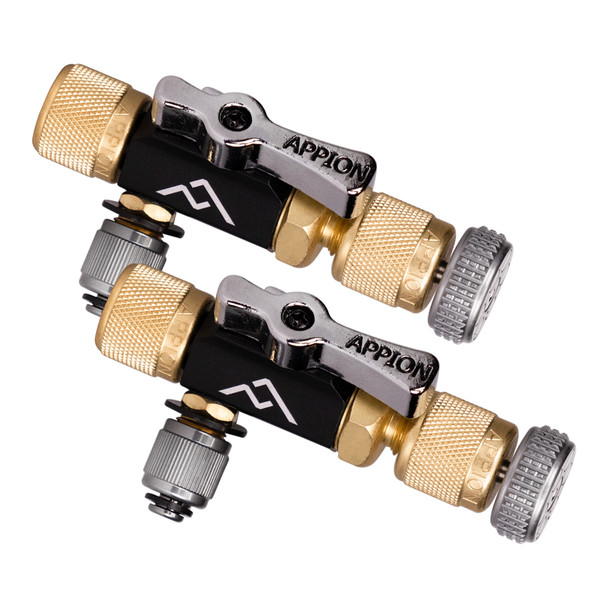

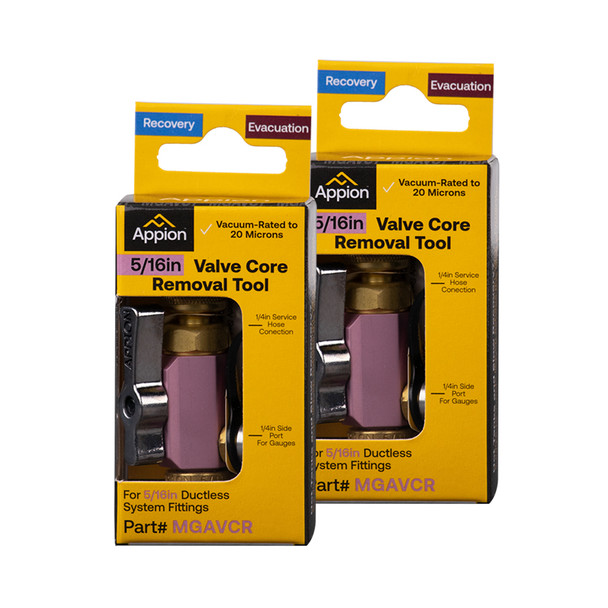

Appion MGAVCT & MGAVCR Vacuum-Rated Valve Core Removal Tools

Vacuum-Rated Valve Core Removal Tools for 1/4in Standard Fittings or 5/16in for Ductless Systems

Core tools are one of the most important components of a proper evacuation rig. Removing the cores allows for a full unrestricted flow through the service port significantly decreasing both evacuation and or recovery times. Standard core tools are only designed to operate under pressure to allow for the replacement of leaking valve cores without the removal of the refrigerant. Appion core tools are rated for both vacuum and pressure allowing for typical service as well as faster evacuations and recovery. A side port allows for isolation of the hoses for determining the level of vacuum during the evacuation process. Engineered for vacuum, Appion core tools are the best money can buy.

Features:

• Vacuum rated to 20 microns
• Easily remove access valve cores for full, unrestricted flow
• Double O-Ring ball valve seal for accurate "blank off" vacuum testing
• 1/4" side port for vacuum gauges
• Designed for high pressure refrigerants including R410a
• Magnetic Base - Never lose a stem again
• Adjustable Tip - Grab all cores with confidence

Why Remove Valve Cores?

Valve cores are designed to restrict flow and minimize refrigerant loss. Up to 90% of the access port can be restricted by a valve core. Removing them maximizes flow and can save hours on any job.

Hot Tanks and Slow Recovery?

A valve core acts like an expansion valve, turning liquid refrigerant into vapor and superheating the refrigerant. This causes the tank to heat up and leads to painfully slow recovery times.

Tired of Slow Evacuations?

Evacuating through a valve core and core depressor can reduce the potential flow of any vacuum pump to as little as 0.2CFM.

Are your Tools Rated for Vacuum and Pressure?

All Appion Valve Core Removal Tools are Vacuum-Rated to 20 microns and designed for high pressure refrigerants, such as R410A. This will give you the peace of mind that your tools aren't going to leak in a deep vacuum or during critical parts of the recovery process.

---

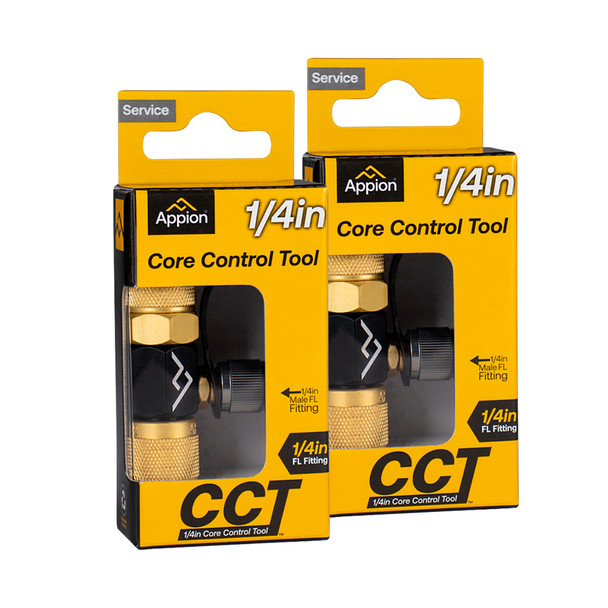

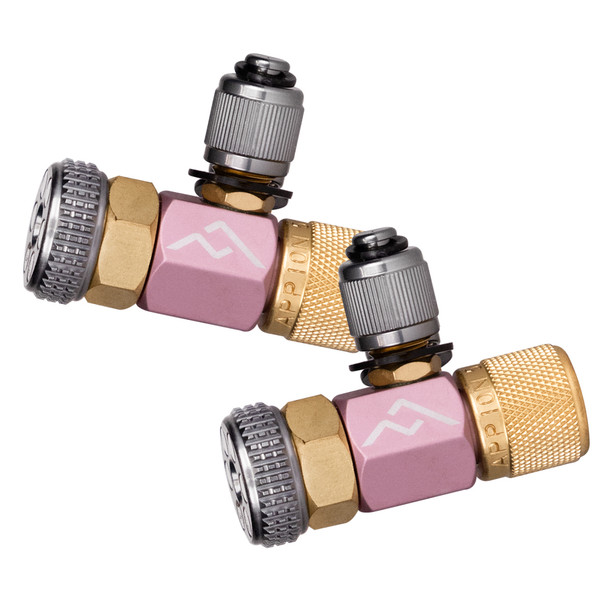

Appion CCT14 & CCT516 Core Control Tools

Vacuum-Rated Core Depressor Tools for 1/4in or 5/16in Schrader Valve Fittings

Gain maximum control when depressing a valve core! This low-loss fitting depresses valve cores with ultimate precision, perfect for accurately charging AC systems or servicing high-flow Schrader valves. Quickly connect a digital stub gauge for easy system diagnostics. The advanced back seat seal makes the core control tool perfect for gauge isolation, adding another layer of protection for your vacuum gauge.

Features

• Vacuum-Rated to 20 microns
• Made from aircraft-grade aluminum for maximum durability
• Double O-Ring design makes for unmatched reliability in high-pressure and a deep vacuum
• 1/4in side port for gauge or hose connection
• Designed for high pressure refrigerants including R410a

Why Use a Core Depressor Tool?

Core depressors are extremely useful when charging an A/C system, servicing systems with high-flow Schrader valves, isolating a vacuum gauge, and quickly diagnosing system pressures.

Are your Tools Rated for Vacuum and Pressure?

All Appion Core Control Tools are Vacuum-Rated to 20 microns and designed for high-pressure refrigerants, such as R410A. This will give you the peace of mind that your tools aren't going to leak in a deep vacuum or while pressurized.

---

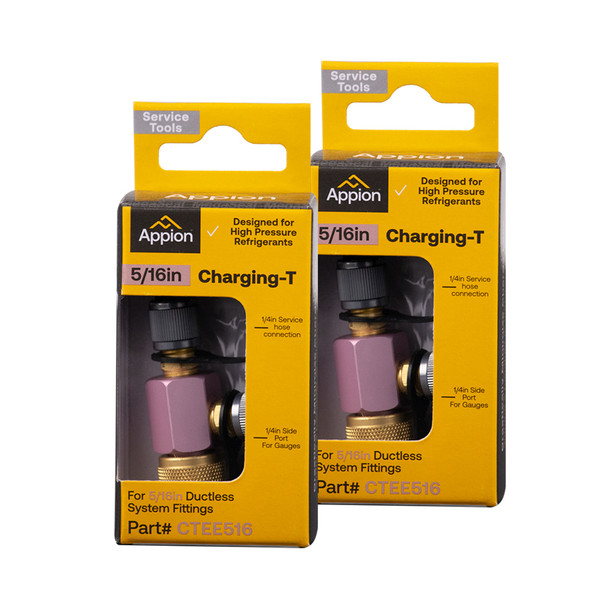

Appion CTEE14 & CTEE516 MegaSeal Low-Loss Charging Tee Fittings

Take Control of Charging a System with 1/4 in or 5/16in Service Fittings

Use the MegaSeal Low-Loss Charging-T to help meter refrigerant during the charging process. The side port allows for easy connection of a Digital Pressure/Temperature Gauge to monitor system pressures during the whole process.

Features:

• Drastically Minimize Charge Loss - Accurately charge AC/R systems without a manifold or unnecessary hoses
• Multifaceted Adapter for Easy System Diagnostics - Quickly check system pressure during or after the charging process
