Bacharach Intech Tune and Check Kit

Minimum Purchase:
1 unit
  • Bacharach Intech Tune and Check Kit
  • Bacharach Intech Tune and Check Kit
MSRP: $1,212.84
Price: $1,169.95
— You save $42.89

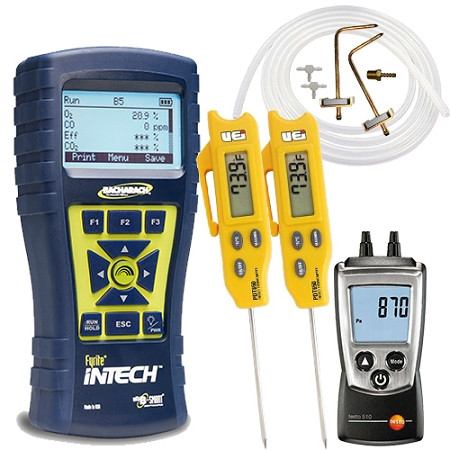

Bacharach Intech Tune and Check Kit

TruTech Tools is excited to introduce the Entry Level Tune and Check Kit for Combustion Analysis. This kit includes the necessary tools and instruments to perform a combustion test, a static pressure test, gas pressure test, as well as measure temperature rise.

Fyrite InTech Residential Combustion Analyzer

Based on the same technology as Bacharach’s Fyrite commercial units, the Fyrite InTech is an advanced, American-made, residential combustion analyzer that delivers quick, accurate measurement of oxygen, carbon monoxide, stack temperature and ambient temperature. It helps to reduce service call times by providing accurate, electronic test results instantly via intuitive, push-button operation and a menu of selectable fuel types. A new, high-contrast LCD graphic display, with backlighting, makes your results easy to see in any environment and can be output via an optional wireless printer and reporting kit.

Testo 510 Manometer

The Testo 510 replaces a tools box of low pressure measurement tools. With optional accessories, the 510 can be used for measuring manifold pressure, total external static pressure, pressure drops across coils and filters, air velocities (>800 FPM) with a Pitot tube. This differential pressure meter is ideally suitable for pressure measurements in the range 0 to 40"wc (or 9999 Pa). Testo 510's differential pressure measurement is temperature-compensated for accurate readings. Readings can be displayed in Pascal over the whole measurement range. Magnets at the back of the instrument enable hands-free operation, for instance, while adjusting gas regulators.

(2) UEi PDT650 Folding Pocket Thermometers

The PDT650 is a versatile and rugged pocket thermometer featuring an extended temperature range, built-in magnetic mount, folding temperature probe and a large easy-to-read display. The PDT650 provides reliable and accurate measurements in demanding environments. They are perfect for HVAC, refrigeration and food service areas, or anywhere temperature monitoring is critical.

TruTech Tools Static Pressure Test Kit

This accessory kit contains all of the standard and hard to find parts to use a compact manometer (eg testo 510 or FieldPiece SDMN5 or SMDN6) for gas and air static pressures, including tees for pressure switch testing.


Bacharach Intech Tune and Check Kit with Printer


O2: 0 to 20.9%
CO: 0 to 2000 ppm
Stack temperature: -4 to 1202 °F (-20 to 650 °C)
Ambient air temperature: -4 to 212 °F (-20 to 100 °C)

General Specifications:

Display: 2.7 in. (69 mm) monochrome LCD w/backlight
Power: 4x AA batteries
Run Time: 15 hours minimum (alkaline batteries)
Size (H x W x D): 8.0 x 3.6 x 2.3 in. (20.3 x 9.1 x 5.8 cm)
Weight: 1 lb. (0.45 kg) including batteries
*Fuels: Natural Gas, Oil #2, Oil #6, Propane, Kerosene and B5 (5% BioFuel in Oil #2)
Operating Conditions: 23 to 113 °F (-5 to 45 °C), 15 to 90% RH (non-condensing), 1 ATM ± 10%
Warm-up Time: 30 to 60 seconds
Memory: 10 locations
Communications: USB 2.0 (mini-B), IrDA
Approvals: CE mark, EN 50379-1 & -3
Warranty: 2 years (including sensors)

*Depending upon combustion equation setting (North American or Siegert) – see manual for details

Testo 510 Manometer

Differential Pressure

Measuring range: 0 to 40 InH2O / 0 to 100 hPa
Accuracy: ±0.01 InH2O (0 to 0.12 InH2O) / ±0.03 hPa (0 to 0.30 hPa)
±0.02 InH2O (0.12 to 0.40 InH2O) / ±0.05 hPa (0.31 to 1.00 hPa)
±(0.0 InH2O + 1.5 % of mv) (0.40 to 40 InH2O) / ±(0.1 hPa + 1.5 % of mv) (1.01 to 100 hPa)
Resolution: 0.00 InH2O / 0.01 hPa

General Technical Data

Storage temperature: -40.0° to 158.0 °F / -40 to +70 °C
Weight: 3 oz. (with batteries and protective cap) / 90 g (with batteries and protective cap)
Dimensions: 5 x 2 x 1 in. / 119 x 46 x 25 mm
Operating temperature: 32.0° to 122.0 °F / 0 to +50 °C
Protection class: IP40
Warranty: 2 years
Seceltable units: hPa, mbar, Pa, mmH2O, inH2O, inHg, mmHg, psi, m/s, fpm
Maximal static pressure: 7.3 psi / 500 mbar
Measuring rate: 0.5 sec
Battery type: 2 AAA batteries
Battery life: 50 h (average, without display illumination)

UEi PDT650 Folding Pocket Thermometer

Temperature Range: -58° to 572°F (-50 to +300°C)
Accuracy: +/- 1.8°F or +/- 1°C in the range of -22 to 302°F/ -30 to 150°C otherwise +/-4°F or +/-2°C
Resolution: 0.1° to 19.9° ~ +199.9° otherwise 1°
Update Rate: Approximately 1 second
Auto Power Off: Approximately 1 hour
Battery: UEi # AB13 (SR44W)


Bachrach Fyrite InTech Residential Combustion Analyzer

  • (1) Fyrite InTech Combustion Analyzer
  • (1) Standard Probe
  • (1) Durable soft-carry case
  • (1) User Manual
  • (1) Calibration certificate
  • (4) AA Batteries

Testo 510 Manometer

  • (1) Testo 510 Differential Pressure Manometer with magnets on back
  • (2) 39" (1m) Silicone Tubing
  • (1) Plastic Barbed Connector
  • (1) Case/pouch (black)

UEi PDT650 Folding Pocket Thermometer

  • (2) UEi PDT650 Folding Pocket Thermometers

  • (2) Static Pressure Tips
  • (1) 10' High Temp Silicone Hose
  • (2) 1/4" Tees
  • (1) Gas Pressure Valve 1/8 MPT x 1/8 Barb
