Fieldpiece Wireless SM482V Manifold Kit with Scale and Probes by TruTech Tools

SKU:
Fieldpiece-PROWMK-TTT
MPN:
Fieldpiece-PROWMK-TTT
Minimum Purchase:
1 unit
A2L Compatible?:
Yes

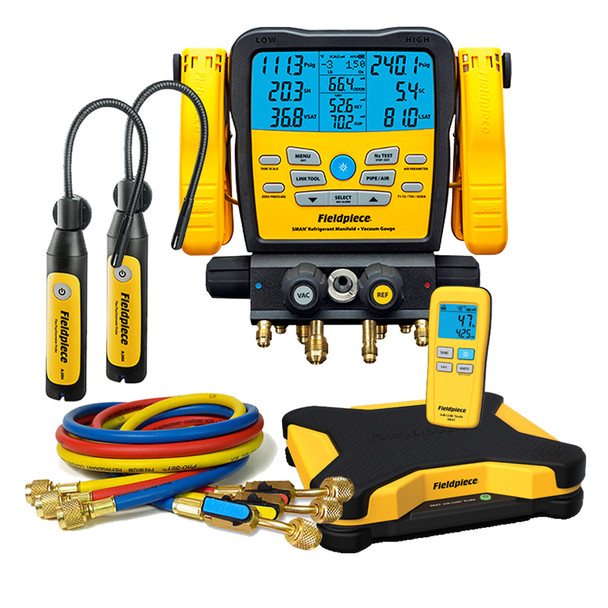

  • Fieldpiece Wireless SM482V Manifold Kit with Scale and Probes

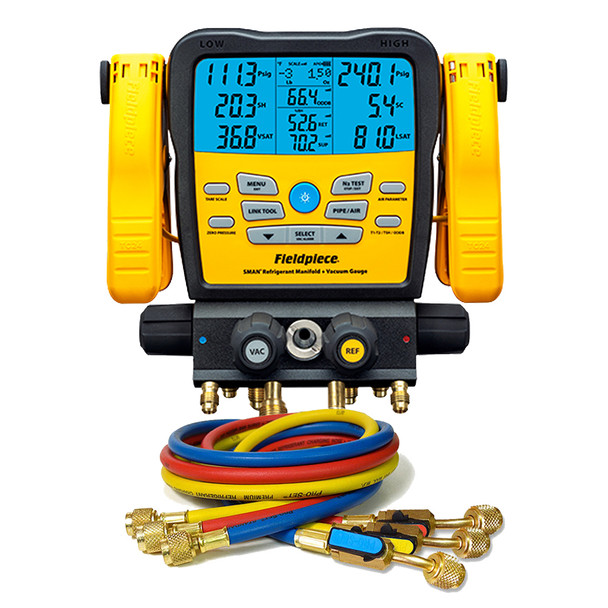

  • Fieldpiece Wireless SM482V Manifold Kit with Hoses
  • Fieldpiece SR47 Scale
  • Fieldpiece JL3RH Smart Probe
MSRP: $1,634.69
Price: $1,404.95
— You save $229.74

Description

Fieldpiece SM482V Digital Manifold Kit with Scale and Probes by TruTech Tools

Updated with the new Fieldpiece Wireless Scale SR47 and Digital Manifold SM482V

This kit includes:

  • (1) Fieldpiece SM482V 4-Port Digital Refrigerant Manifold
  • (1) CPS HP5E 3-Pack of 5' Premium Ball Valve Hoses
  • (2) Fieldpiece JL3RH Flex Psychrometer Probes
  • (1) Fieldpiece SR47 Wireless Electronic Refrigerant Scale 252lbs

Fieldpiece SM482V 4-Port Digital Refrigerant Manifold with Built-in Vacuum Gauge

Your HVAC/R Command Central. (Replacement for the SM480V)

Taking the pulse of an HVACR system requires experience, precision and reliability - everything you can count on with the NEW SMAN Refrigerant Manifolds. SMANs measure, calculate and help you diagnose with ease. View live pressure, temperature and vacuum readings on the large, 5-inch screen and connect your Job Link wireless tools for a full system view on the display.

Key Features & Benefits

  • Loaded with over 70 refrigerants, including A2Ls
  • Features an integrated vacuum gauge
  • 3/8" Vacuum port and block for fast evacuations
  • Made with heavy-duty casing, reinforced hook, protected thermocouple jacks and IP55 dust and water resistance
  • Designed with low profile, lay-flat hose ports for added durability
  • Includes hermetically sealed sight glass to see refrigerant flow and condition
  • Runs a temperature compensated nitrogen pressure test, with timer
  • Logs up to 168 hours of data
  • Serves as a central data hub for Job Link wireless tools and connects to the Job Link System App
  • Displays in 12 languages: English, Spanish, French, German, Italian, Portuguese, Dutch, Danish, Finnish, Swedish, Norwegian, Turkish
  • Protected by an easy-open, soft case
  • Optional, field replaceable accessories include ear caps (RSM82E) for a lower profile, and 5/16" hose parking mounts (RSM82H)

Designed for Performance
Knowledge, power and experience are packed into the SMAN Refrigerant 4-valve Manifolds. Years of feedback from A/C and refrigeration specialists is combined with Fieldpiece's laser focus on continuous improvement to bring you the toughest, most advanced digital refrigerant manifold on the market. With wireless capabilities, data logging, and tightness testing, the SM482V is built so you can do your job easier, faster and better.

Simply Strong
The SM482V 4-valve Manifold is simply strong. The heavy-duty casing, reinforced hook, IP55 dust and water resistance, impact resistant screen, protected thermocouple jacks, and hermetically sealed sight glass, all ensure the SMANs are ready to go to work.

Packed with Knowledge
The SM482V is designed to work the way you do with advanced features to streamline your job and provide the answers you need.

  • Measures
    • Line pressures, pipe temperatures, dry bulb temperature and system vacuum
  • Calculates
    • Superheat, subcooling, vapor saturation, liquid saturation and delta T
    • Live target delta T and target evaporator exit temperature with optional Job Link wireless tools
    • Temperature-compensated pressure differential for nitrogen pressure testing
  • Data Logs
    • Stores up to 9 jobs internally
    • Logs up to 168 continuous hours
  • Customizable
    • Select the measurements to display
    • Select wireless ON/OFF
    • Set high and low vacuum alarms


Fieldpiece SR47 Wireless Electronic Refrigerant Scale 252lbs

The New Heavyweight Champion

High capacity and rugged, the SR47 Wireless Refrigerant Scale combines best in class wireless electronics and rugged materials to perform at the high level you demand. The platform is made of thick aluminum to maintain accuracy over the life of the product. Integrated rubber pad and bumpers protect the platform from impacts and accommodate large tanks. Electronics are sealed to block moisture from rain and splashes. The dual magnetic folding back mounts firmly to a condenser or anything metallic for easy display viewing. View weights directly in the Fieldpiece Job Link system mobile app or with your Fieldpiece digital manifold. Log and document refrigerant use in-app to comply with new standards (EPA Section 608).

Key Features and Benefits

  • Large 13" platform with bumpers now integrated into pad to fit larger tanks
  • Strong enough to hold a maximum load of 252 lbs
  • Wireless remote control with LED backlight - can be stored inside the scale, and makes viewing data easy
  • Industry-leading accuracy: ±0.03%rdg + 0.25 oz
  • Lightweight, but mighty. Total weight of scale, case and remote is ~7 lbs
  • Water resistance can handle any job site
  • Quickly connects to the Job Link System App & SMAN with 1000' wireless range
  • Platform battery lasts 200+ hours - it can literally work all week if needed
  • Easy-to-use raised power button now located at base of scale

Portable Accuracy

The lightweight, but powerful Fieldpiece Wireless Refrigerant Scale, SR47's industry-leading accuracy ensures your systems get the proper refrigerant charge every time. It communicates seamlessly with the Fieldpiece Job Link® System App or SMAN, so you'll be able to read refrigerant levels anywhere on the job site while easily documenting and saving customer data. Also, the wireless remote stores right inside the scale and boasts an improved rubber gasket grip design, shorter length, slightly larger display and a redesigned magnet, plus a hefty 80-hour battery life.

Heavyweight Performance

The SR47 can accommodate even larger refrigerant tanks. Its 252-lbs maximum load capacity accommodates any charge or recovery requirement, while its oversized 13-inch platform design with unique integrated bumpers is engineered to fit larger refrigerant tanks. It also features the best platform battery life in the industry with a long life of up to 200+ hours, which minimizes jobsite downtime by removing the need to change or recharge batteries.

Works Everywhere

Because Fieldpiece knows technicians need lightweight tools that are durable enough to withstand wear and tear in field conditions, the Wireless Refrigerant Scale, SR47 meets both requirements. Its compact size and lightweight seven lbs portability make it easy to carry up a ladder and wet weather is no barrier to performance - SR47 is weather resistant with an IP64 rating for the remote and an IP54 rating for the platform for use in wet conditions. No matter where you're using the SR47, whether charging a residential system in a crawlspace or a on a commercial unit on a rooftop, you can easily transport this lightweight, mission-critical tool.


Fieldpiece JL3RH Flex Psychrometer Probe

New Higher Temperature Range! To see this new updated range, simply perform a firmware update on the probe via the Fieldpiece app.

The Fieldpiece JL3RH Job Link Flex Psychrometer Probe with Remote Data Logging sends air measurements directly to the Fieldpiece Job Link app up to 1000' away with firmware update. The JL3RH Job Link Flex Psychrometer Probe with Remote Data Logging measures %RH, dry bulb, wet bulb, dew point, and enthalpy at a register/grille, in the duct, or just walking around. Bend the flexible probe and slide the magnet to conveniently configure the JL3RH Job Link Flex Psychrometer Probe with Remote Data Logging to your situation. The rubberized protective housing of the JL3RH Job Link Flex Psychrometer Probe with Remote Data Logging is both ergonomic and rugged for daily use. Flip the switch and the Job Link app immediately knows which side of the system you're going to place your JL3RH Job Link Flex Psychrometer Probe with Remote Data Logging. Use the JL3RH Job Link Flex Psychrometer Probe with Remote Data Logging for its long wireless range, strong magnet, and flexible probe for quick and easy psychrometrics testing.

Features:

  • LED color indications
  • High or low side switch
  • Rapid Rail sensor advantage
  • Remote data logging
  • Auto power off (APO)
* All JL3RH's can be upgraded through a firmware update to handle extreme duct temps from -40°F to 250°F thru the Job Link App - Unsure how to update? Just open the Fieldpiece Job Link App and you will be prompted to update your probes.

Download the Fieldpiece Job Link App for your Android or iOS devices today!

Google Play Store Apple App Store

One System Does it All.

Streamline and simplify your call even further with the Job Link System App. See your measurements up to 1000' away on your mobile device. Document your work and provide professional reports, including refrigerant recovery and charge weight, by simply connecting to the Job Link System app. The Job Link System works with all Fieldpiece wireless tools — from clamps to probes to digital manifolds, and integrates all of their functionality seamlessly. Free and Pro plans available.

App features available for FREE

  • Live Measurements
  • Advanced Calculations
  • System Diagnostics
  • System Reports (Email & Print)
  • No Internet/Cell Connection Needed

Specs

SM482V Specs
Ports (3) 1/4" for suction line, liquid line and refrigerant recovery/charging; (1) 3/8" vacuum
Display LCD (5 inches diagonal)
Backlight Blue (adjustable duration)
Low Battery Indication Displayed when the battery voltage drops below the operating level
Auto Power Off 30 minutes of inactivity (adjustable)
Battery Type (6) AA alkaline
Battery Life 405 hours (with backlight and wireless OFF)
Radio Frequency 2.4 GHz
Wireless Range 1000 feet (305 meters) line of sight, distance decreases with obstructions
Data Port USB-C (for extracting data logs or updating firmware)
Maximum Manifold Pressure 870 Psig (6000 kPa)
Vacuum 50 to 9999 microns
Temperature Measurement Range -50° to 257° F (-46° to 125° C)
Operating Environment -10°C to 50°C (14°F to 122°F) at <75% RH
Storage Environment -20°C to 60°C (-4°F to 140°F) at <80% RH (with battery removed)
Dimensions 8.75" W x 8.5" H x 3.75" D
Weight 4.6 lbs (2.1 kg)
Water Resistant Tested to IP55
SR47 Specs
Over range "OL" is displayed
Maximum load 252.00 lbs (114.00 kg)
Max tank base diameter 13 inches (33 cm)
Auto power off 30 minutes of inactivity (no change in weight or buttons pressed, can be disabled)
Backlight Blue, turns off in 2 minutes if no buttons are pressed
Accuracy ±0.03%rdg + 0.25 oz (10 g), 0 to 66 lbs (0 to 30 kg)
±0.05%rdg + 0.25 oz (10 g), 66 to 252 lbs (30 to 114 kg)
Resolution and units lb oz (0.25 oz), lb (0.1 lb), oz (0.3 oz)
kg g (10 g), kg (0.1 kg), g (10 g)
Temperature coefficient 0.1 x (specified accuracy) per °F
Wireless range 1000 feet (305 meters) line of sight.
Obstructions affect distance.
Radio frequency 2.4 GHz
Battery type Remote display: 9V
Platform: 6 x AA
Battery life Remote display: 65 hours typical alkaline (backlight off)
Platform: 200 hours typical alkaline
Operating environment 32°F to 122°F (0°C to 50°C) at <75% RH
Storage temperature -4°F to 140°F (-20°C to 60°C), 0 to 80% RH (with battery removed)
Weight Platform with battery 7 lbs (3190 g)
Remote with battery 0.49 lbs (220 g)
Water resistant IP54 (Platform), IP64 (Remote)
JL3RH Specs
Minimum Device Requirement: BLE 4.0 devices running iOS 7.0 or Android 5.0
Battery Type: 2 x AAA, NEDA 24A, IEC LR03
Battery Life: 150 hours typical alkaline (LED blinks red when battery replacement is needed)
Auto Power Off: 2 hours (APO can be disabled)
Wireless Range: 1000 feet (requires firmware update in app), 350 feet (107 meters) line of sight (obstructions affect distance)
Radio Frequency: 2.4 GHz
Operating Environment: 32°F to 122°F (0°C to 50°C) at <75% RH
Storage Temperature: -4°F to 140°F (-20°C to 60°C), 0 to 80% RH (with batteries removed)
Temperature Coefficient: 0.1 x (specified accuracy) per 0.6°F (32°F to 64°F, 82°F to 122°F), per 1°C (0°C to 18°C, 28°C to 50°C)
Weight: 0.33 lbs (150 g)
Flexible Probe: 0.36" (9mm) diameter; 9.25" (235mm) length
Relative Humidity (%RH): Sensor Type: Capacitance polymer film
Hysteresis: ±1%RH typical (Excursion of 10% to 90% to 10%RH)
Measurement Range: 0%RH to 100%RH
Accuracy: (At 73.4°F (23°C)) ±2.5% (10%RH to 90%RH); ±(5%) <10%RH,>90%RH
Response Time: 60 seconds typical for 90% of total range
Temperature: Sensor Type: Precision thermistor
Measurement Range: -40°F to 250°F (-40°C to 121°C)
Accuracy: ±(1°F) 32°F to 113°F, ±(0.5°C) 0°C to 45°C; ±(2°F) -4°F to 32°F, 113°F to 140°F, ±(1°C) -20°C to 0°C, 45°C to 60°C

Includes

  • (1) Fieldpiece SM482V 4-Port Digital Refrigerant Manifold
  • (1) CPS HP5E 3-Pack of 5' Premium Ball Valve Hoses
  • (2) Fieldpiece JL3RH Flex Psychrometer Probes
  • (1) Fieldpiece SR47 Wireless Electronic Refrigerant Scale 252lbs
