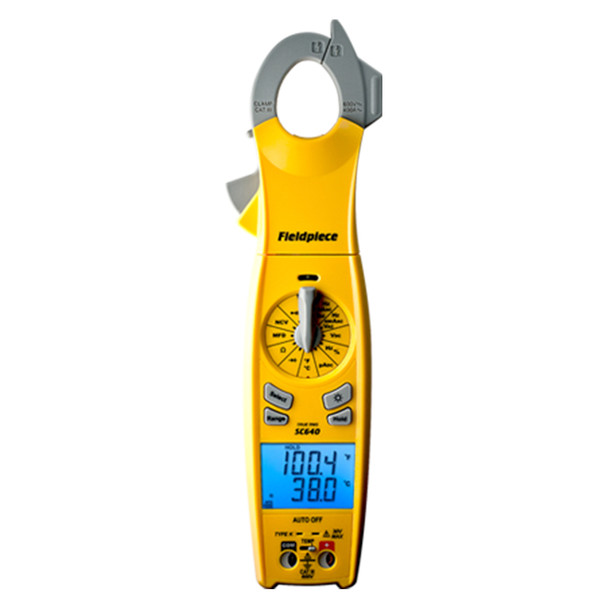

Fieldpiece SC640 True RMS HVAC Clamp Meter with Swivel Head, Inrush, 400A
Rotating Swivel Clamp Head for Easy Viewing at Any Angle
The SC640 is a fully loaded HVAC clamp meter designed for everyday electrical and thermal troubleshooting. It features a swivel clamp head for easy viewing, built-in test lead storage, a magnetic strap, and a backlit dial for working in low-light conditions. The SC640 provides the core measurements HVAC/R technicians rely on, including True RMS voltage and current, inrush current, capacitance, temperature, duty cycle, and microamps DC for flame sensor testing.
Key Features & Benefits
- True RMS AC/DC voltage and current measurements
- InRush current mode for capturing starting amps
- Swivel clamp head for easy viewing at any angle
- Dual display for simultaneous readings
- Temperature measurement (°F / °C)
- Capacitance, duty cycle, and frequency (via leads and clamp)
- Microamps DC for flame sensor testing
- Non-contact voltage (NCV) detection
- Resistance up to 50MΩ
- Continuity and diode testing
- Magnetic strap for hands-free use
- Built-in probe storage and clamp probe holder
- Backlit display, dial backlight, and clamp jaw work light
- Low battery indicator and high-voltage warning
Specs
| Display: | 5000 count dual display |
| Backlight: | 60 second duration with auto-off. Blue color |
| Overrange: | (OL) or (-OL) is displayed |
| Measurement rate: | 3.3 times per second, nominal |
| Zero: | Automatic |
| Operating environment: | 32°F to 122°F (0°C to 50°C) at <70% relative humidity |
| Storage temperature: | -4°F to 140°F (-20°C to 60°C), 0 to 80% RH (with battery removed) |
| Accuracy: | Stated accuracy @ 73°F ±9°F (23°C ±5°C), <75%RH |
| Temperature coefficient: | 0.1 x (specified accuracy) per °C [0°C to 19°C (32°F to 66°F), 28°C to 50° C(82°F to 122°F)] |
| APO (Auto Power Off): | Approx. 30 minutes |
| Power: | Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22 |
| Battery life: | 200 hours typical alkaline (SC620); 100 hours typical alkaline (SC640) |
| Low battery indication: | Battery icon blinks and "LO.bt" is displayed when the battery voltage drops below the operating level |
| Dimensions: | 287.5mm(H) x 79.5mm(W) x 50.0mm(D) |
| Weight: | Approx. 450g including battery |
| Altitude: | Up to 6562 ft (2000m) |
| Overload protection: | 600 VDC or 600VAC rms unless otherwise stated |
| Test leads: | Use UL listed test leads that comply to UL61010-031 rated CATIII 600V or above. Included test leads are gold-plated and have removable safety caps. |
Includes
- (1) SC640 Loaded Clamp Meter
- (1) ADLS2 Deluxe Silicone Lead Set
- (1) ATB1 Wrap Tab Type K Thermocouple
- (1) ASA2 Short Alligator Lead Extensions
- (1) Velcro Strap
- (1) 9V Battery
- (1) ANC7 Padded Case
