Description

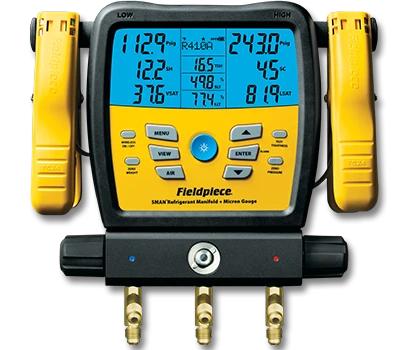

Fieldpiece SM380V Digital Manifold with Micron Gauge
The Heart of Your Job
Designed for Performance
Knowledge, power and experience are packed into the newly designed SMAN Refrigerant Manifolds. Years of feedback from A/C and refrigeration specialists is combined with Fieldpiece's laser focus on continuous improvement to bring you the toughest, most advanced digital refrigerant manifold on the market.
From the extremely rugged overmold casing, reinforced hook, and hermetically sealed sight glass, to the wireless capabilities, data logging, and tightness test, the SM380V and SM480V are built so you can do your job easier, faster and better.
Simply Strong
The new SMANs are simply strong. The heavy duty casing, reinforced hook, water resistant, impact resistant screen, strategically placed thermocouple ports, and hermetically sealed sight glass, all ensure the SMANs are ready to withstand the rigors of field use.
Packed with Knowledge
The SM380V and SM480V are designed to work the way you do with advanced features to streamline your job and provide your customers with the answers they need
Optional Accessories
Add Job Link Tools to your arsenal and get live readings directly on the SMAN manifold screen from the Job Link Psychrometers (JL3RH), Job Link Pipe Clamps (JL3PC), and SRS3 Refrigerant Scale.
Data Logging
- Stores up to 9 jobs internally
- Easy download via USB port
- Displays % free storage space before logging begins
- Logs up to 7 days (168 continuous hours)
Tightness Test
- Check for leaks after repairs or installations
- View pressure differential over time
- Timer tracks duration of test
- Temperature compensated with SL temp to avoid false positives
Customizable
- Adjust auto power off duration
- Adjust back light duration
- Set high and low vacuum alarms
- Select each unit of measurement individually
View Wireless Probe and Scale Readings on SM380V and SM480V
Pipe Temperatures
Place pipe clamps in the perfect location and view instantaneous readings on your screen.
Refrigerant Usage
Monitor and record live refrigerant usage for precise recovery, charging and documentation.
Indoor Air Temperatures
View live air measurements and calculations on your SMAN while making adjustments.
Increase Professionalism with Job Link System App
Streamline and simplify your call even further with the Job Link System App. See your measurements up to 1000' away on your mobile device. Document your work and provide professional reports, including refrigerant weight usage, by simply connecting to the Job Link System app. Helps to reduce call-backs and increase profits.
- View measurements on SMAN and/or in Job Link App
- Monitor and record refrigerant weight
- Direct 1000' wireless range (no transmitter needed)
Specs
| General | |
|---|---|
| Display: | LCD (5 inches diagonal) |
| Backlight: | Blue (adjustable duration) |
| Over Range Display: | OL for pressure, - - - - for temperature |
| Auto Power Off: | 30 minutes of inactivity (adjustable) |
| Maximum Manifold Pressure: | 800 Psig (5500 kPa) |
| Battery Type: | 6 x AA alkaline |
| Battery Life: | 350 hours typical (without vacuum, backlight, and wireless) |
| Radio Frequency: | 2.4 GHz |
| Wireless Range: | 1000 feet (106 meters) line of sight Distance decreases through obstructions |
| Data Port: | Micro USB (for extracting logged data or updating firmware) |
| Operating Environment: | 32°F to 122°F (0°C to 50°C) at <75% RH |
| Storage Environment: | -4°F to 140°F (-20°C to 60°C) at <80% RH (With battery removed) |
| Temperature Coefficient: | 0.1 x (specified accuracy) per °C (0°C to 18°C, 28°C to 50°??C) 0.1 x per 1.8°F (32°F to 64°F, 82°F to 122°F) |
| Weight: | 4.03 lbs (1.83 kg) |
| Water Resistant: | Designed to IP54 |
| Refrigerants: | R11, R12, R13, R22, R23,, R32, R113, R114, R115, R116, R123, R124, R125, R134A, R236FA, R245FA, R290, R401A, R401B, R402A, R402B, R403B, R404A, R406A, R407A, R407C, R407F, R408A, R409A, R410A, R413A, R414A, R414B, R416A, R417A, R417C, R420A, R421A, R421B, R422A, R422B, R422C, R422D, R424A, R427A R428A R434A R438A R448A R449A R450A R452A, R452B, R453A, R454B, R458A, R500, R501, R502, R503, R507A, R508B, R513A, R600, R600A, R601, R601A, R744, R1233ZD, R1234YF, R1234ZE New refrigerants are continually being added so be sure to visit Fieldpiece.com for the latest firmware |
| Pressure | |
| Sensor Type: | Absolute pressure sensors |
| Port Type: | (3) 1/4" standard NPT male flare fittings |
| Pressure Range and Units: | 580 Psig (English), 40.00 Bar (Metric), 4.000 MPa (Metric), and 4000 kPa (Metric) |
| Negative Pressure Range and Units: | 29 inHg (English), 74 cmHg (Metric) |
| Resolution: | 0.1 Psig; 0.01 Bar; 0.001 MPa; 1 kPa; 0.1 inHg; 1 cmHg |
| Negative Pressure Accuracy: | 29 inHg to O inHg: ±0.2 inHg; 74 cmHg to O cmHg: ± 1 cm Hg |
| Pressure Accuracy: | - 0 Psig to 200 Psig: ± 1 Psig; - 200 Psig to 580 Psig: ±(0.3% of reading + 1 Psig); - 0 Bar to 13.78 Bar ±0.07 Bar; - 13.78 Bar to 40.00 Bar: ±(0.3% of reading+ 0.07 Bar); - 0 MPa to 1.378 MPa: ±0.007 MPa; - 1.378 MPa to 4.000 MPa: ±(0.3% of reading+ 0.007 MPa); - 0 kPa to 1378 kPa: ±7 kPa; - 1378 kPa to 4000 kPa: ±(0.3% of reading+ 7 kPa |
| Temperature | |
| Sensor Type: | Type K thermocouple (nickel chromium/nickel aluminum) |
| Jack Type: | (3) Type K thermocouple |
| Range: | -50°F to 257°F (-46°C to 125°C) limited by the thermocouple specification. Display range is -95°F to 999.9°F (-70°C to 537°C |
| Resolution: | 0.1°F (0.1°C) |
| Accuracy: | Shown accuracies are after field calibration. ±(1.0°F) -95°F to 200°F, ±(2.0°F) 200°F to 999.9°F ±(0.5°C) -70°C to 93°C, ±(1.0°C) 93°C to 537.0°C |
| Deep Vacuum | |
| Sensor Type: | Thermistor |
| Port Type: | (3) 1/4" standard NPT male flare fittings (SM380V) (1) 3/8" and (3) 1/4" standard NPT male flare fittings (SM480V) |
| Range and Units: | - 50 to 9999 microns of mercury (English) - 6 to 1330 Pascals (Metric) - 0.06 to 13.3 mBar (Metric) - 50 to 9999 mTorr (Metric) - 0.05 to 10 Torr (Metric, equivalent to mmHg) |
| Best Resolution: | - 1 micron of mercury (below 2000 microns) - 1 Pascal (below 250 Pascals) - 0.001 mBar (below 2.5 mBar) - 1 mTorr (below 2000 mTorr) - 0.001 Torr (below 2.5 Torr) |
| Accuracy @ 77°F (25°C): | ±(5% of reading + 5 microns of mercury) ±(5% of reading + 1 Pascal) ±(5% of reading + 0.01 mBarr) ±(5% of reading + 5 mTorr) ±(5% of reading + 0.005 Torr) |
Includes
- (1) Fieldpiece SM380V Digital Manifold with Micron Gauge
- (2) TC24 Type K Pipe Clamp Thermocouples
- (1) ATA1 Type K Bead Thermocouple w/Clip
- (1) ANC11 Padded Drawstring Case
Videos
Fieldpiece SM380V Manual
Software / App
Download the Fieldpiece Job Link App for your Android or iOS devices
The measureQuick App supercharges a variety of BlueTooth smart tools with rich diagnostics, data logging and reporting capabilities. Now you can see intuitive visuals informing about each job, piece of equipment, or system all in one place!
Download the measureQuick App for your Android or iOS devices
