Fieldpiece Wireless SM380V Manifold Kit with Scale and Probes by TruTech Tools

SKU:
Fieldpiece-WMK-TTT
MPN:
Fieldpiece-WMK-TTT
Minimum Purchase:
1 unit
A2L Compatible?:
Yes
  • Fieldpiece Wireless SM380V Manifold Kit with Scale and Probes by TruTech Tools
  • Fieldpiece Wireless SM380V Manifold Kit with Scale and Probes by TruTech Tools
  • Fieldpiece Wireless SM380V Manifold Kit with Scale and Probes by TruTech Tools
  • Fieldpiece Wireless SM380V Manifold Kit with Scale and Probes by TruTech Tools
MSRP: $1,449.69
Price: $1,229.95
— You save $219.74

Description

Fieldpiece Wireless SM380V Manifold Kit with Scale and Probes by TruTech Tools

Updated with the new Fieldpiece Wireless Scale SR47

This kit includes:

  • (1) Fieldpiece SM380V Digital Manifold with Micron Gauge
  • (1) CPS HP5E 3-Pack of 5' Premium Ball Valve Hoses
  • (2) Fieldpiece JL3RH Flex Psychrometer Probes
  • (1) Fieldpiece SR47 Wireless Electronic Refrigerant Scale 252lbs

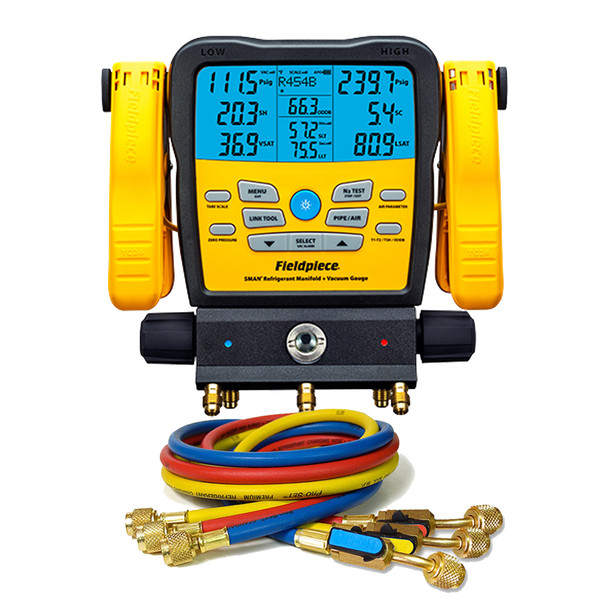

Fieldpiece SM380V Digital Manifold with Micron Gauge

The Heart of your Job

Designed for Performance

Knowledge, power and experience are packed into the newly designed SMAN Refrigerant Manifolds. Years of feedback from A/C and refrigeration specialists is combined with Fieldpiece's laser focus on continuous improvement to bring you the toughest, most advanced digital refrigerant manifold on the market.

From the extremely rugged overmold casing, reinforced hook, and hermetically sealed sight glass, to the wireless capabilities, data logging, and tightness test, the SM380V and SM480V are built so you can do your job easier, faster and better.

Simply Strong

The new SMANs are simply strong. The heavy duty casing, reinforced hook, water resistant, impact resistant screen, strategically placed thermocouple ports, and hermetically sealed sight glass, all ensure the SMANs are ready to withstand the rigors of field use.

Packed with Knowledge

The SM380V and SM480V are designed to work the way you do with advanced features to streamline your job and provide your customers with the answers they need

Data Logging

  • Stores up to 9 jobs internally
  • Easy download via USB port
  • Displays % free storage space before logging begins
  • Logs up to 7 days (168 continuous hours)

Tightness Test

  • Check for leaks after repairs or installations
  • View pressure differential over time
  • Timer tracks duration of test
  • Temperature compensated with SL temp to avoid false positives

Customizable

  • Adjust auto power off duration
  • Adjust back light duration
  • Set high and low vacuum alarms
  • Select each unit of measurement individually

View Wireless Probe and Scale Readings on SM380V and SM480V

Pipe Temperatures

Place pipe clamps in the perfect location and view instantaneous readings on your screen.

Refrigerant Usage

Monitor and record live refrigerant usage for precise recovery, charging and documentation.

Indoor Air Temperatures

View live air measurements and calculations on your SMAN while making adjustments.


Fieldpiece SR47 Wireless Electronic Refrigerant Scale 252lbs

The New Heavyweight Champion

High capacity and rugged, the SR47 Wireless Refrigerant Scale combines best in class wireless electronics and rugged materials to perform at the high level you demand. The platform is made of thick aluminum to maintain accuracy over the life of the product. Integrated rubber pad and bumpers protect the platform from impacts and accommodate large tanks. Electronics are sealed to block moisture from rain and splashes. The dual magnetic folding back mounts firmly to a condenser or anything metallic for easy display viewing. View weights directly in the Fieldpiece Job Link system mobile app or with your Fieldpiece digital manifold. Log and document refrigerant use in-app to comply with new standards (EPA Section 608).

Key Features and Benefits

  • Large 13" platform with bumpers now integrated into pad to fit larger tanks
  • Strong enough to hold a maximum load of 252 lbs
  • Wireless remote control with LED backlight - can be stored inside the scale, and makes viewing data easy
  • Industry-leading accuracy: ±0.03%rdg + 0.25 oz
  • Lightweight, but mighty. Total weight of scale, case and remote is ~7 lbs
  • Water resistance can handle any job site
  • Quickly connects to the Job Link System App & SMAN with 1000' wireless range
  • Platform battery lasts 200+ hours - it can literally work all week if needed
  • Easy-to-use raised power button now located at base of scale

Portable Accuracy

The lightweight, but powerful Fieldpiece Wireless Refrigerant Scale, SR47's industry-leading accuracy ensures your systems get the proper refrigerant charge every time. It communicates seamlessly with the Fieldpiece Job Link® System App or SMAN, so you'll be able to read refrigerant levels anywhere on the job site while easily documenting and saving customer data. Also, the wireless remote stores right inside the scale and boasts an improved rubber gasket grip design, shorter length, slightly larger display and a redesigned magnet, plus a hefty 80-hour battery life.

Heavyweight Performance

The SR47 can accommodate even larger refrigerant tanks. Its 252-lbs maximum load capacity accommodates any charge or recovery requirement, while its oversized 13-inch platform design with unique integrated bumpers is engineered to fit larger refrigerant tanks. It also features the best platform battery life in the industry with a long life of up to 200+ hours, which minimizes jobsite downtime by removing the need to change or recharge batteries.

Works Everywhere

Because Fieldpiece knows technicians need lightweight tools that are durable enough to withstand wear and tear in field conditions, the Wireless Refrigerant Scale, SR47 meets both requirements. Its compact size and lightweight seven lbs portability make it easy to carry up a ladder and wet weather is no barrier to performance - SR47 is weather resistant with an IP64 rating for the remote and an IP54 rating for the platform for use in wet conditions. No matter where you're using the SR47, whether charging a residential system in a crawlspace or a on a commercial unit on a rooftop, you can easily transport this lightweight, mission-critical tool.


Fieldpiece JL3RH Flex Psychrometer Probe

New Higher Temperature Range! To see this new updated range, simply perform a firmware update on the probe via the Fieldpiece app.

The Fieldpiece JL3RH Job Link Flex Psychrometer Probe with Remote Data Logging sends air measurements directly to the Fieldpiece Job Link app up to 1000' away with firmware update. The JL3RH Job Link Flex Psychrometer Probe with Remote Data Logging measures %RH, dry bulb, wet bulb, dew point, and enthalpy at a register/grille, in the duct, or just walking around. Bend the flexible probe and slide the magnet to conveniently configure the JL3RH Job Link Flex Psychrometer Probe with Remote Data Logging to your situation. The rubberized protective housing of the JL3RH Job Link Flex Psychrometer Probe with Remote Data Logging is both ergonomic and rugged for daily use. Flip the switch and the Job Link app immediately knows which side of the system you're going to place your JL3RH Job Link Flex Psychrometer Probe with Remote Data Logging. Use the JL3RH Job Link Flex Psychrometer Probe with Remote Data Logging for its long wireless range, strong magnet, and flexible probe for quick and easy psychrometrics testing.

Features:

  • LED color indications
  • High or low side switch
  • Rapid Rail sensor advantage
  • Remote data logging
  • Auto power off (APO)
* All JL3RH's can be upgraded through a firmware update to handle extreme duct temps from -40°F to 250°F thru the Job Link App - Unsure how to update? Just open the Fieldpiece Job Link App and you will be prompted to update your probes.

Download the Fieldpiece Job Link App for your Android or iOS devices

Google Play Google Play

Link Your Tools. Link Your Jobs
Job Link. More than just measurements.

The Job Link System works with all Fieldpiece wireless tools from clamps to probes to digital manifolds, and integrates all of their functionality seamlessly. Job Link increases your level of professionalism on every job and in the back office by allowing you to not only eliminate your clipboard but also virtually adding another technician to the job because you can be in more than one place at a time. Reduce callbacks and increase efficiencies with reliable and trusted system measurements, diagnostics, and reporting!

Specs

SM380V General
Display: LCD (5 inches diagonal)
Backlight: Blue (adjustable duration)
Over Range Display: OL for pressure, - - - - for temperature
Auto Power Off: 30 minutes of inactivity (adjustable)
Maximum Manifold Pressure: 800 Psig (5500 kPa)
Battery Type: 6 x AA alkaline
Battery Life: 350 hours typical (without vacuum, backlight, and wireless)
Radio Frequency: 2.4 GHz
Wireless Range: 1000 feet (305 meters) line of sight
Distance decreases through obstructions
Data Port: Micro USB (for extracting logged data or updating firmware)
Operating Environment: 32°F to 122°F (0°C to 50°C) at <75% RH
Storage Environment: -4°F to 140°F (-20°C to 60°C) at <80% RH
(With battery removed)
Temperature Coefficient: 0.1 x (specified accuracy) per °C (0°C to 18°C, 28°C to 50°??C)
0.1 x per 1.8°F (32°F to 64°F, 82°F to 122°F)
Weight: 4.03 lbs (1.83 kg)
Water Resistant: Designed to IP54
Refrigerants: R11, R12, R13, R22, R23,, R32, R113, R114, R115, R116, R123, R124, R125, R134A, R236FA, R245FA, R290, R401A, R401B, R402A, R402B, R403B, R404A, R406A, R407A, R407C, R407F, R408A, R409A, R410A, R413A, R414A, R414B, R416A, R417A, R417C, R420A, R421A, R421B, R422A, R422B, R422C, R422D, R424A, R427A R428A R434A R438A R448A R449A R450A R452A, R452B, R453A, R454B, R458A, R500, R501, R502, R503, R507A, R508B, R513A, R600, R600A, R601, R601A, R744, R1233ZD, R1234YF, R1234ZE
New refrigerants are continually being added so be sure to visit Fieldpiece.com for the latest firmware
SM380V Pressure
Sensor Type: Absolute pressure sensors
Port Type: (3) 1/4" standard NPT male flare fittings
Pressure Range and Units: 580 Psig (English), 40.00 Bar (Metric),
4.000 MPa (Metric), and 4000 kPa (Metric)
Negative Pressure Range and Units: 29 inHg (English), 74 cmHg (Metric)
Resolution: 0.1 Psig; 0.01 Bar; 0.001 MPa; 1 kPa; 0.1 inHg; 1 cmHg
Negative Pressure Accuracy: 29 inHg to O inHg: ±0.2 inHg;
74 cmHg to O cmHg: ± 1 cm Hg
Pressure Accuracy: - 0 Psig to 200 Psig: ± 1 Psig;
- 200 Psig to 580 Psig: ±(0.3% of reading + 1 Psig);

- 0 Bar to 13.78 Bar ±0.07 Bar;
- 13.78 Bar to 40.00 Bar: ±(0.3% of reading+ 0.07 Bar);

- 0 MPa to 1.378 MPa: ±0.007 MPa;
- 1.378 MPa to 4.000 MPa: ±(0.3% of reading+ 0.007 MPa);

- 0 kPa to 1378 kPa: ±7 kPa;
- 1378 kPa to 4000 kPa: ±(0.3% of reading+ 7 kPa
SM380V Temperature
Sensor Type: Type K thermocouple (nickel chromium/nickel aluminum)
Jack Type: (3) Type K thermocouple
Range: -50°F to 257°F (-46°C to 125°C)
limited by the thermocouple specification.
Display range is -95°F to 999.9°F (-70°C to 537°C
Resolution: 0.1°F (0.1°C)
Accuracy: Shown accuracies are after field calibration.
±(1.0°F) -95°F to 200°F, ±(2.0°F) 200°F to 999.9°F
±(0.5°C) -70°C to 93°C, ±(1.0°C) 93°C to 537.0°C
SM380V Deep Vacuum
Sensor Type: Thermistor
Port Type: (3) 1/4" standard NPT male flare fittings (SM380V)
(1) 3/8" and (3) 1/4" standard NPT male flare fittings (SM480V)
Range and Units: - 50 to 9999 microns of mercury (English)
- 6 to 1330 Pascals (Metric)
- 0.06 to 13.3 mBar (Metric)
- 50 to 9999 mTorr (Metric)
- 0.05 to 10 Torr (Metric, equivalent to mmHg)
Best Resolution: - 1 micron of mercury (below 2000 microns)
- 1 Pascal (below 250 Pascals)
- 0.001 mBar (below 2.5 mBar)
- 1 mTorr (below 2000 mTorr)
- 0.001 Torr (below 2.5 Torr)
Accuracy @ 77°F (25°C): ±(5% of reading + 5 microns of mercury)
±(5% of reading + 1 Pascal)
±(5% of reading + 0.01 mBarr)
±(5% of reading + 5 mTorr)
±(5% of reading + 0.005 Torr)
SR47 Specs
Over range "OL" is displayed
Maximum load 252.00 lbs (114.00 kg)
Max tank base diameter 13 inches (33 cm)
Auto power off 30 minutes of inactivity (no change in weight or buttons pressed, can be disabled)
Backlight Blue, turns off in 2 minutes if no buttons are pressed
Accuracy ±0.03%rdg + 0.25 oz (10 g), 0 to 66 lbs (0 to 30 kg)
±0.05%rdg + 0.25 oz (10 g), 66 to 252 lbs (30 to 114 kg)
Resolution and units lb oz (0.25 oz), lb (0.1 lb), oz (0.3 oz)
kg g (10 g), kg (0.1 kg), g (10 g)
Temperature coefficient 0.1 x (specified accuracy) per °F
Wireless range 1000 feet (305 meters) line of sight.
Obstructions affect distance.
Radio frequency 2.4 GHz
Battery type Remote display: 9V
Platform: 6 x AA
Battery life Remote display: 65 hours typical alkaline (backlight off)
Platform: 200 hours typical alkaline
Operating environment 32°F to 122°F (0°C to 50°C) at <75% RH
Storage temperature -4°F to 140°F (-20°C to 60°C), 0 to 80% RH (with battery removed)
Weight Platform with battery 7 lbs (3190 g)
Remote with battery 0.49 lbs (220 g)
Water resistant IP54 (Platform), IP64 (Remote)
JL3RH Specs
Minimum Device Requirement: BLE 4.0 devices running iOS 7.0 or Android 5.0
Battery Type: 2 x AAA, NEDA 24A, IEC LR03
Battery Life: 150 hours typical alkaline (LED blinks red when battery replacement is needed)
Auto Power Off: 2 hours (APO can be disabled)
Wireless Range: 1000 feet (requires firmware update in app), 1000 feet (305 meters) line of sight (obstructions affect distance)
Radio Frequency: 2.4 GHz
Operating Environment: 32°F to 122°F (0°C to 50°C) at <75% RH
Storage Temperature: -4°F to 140°F (-20°C to 60°C), 0 to 80% RH (with batteries removed)
Temperature Coefficient: 0.1 x (specified accuracy) per 0.6°F (32°F to 64°F, 82°F to 122°F), per 1°C (0°C to 18°C, 28°C to 50°C)
Weight: 0.33 lbs (150 g)
Flexible Probe: 0.36" (9mm) diameter; 9.25" (235mm) length
Relative Humidity (%RH): Sensor Type: Capacitance polymer film
Hysteresis: ±1%RH typical (Excursion of 10% to 90% to 10%RH)
Measurement Range: 0%RH to 100%RH
Accuracy: (At 73.4°F (23°C)) ±2.5% (10%RH to 90%RH); ±(5%) <10%RH,>90%RH
Response Time: 60 seconds typical for 90% of total range
Temperature: Sensor Type: Precision thermistor
Measurement Range: -40°F to 250°F (-40°C to 121°C)
Accuracy: ±(1°F) 32°F to 113°F, ±(0.5°C) 0°C to 45°C; ±(2°F) -4°F to 32°F, 113°F to 140°F, ±(1°C) -20°C to 0°C, 45°C to 60°C

Includes

  • (1) Fieldpiece SM380V Digital Manifold with Micron Gauge
  • (1) CPS HP5E 3-Pack of 5' Premium Ball Valve Hoses
  • (2) Fieldpiece JL3RH Flex Psychrometer Probes
  • (1) Fieldpiece SR47 Wireless Electronic Refrigerant Scale 252lbs
