Description
Fieldpiece JL2 - Job Link Wireless App Transmitter
Available for both iOS and Android!
Inspect, Connect, Report

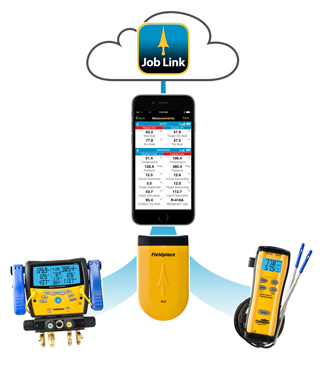

With the JL2 Transmitter and the Job Link App, you can start running your jobs through your iOS mobile device. Fill out inspection checklists, view live measurements, gather in-depth diagnostics, and adjust systems to live data. All reports can be emailed to customers and office, as well as saved in the cloud for access at anytime.
The JL2 Transmitter receives measurements from any Fieldpiece wireless manifold (SMAN4, SMAN440, SMAN460) and the Fieldpiece wireless dual in-duct psychrometer (SDP2) via radio frequency for extra distance - up to 100' from instrument to the JL2. Then the JL2 transmitter converts all live measurements and data to bluetooth connection with your mobile device.
The Job Link App reports all these measurements in real-time:
- SMAN Digital Manifold
- Suction Line
- Temperature
- Pressure
- Actual Superheat
- Target Superheat
- Vapor Saturation
- Outdoor Dry Bulb
- Liquid Line
- Temperature
- Pressure
- Actual Subcooling
- Target Subcooling
- Liquid Saturation
- Refrigerant Type
- Suction Line
- SDP2 Dual In-duct Psychrometer
- Return Air
- Wet Bulb Temperature
- Dry Bulb Temperature
- Supply Air
- Target Dry Bulb Temperature
- Dry Bulb Temperature
- Return Air
Specs
- Wireless range: 1 to 100 feet (Fieldpiece tools to JL2); 1 to 30 feet (JL2 to mobile device). Building materials may adversely affect wireless distance.
- Initial sync setup range: 1 to 10 feet (Fieldpiece tools to JL2)
- Mini-USB port: For charging and updating device firmware.
- Operating (discharge) environment: 32°F to 122°F (0°C to 50°C) at <85% RH
- Storage temperature: -4°F to 140°F (-20°C to 60°C), at <85% RH
- Battery charging environment: 32°F to 113°F (0°C to 45°C), at <85% RH
- Battery type: 3.7V rechargeable lithium-ion polymer battery
- Battery life: 48 hours approx.
- Auto power off: 30 minutes when not wirelessly connected.
- Low Battery indication: Blinking red LED indicates approximately 1 hour of battery life remaining.
- Weight: 2.9 ounces (82 g)
Includes
JL2 Job Link Transmitter
- Steel Belt Clip
- 3.7VDC Rechareable Battery via Mini USB Port
- USB Charging Cable
Videos
Resources
Software / App
Get it on the App Store -
Get it on the Google Play Store -
Screen shots:
