Description
Testo 550 Bluetooth with 60" Hilmor Hose Pack
The Testo 550 instantly displays superheat and sub-cooling for up to 60 refrigerants. It also measures high / low side pressures and temperatures. With it's free Bluetooth linked app, the Testo 550 opens up new possibilities for efficient analysis and documentation.
The rugged housing of the Testo 550 digital manifold includes a metal frame around the display, which protects the digital manifold from impact. Now with 60 refrigerant profiles and added functionality for leak tests, the Testo 550 digital manifold is versatile enough to become the tool for every job. You can view measurement data on your smartphone or tablet, enabling you to quickly and conveniently complete and document you job. Then, be able to finalize the documentation and send the report and invoice via email, right from the job site. The app can also be used to download new refrigerants from the Internet directly into the manifold.
Features:
- Measures high side / low side pressures and temperatures and displays saturation and evaporation temperatures
- Bluetooth / App integration for monitoring, report generation, and sending reports and invoices via email.
- 3-way valve block with three ports
- 60 refrigerant profiles stored in the instrument
- Simplified menu structure using ESC key
- Automatic superheat and sub-cooling calculations
Specs
Temperature:
| Measuring range | -58° to 302 °F / -50 to +150 °C |
| Accuracy | ±0.9 °F / ±0.5 °C |
| Resolution | 0.1 °F / 0.1 °C |
| Probe connection | 2 x Plug-in (NTC) |
Pressure Measurement:
| Measuring range | -15 to 870 psi / -1 to 60 bar |
| Accuracy | ±0.5 % Fs |
| Resolution | 0.14 psi / 0.01 bar |
| Probe connection | 3 x 7/16" – UNF + 1 x 5/8'' – UNF |
| Overload rel. (high pressure) | 943 psi / 65 bar |
Vacuum:
| Measuring range | 0 to 20000 micron (measurement) |
| Accuracy | ± (10 micron + 10 % of mv) (100 to 1000 micron) |
| Resolution | 1 micron (0 to 1000 micron) 10 micron (1000 to 2000 micron) 100 micron (2000 to 5000 micron) 500 micron (5000 to 10000 micron) 5000 micron (10000 to 20000 micron) |
General Technical Data:
| Dimensions | 9 x 5 x 3 in. / 220 x 125 x 70 mm |
| Operating temperature | -4° to 122 °F / -20 to +50 °C |
| Protection class | IP42 |
| Battery life | 250 h (without illumination, without Bluetooth®, without vacuum probe) |
| Pressure media | CFC |
| Refrigerants in instrument | 60 profiles:; R11; R12; R123; R1234yf; R1234ze; R125; R13B1; R134a; R14; R142B; R152A; R161; R22; R227; R23; R290; R32; R401A; R401B; R401C; R402A; R402B; R404A; R406A; R407A; R407B; R407C; R407D; R407F; R408A; R409A; R410A; Ra11A; R412A; R413A; R414B; R416A; R417A; R420A; R421A; R421B; R422A; R422B; R422C; R422D; R424A; R426A; R427A; R434A; R437A; R438A; R502; R503; R507; R508A; R508B; R600; R600a; R744 (CO2); R718 (H2O); update via App |
| System requirements | requires iOS 7.1 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0 |
| Storage temperature | -4° to 140 °F / -20 to +60 °C |
| Weight | 42 oz. / 1200 g |
Hilmor 1839153 Refrigeration Hose 60" Set of 3
| Maximum Allowable Working Pressure: | 800 PSI |
| Burst Pressure: | 4000 PSI |
| Operating Temperature: | -20° F to 180° F |
| End Connection: | Straight by 45° |
| Connection Size | 1/4" |
Includes
- (1) Testo 550 with Bluetooth
- (2) Temperature Clamps

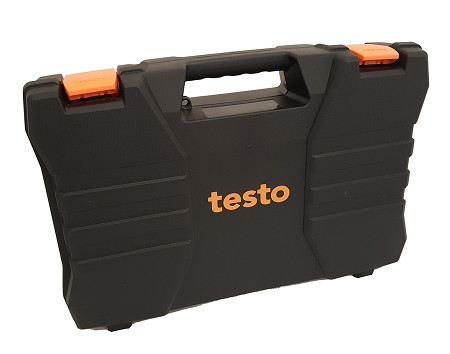

- (1) Hard Case
- (1) Hilmor 1839153 Refrigeration Hose 60" Set of 3
- (1) Certificate of Conformity
