Description

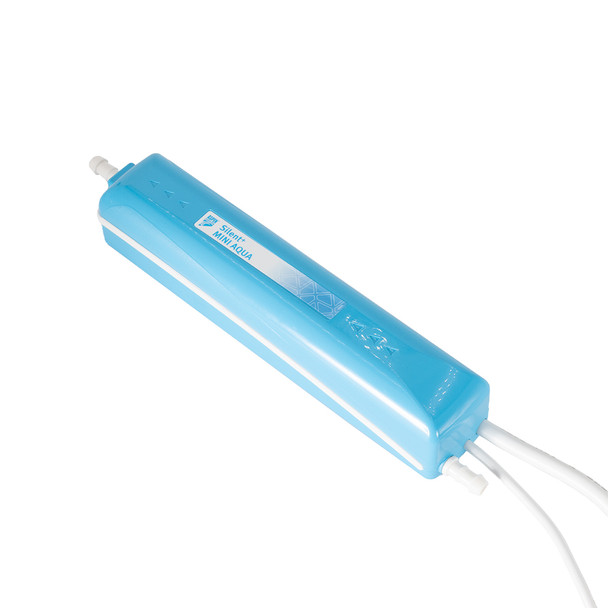

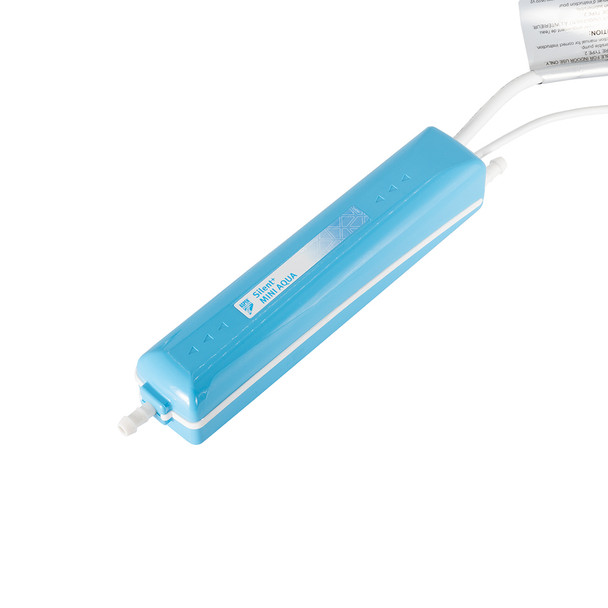

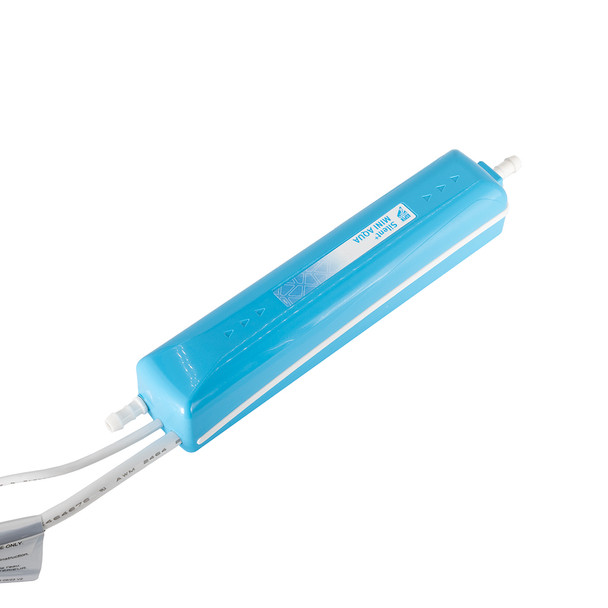

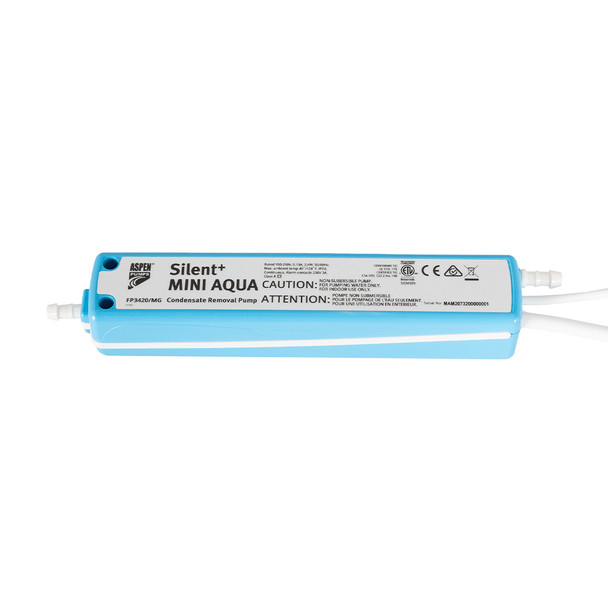

Aspen FP3420/MG Silent+ Mini Aqua Condensate Removal Pump, Gen 5
Compact, ultra-quiet condensate pump for mini-split installations
The Silent+Mini Aqua keeps its sleek and slender form offering unparalleled installation flexibility. It fits neatly into trunking and inside mini split units. Packed with our proven 5th Gen Technology, it's unbeatable silence - a barely audible 16dB(A), combined with intelligent, adaptive flow rates - further extends pump life, maximizes reliability and improves energy efficiency. A versatile, silent mini pump that is perfect for smaller commercial and domestic applications, where quiet is needed. Engineered for Silence.
Aspen mini condensate pumps are engineered for reliable, low-noise operation in noise-sensitive environments such as offices, hotels, and residential spaces. Designed around a total system approach, each pump includes everything needed for installation. Advanced capacitance sensor technology resists dirt, dust, and biofilm, minimizing maintenance beyond routine system service. Backed by industry-leading warranties up to 3 years, Aspen mini pumps deliver long-term performance installers can trust.
Key Features & Benefits
- Ultra quiet performance (as low as 16 dB(A)) for discreet operation
- Proven 5th Gen adaptive flow technology for efficient condensate control
- Max flow up to ~9.25 US Gal/hr (35 L/h) and up to 33 ft / 10 m head
- Slim, slender design fits neatly inside trunking or HVAC units
- Plug-and-play installation with included reservoir, hoses, and connectors
- Universal 100-250 VAC power compatibility
- Self-priming with IP24 protection and high-level safety switch
- Includes clear PVC tube, vent hose, inlet hose, drain kit, and quick start guide
Specs
| FP3420/MG Mini Aqua 5.0 Specs | |
|---|---|
| Max Flow Rate | 9.25 Gallons/hr @0 m head |
| Max Unit Output | 136,000 BTU/h / 11.37 tons / 40 kW |
| Max Recommended Head | 33 ft |
| Max Suction Lift | 6'/1.5 m |
| Inlet O.D. | 5/8" (Ø16 mm) |
| Outlet O.D. | 1/4" (Ø6 mm) |
| Sound Level @ 3 ft | As low as 16dB |
| Max Water Temperature | 104 °F |
| Self-Priming | Yes |
| Color | Aqua |
| Warranty | 3 year |

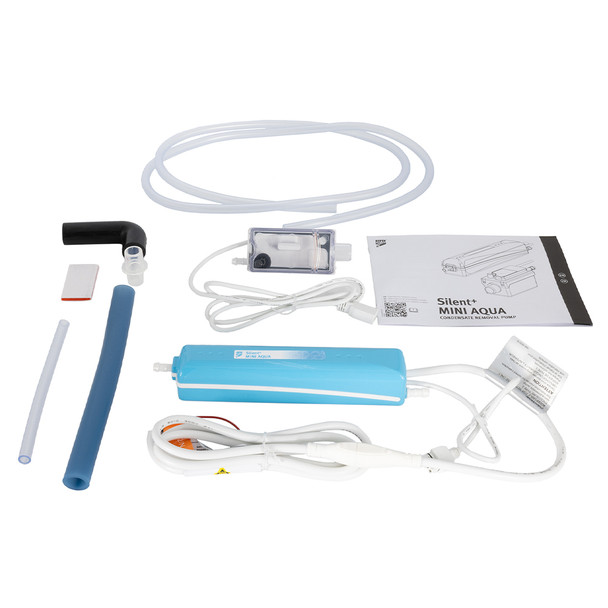

Includes
- (1) Silent+ Mini Aqua 5.0 Gen Pump

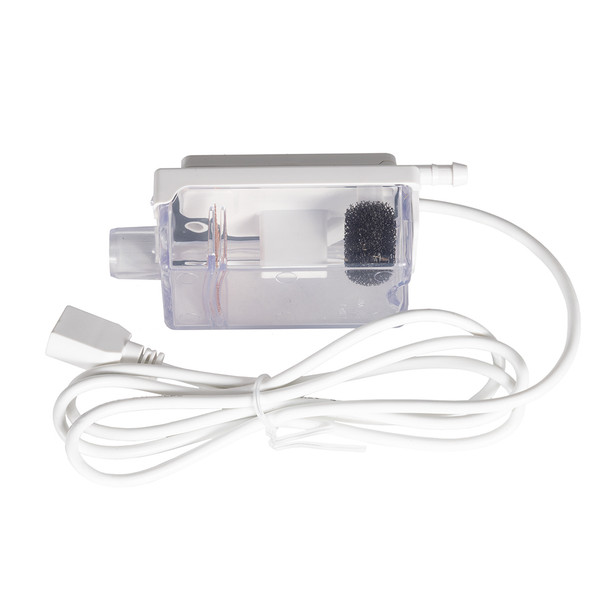

- (1) Reservoir (incl. filter and lid)
- (1) 5' (1.5) Clear PVC Tube
- (1) 8.5" (220mm) Blue Inlet Hose
- (1) 6" (152mm) Clear Vent Hose

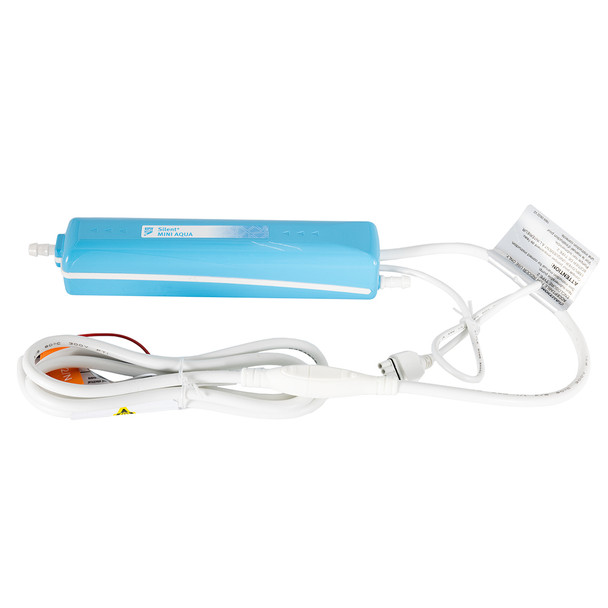

- (1) Plug and Play 5ft (1.5m) Power Cable
- (1) Drain connector kit with straight connector and rubber elbow
- (1) Fixing pad
- (1) Quick Start Guide
