Sigma Cap SCKIT Stackable Capacitor Starter Kit with 11 Pods, Universal Dual Voltage Capacitors for Permanent Replacement

Sigma Cap SCKIT Stackable Capacitor Starter Kit with 11 Pods

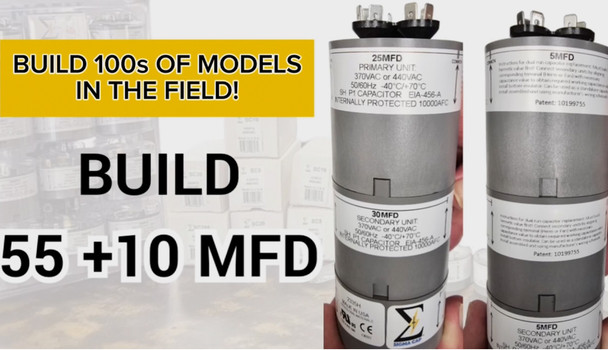

Universal, permanent replacement capacitors — Build 100s of models in the field!

Sigma-Cap™ is the most universal run capacitor product available on the market today and replaces hundreds of capacitor values. Sigma-Cap™ will replace a wide variety of capacitance values providing technicians the capability to carry a smaller truck stock. Technicians can build the correct size capacitor at the job site, allowing them to finish the job in one trip. Pods are stacked and pressed together to give the capacitance necessary for both dual and single applications. Each pod can be used as a stand-alone capacitor and are dual rated for 370/440 VAC. Always have the right size capacitor to finish the job without needing an additional trip. Sigma Capacitors are a permanent replacement for standard capacitors so there is no reason to return to a job site once installed.

Key Features & Benefits

• Always have the right size capacitor
• 7 sizes included — 2.5 MFD, 5 MFD, 10 MFD, 15 MFD, 20 MFD, 25 MFD, 30 MFD
• Starter kit with 11 total segments for building 100s of different models
• Permanent replacement capacitor, no need to return to the job
• Easy to use, simply rotate and stack the pods to build the dual capacitor needed
• Add up the numbers down each side to confirm the MFD rating
• Each pod can be used as a stand alone unit or stacked to get the µF value needed
• Reduce truck stock, save time on trips back
• Individual pods available in All Sizes, adjust stock for your most common builds
• All pods dual rated for 370/440VAC
• Made in the USA

Check out the Sigma Cap Build Calculator to determine the necessary segments based on Hermetic Value and Fan Value.

Quick assembly instructions:

1. Determine capacitances required, compressor and fan
2. Select the secondary pod(s), if required, to match needed capacitances
3. The compressor (hermetic) value must be built first — attach secondary pod(s) for compressor (H, hermetic) to the main pod first by aligning with 25 MFD label, if needed
4. Attach fan (F) secondary pod(s) to Sigma-Cap™ aligning with the 5 MFD label by rotating 120 degrees, if needed
5. Verify capacitance values by adding the vertically aligned values
6. Verify fan secondary pod(s) is on the bottom of the stack
7. Verify all pods are tightly joined
8. Attach protective bottom cap

Important Note: When stacking and attaching pods, always attach the compressor (H) pods (if any) before the fan (F) pods. Be careful not to assemble incorrectly, the pods are not designed to be separated and reused. Ensure the protective bottom cap is used to prevent shorts from touching the cabinet.

---
