Description

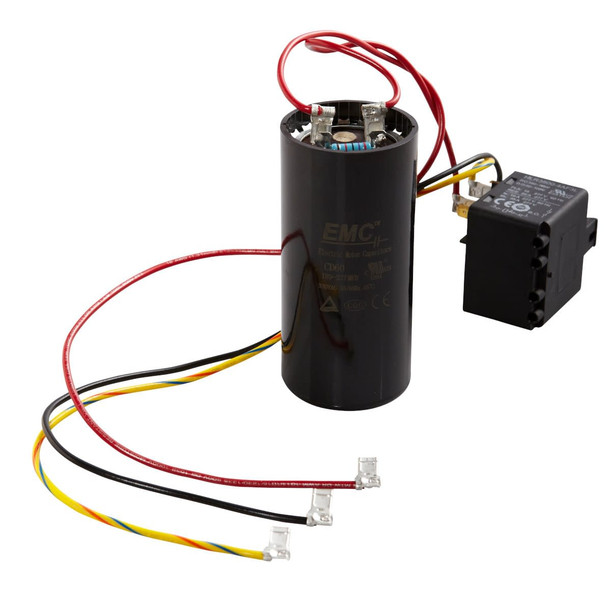

CPS 5-2-1 Compressor Saver for 4 to 5 Ton Systems
Keep your customers' A/C systems running longer and stronger — make 5-2-1 Compressor Saver your go-to for hard start kits
Starting up is the hardest time in the life of any type of electrical equipment. Ever notice that light bulbs almost always burn out when you first turn them on and not while they are on? This is due to the huge current that rushes in when a switch is thrown and power is first applied.
Our A/C systems work hardest during peak season, and every startup puts stress on the compressor. With CPS 5-2-1, you can drastically cut inrush current — sometimes by over 50% * — delivering longer equipment life, improved performance, and more satisfied customers.
The 5-2-1 Compressor Saver significantly reduces the amount of time the compressor is on a high amp start-up. Some top-of-the-line A/C units come from the factory with 5-2-1 technology built-in. It uses a powerful multi-layer starting capacitor and a smart switch to give compressors the boost they needs to start up quickly, more reliably, draw less power and save money, too. The cost of a 5-2-1 Compressor Saver is a fraction of the cost of replacing a compressor damaged by hard starts. It could add years to the life of compressors and other electrical components associated with A/C systems.
The 5-2-1 method is approved by all major compressor manufacturers. The Compressor Saver has been pre-wired for your convenience. There are only 3 color-coded wires which need to be connected. The Black wire will be connected to the Common side of the compressor. The Striped wire will be connected to the Start winding of the compressor and the Red wire will be connected to the Run winding of the compressor. Remember: 5, 2, 1 = Common, Start, Run.
Key Features & Benefits
- Extend the life of compressors
- Reduce damaging in-rush current by up to 50%
- Protect vital internal components
- Save homeowners money on costly repairs and energy savings
- Start air conditioners that are close to breaking down
- Capacitance value of 270-374 MFD
- Buy in bulk and save
- Also available in 1-3 Ton and 3.5-5 Ton
Reduce Compressor Strain by Up to 50%

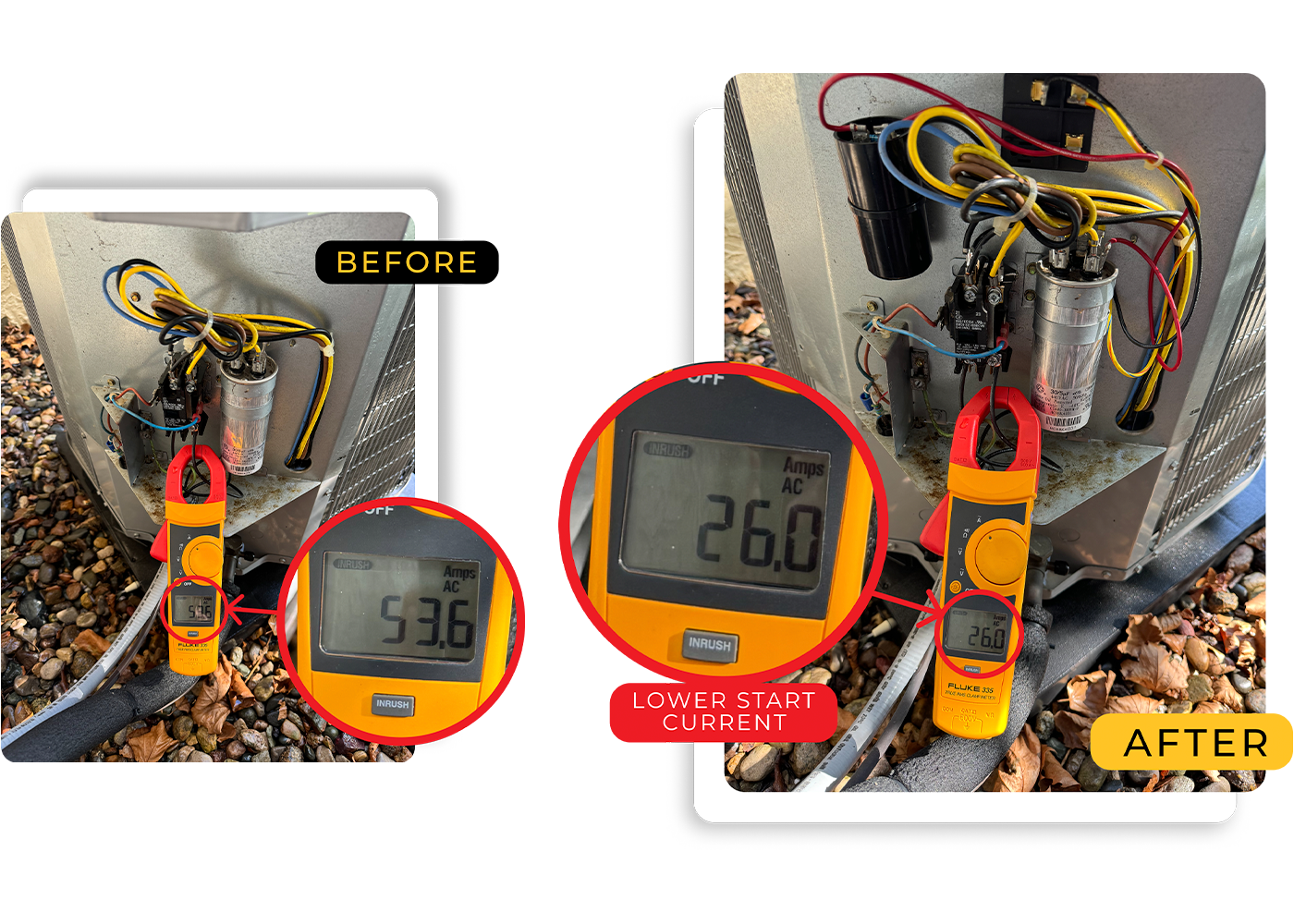

Before installing a 5-2-1, this compressor reads 53.6A inrush current. After installation, it reads at only 26.0A for over a 50% decrease.
How it Works?
Watch this short video with voiceover explaining how the 5-2-1 system can cut surge times by up to half, protect equipment, and save money.
Specs
| Capacitor Size | 270 - 374 Mfd |
| A/C Size | 4 - 5 Ton |
Includes
- (1) CPS 5-2-1 Compressor Saver for 4 to 5 Ton Systems
CPS Compressor Saver Manual
