Description

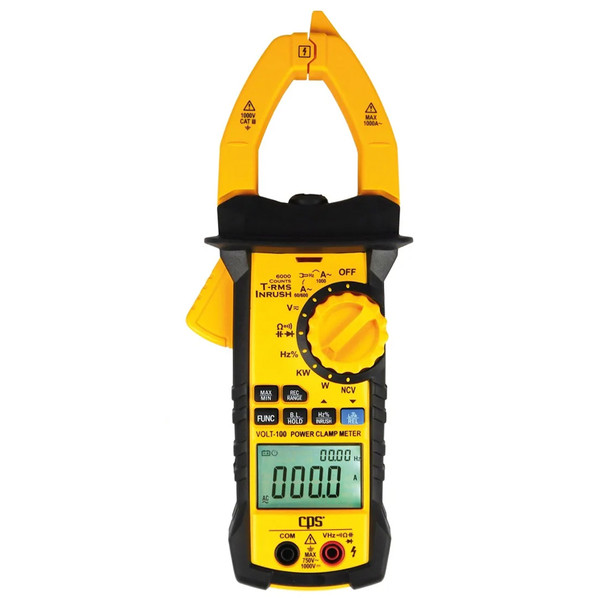

CPS VOLT-100 Wireless Clamp Power Meter with InRush, True RMS
Easily measure inrush/AC currents, resistance, RMS, and more
The CPS VOLT-100 is a portable, professional multifunction instrument with an LCD display for obtaining electrical measurements. It can be used as a conventional clamp meter or may be paired to Apple & Android smartphones & tablets via Bluetooth for additional functionality.
Key Features & Benefits
- Use with or without the CPS Link app
- Connects to Apple and Android smartphones & tablets via Bluetooth
- Power factoring to determine true power consumption
- Data logging of electrical readings
- Utility data feed calculates actual cost/hour of appliances
- CAT III 1,000 V rating
- True RMS measurements
- Non-contact voltage tester
- Maximum Voltage: 750 V AC; 1000 V DC
- Auto range and manual measuring
- Measuring range overload protection
- Display auto-off
- Display backlight
- Automatic polarity indication
- Max/Min and relative measuring function
Measures
- Inrush current
- AC current
- Resistance
- AC/DC voltage
- Phase angle
- Harmonics
- Frequency
- Capacitance
- Duty cycle
- Diode connection
Note on Blower Motor Testing (CPS VOLT-100)
The CPS VOLT-100 clamp meter is well-suited for blower motor testing, enabling fast, non-contact current checks on supply leads at the air handler or furnace. Use it during start-up and service visits to confirm blower performance and to support watt-draw evaluations as part of HVAC system grading.
Blower fan watt-draw testing is specifically referenced in Section 7 of the ANSI/RESNET/ACCA Standard 310: Standard for Grading the Installation of HVAC Systems - Evaluation of the Blower Fan Watt Draw. Review the full standard here: ANSI/RESNET/ACCA 310-2020 Standard (PDF) .
Suggested SEO terms: blower motor testing, blower fan watt draw, HVAC clamp meter, CPS VOLT-100.
The One App To Rule Them All.
Discover the unique advantage of measureQuick - the only HVAC app that seamlessly connects with the industry's top Bluetooth-enabled tools. This platform integrates with leading devices from top manufacturers providing a single interface to gather crucial data and streamline your diagnostic process. With measureQuick, you can harness the power of cutting-edge technology to enhance your team's capabilities and deliver exceptional service to your customers. Experience the unparalleled convenience and efficiency of connecting your favorite tools all in one place, exclusively with measureQuick.
Download the measureQuick App for your Android or iOS devices
The Quickest Way to Consistent Results
App features:
- Guided Workflows - Blazing fast project templates, tuned to eliminate errors and decrease time on the job site.
- mQ Cloud - Pre-populate jobs before getting to site, and live-stream measurements from any tech, anywhere.
- ACCA QI Certificates - Prove to your clients that you're the best in town through a certified report and 3rd party validation
- Streamlined Connectivity - Rock-solid bluetooth management of every probe and tool, regardless of where you are on the job site.
Specs
| VOLT-100 Clamp Meter Specs | |
|---|---|
| Data Logging | Up to 1,000 samples |
| Sampling Rate | 1X/sec. for max of 16 mins., 40 secs. |
| Maximum Input Current | 1000A AC |
| Maximum Input Voltage | 750V AC (TRMS); 1000V DC |
| Wattage | 3W / 100W / 4000W / 10kW / 100kW / 750kW |
| AC Current | 60A / 600A / 1000A |
| Inrush Current | 60A / 600A / 1000A |
| Resistance | 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ |
| Capacitance | 9.999nF / 99.99nF / 999.9nF / 9.999µF / 99.99µF / 999.9µF / 9.999mF / 99.99mF |
| Jaw Opening | 1.6" (42mm) |
| Max. Size (H x W x D) | 9.4" x 1.9" x 3.6" (238 x 50 x 92 mm) |
| Weight | 0.92 lb (420 g) |
Includes
- (1) CPS VOLT-100 Wireless Clamp Power Meter
- (1) Test Leads
- (1) 9V battery
- (1) Manual
- (1) Storage Case
Resources
CPS VOLT-100 Clamp Meter Manual
