Description

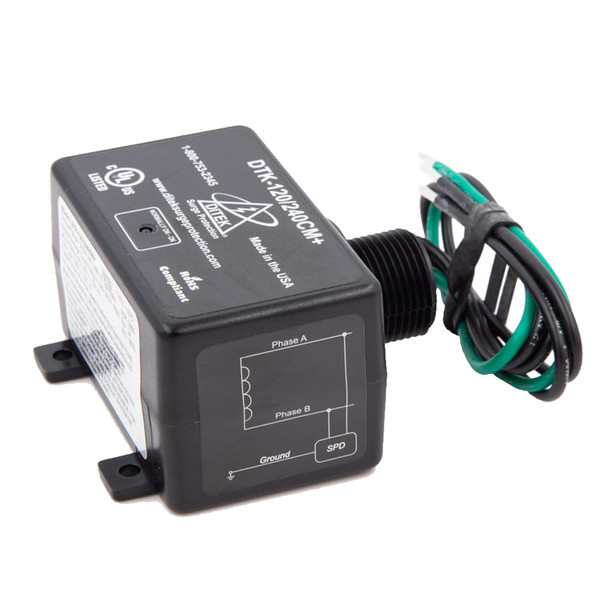

DiTek DTK-120/240CM+ Split Phase Surge Protective Device 120/240VAC
Protect Systems from Damaging Power Surges
DITEK's DTK-120/240CM+ is designed to provide maximum protection for HVAC systems in the most demanding environments. It incorporates the latest thermally-protected surge component technology for the highest level of safety and performance, and the NEMA Type 4X polycarbonate enclosure allows for installation in the harshest of climates.
Key Features & Benefits
- 50,000A surge current rating ensures maximum performance
- Compact size enables close mounting to the protected equipment
- Diagnostic LED provides positive indication of system power and SPD function
- NEMA Type 4X polycarbonate weatherproof enclosure
- UL 1449 Listed Type 1 SPD
- 3 Year $7,500 Residential Connected Equipment Warranty
- Suitable for Inverter Driven HVAC Systems, Condensing Units, Air Handlers, Ductless Systems, and Pool Control Panels
Specs
| DTK-120/240CM+ Specs | |
|---|---|
| Service Voltage | 120/240 VAC Split Phase |
| Surge Current Rating | 50,000 A |
| Short Circuit Current Rating (SCCR) | 100,000 A |
| Nominal Discharge Current Rating (In) | 10 kA |
| MCOV | 150 V / 300 V |
| Voltage Protection Rating (VPR) | 700 V (Line-Ground), 1200 V (Line-Line) |
| Operating Frequency | 50/60 Hz |
| Status Indication | LED |
| Connection Method | 3/4" NPT male hub 18-inch 12AWG wire leads |
| Dimensions | 3.47 in. L x 2.08 in. W x 1.89 in. H (88 mm x 53 mm x 48 mm) |
| Weight | 8.8 oz. (249g) |
Includes
- (1) DiTek DTK-120/240CM+ Split Phase Surge Protective Device 120/240VAC
DiTek Surge Protector Datasheet
