Description

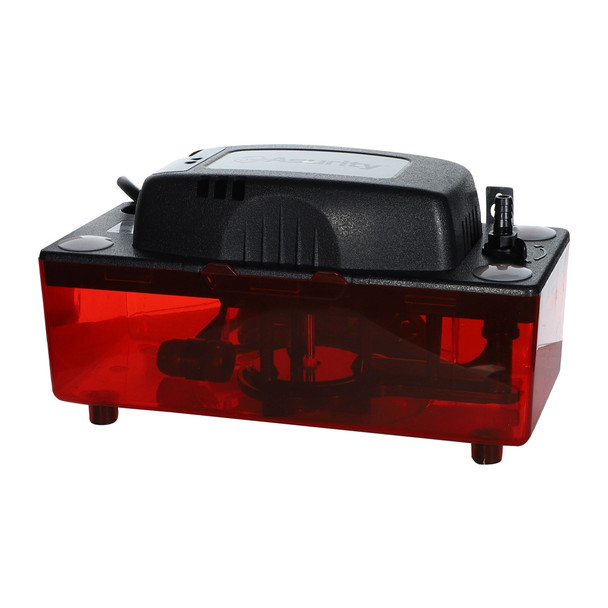

Diversitech Asurity ULTRAIQP Condensate Pump 22ft Lift
Smart self cleaning, draining, speed control and more
The Asurity® ULTRAIQP is the most advanced, intelligent condensate pump available. TMR sensor technology (Tunneling Magnetoresistance) senses water flow and automatically adjusts motor speed, ensuring quiet operation. The pump detects line blockages and increases water pressure to pulse and clear clogs. Its "end-of-season" mode drains water after 30 days of no detection. Equipped with a safety overflow switch, common, run, alarm connections, and 4 LED indicators. The see-through tank allows quick troubleshooting.
Key Features & Benefits
- Translucent tank for easy & fast inspection
- Intelligent variable speed operation senses water flow and adjusts motor speed automatically allowing for quiet operation
- Self-cleaning feature detects when a drain line is partially or fully clogged, increasing the pressure in the drain line and pulses to clear the clog
- End-of-season mode; after 30 days of not detecting water, the pump automatically drains water from the tank
- 22 ft maximum lift height
- Built-in safety overflow switch with alarm and run contacts shuts the system down preventing overflow
- LED and audible indicators confirm pump status
- Removable check valve for easy cleaning
- 4 inlet holes
Specs
| ULTRAIQP Pump Specs | |
|---|---|
| Max Flow Rate | 1.6 GPM |
| Max Lift Height (Ft.) | 22 |
| No. of Inlets | 4 |
| Inlet Height | 4.4" from Base |
| Self-Cleaning | Yes |
| Tank Capacity (Gal.) | 1/2 |
| Volts | 120 |
| Hertz | 60 |
| Amps | 1.9 |
| Discharge Line (In.) | 3/8 |
| Max Condensate Temp. (Degrees) | 160°F |
| Dimensions | 11.5" x 5.6" x 6.3" |
| Weight | 5 lbs |
Includes
- (1) Diversitech Asurity ULTRAIQP Condensate Pump
- (3) Inlet Hole Covers
- (1) Remote Shutoff Leads
Asurity ULTRAIQP Condensate Pump Manual
