Description

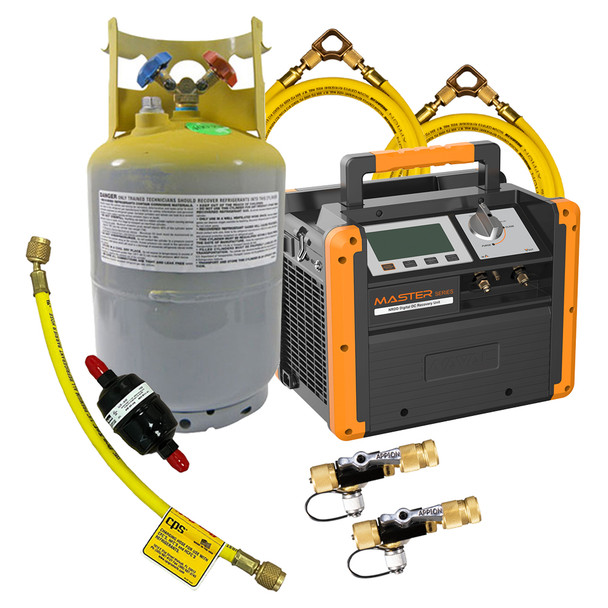

TruTech Tools Fast Recovery Kit with NAVAC NRDD and Accessories
Already own your favorite recovery machine? Grab the accessory kit for faster recoveries
Grab this kit to speed up your recovery! The Entry Level kit includes a NAVAC NRDD Recovery Machine, 30lb recovery cylinder, two core tools, two yellow recovery hoses, and a filter drier with jumper hose.
NAVAC NRDD Brushless DC Recovery Unit
The NRDD recovery unit offers exceptionally efficient vapor recovery due to the twin-cylinder compressor and oversized condenser with two rows of microchannel coils. The NRDD recovery unit features a Brushless DC Motor making it lightweight and much more efficient, a large backlit display, twin cylinder design with 2-row oversized condenser, oil free compressor and self-purging functionality. This DC motor technology also provides better starting performance under low voltage conditions. The NRDD recovery unit is suitable for all commonly used refrigerants making it the ideal recovery unit!
Key Features & Benefits
- Fastest in its class
- Purge function
- Prevents mixing of various refrigerants
- Oil-free compressor
- Suitable for all commonly used refrigerants
- Twin cylinder with 2-row oversized condenser
- Fastest in direct vapor for R-410A and R-22
- One-key operation
- Large backlit display with easy-to-read LCD
- Brushless DC technology
- UL-verified recovery rate
- Lightweight and efficient design
Specs
| NRDD Recovery Machine Specs | |
|---|---|
| Refrigerant Type |
Category III: R-12, R-134a, R-401C, R-500 Category IV: R-22, R-401A, R-401B, R-402B, R-407C, R-407D, R-408A, R-409A, R-502, R-509 Category V: R-32, R-402A, R-404A, R-407A, R-407B, R-410A, R-454B, R-507 |
| Power Supply | 115 V / 60 Hz |
| FLA | 11 A |
| Motor | 1 HP |
| Max Current Draw | 12 A |
| Compressor | Oil-less, Air-cooled, Piston style |
| Automatic Safety Shut-Off | 558 psi / 38.5 bar |
| UL Verified Recovery Rate |
Direct Vapor: R-410A 0.75 lbs/min (0.34 kg/min) R-22 0.64 lbs/min (0.29 kg/min) R-134a 0.57 lbs/min (0.26 kg/min) |
|
Direct Liquid: R-410A 14.44 lbs/min (6.55 kg/min) R-22 11.11 lbs/min (5.04 kg/min) R-134a 7.85 lbs/min (3.56 kg/min) |
|
|
Push/Pull Liquid: R-410A 18.41 lbs/min (8.35 kg/min) R-22 17.04 lbs/min (7.73 kg/min) R-134a 12.81 lbs/min (5.81 kg/min) |
|
| Dimension | 14.5" x 9.9" x 11.7" |
| Weight | 25.4 lbs |
Includes
- (1) NAVAC NRDD Refrigerant Recovery Machine
- (2) Appion 1/4" Core Tools
- (2) Appion MegaFlow 3/8" High Speed Recovery Hoses
- (1) CPS CRX430T Recovery Cylinder 30lb
- (1) CPS 12" Yellow Hose Whip
- (1) Liquid Line Filter Drier
NAVAC NRDD Recovery Machine Manual
