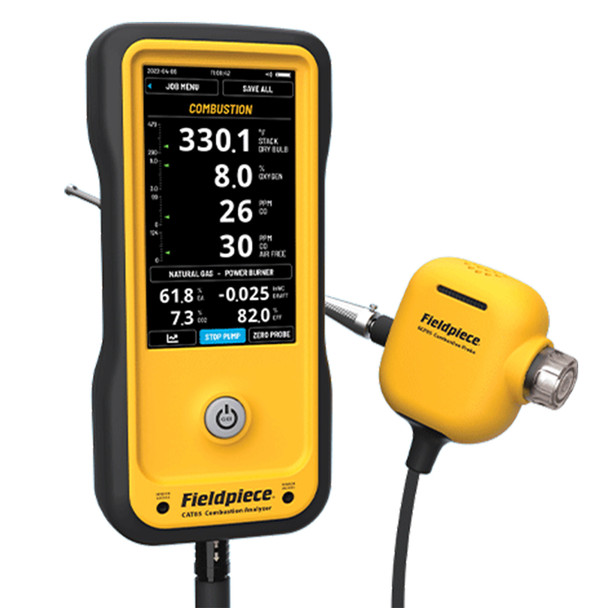

Fieldpiece CAT85 Combustion Analyzer with HydroCycle
Built Tough Enough for any Heating Job
The Fieldpiece CAT85 Combustion Analyzer HC provides a hassle-free solution for technicians to get the job done quickly, easily, and safely while improving system efficiency. Accurate sensors of O2, CO, pressure, and temperature along with powerful trending, provide key insight into equipment performance. SensorVault technology seals to prolong sensor life. A large, high-contrast 5.5" touchscreen display helps you easily view measurements. Save your customer data with dedicated fields for client information and create trend reports for advanced diagnosis. Live draft pressure measurement maintains accuracy throughout your combustion test. Dual manometer ports are also included for convenience. The combustion probe uses a patent pending HydroCycle pump to return condensate back into the flue - no more water trap hassles!
Key Features and Benefits
- Accurately measure O2, CO, CO2, draft pressure
- Built-in manometer means one less tool to carry
- Automatically separates and returns accumulated water to the flue using the patent pending HydroCycle Pump technology.
- Lower cost of ownership with four-year sensor warranty
- Large 5.5" touchscreen display with one-touch power on
- Field-replaceable sensors to maximize uptime
- Troubleshoot while running analysis with live draft pressure
- Patent pending SensorVault technology prolongs sensor life
- Connect with Job Link System App, industry-leading 1000' wireless range
- USB-C chargeable while in use
- 1 Year Manufacturer Device Warranty
- 4 Year Manufacturer Sensor Warranty
Breakthrough Innovation HydroCycle
The CAT85 does not have a water trap. Instead, flue gas condensate is automatically pumped back out of the front of the probe at a regular interval. Point the probe downwards as you remove it to empty any remaining condensate before storing. Also, the CAT85 offers a built-in manometer so you can carry one less tool.
Breakthrough Innovation SensorVault
The SensorVault technology of the power button unseals sensors when powering on and and seals the sensors when powering off. SensorVault technology prolongs the life of sensors, but they eventually need to be replaced. When it does come time to replace sensors, CAT85 makes it quick and painless. Replacement sensors have calibration data built-in and do not require calibration. When a sensor's life drops below 5%, a notification appears during startup to inform you it's time to replace it. You can view estimated remaining life at any time in SETTINGS.
Simplicity Redefined
Featuring a high contrast, 5.5" touchscreen display, the CAT85 makes it easy to view measurements, whether your jobsite is a dimly lit basement or bright rooftop. You can also save your customer data with dedicated fields for client information. If you require advanced diagnoses, a live trend report is available with O2, CO and CO2 readings.
Reliable & Rugged
The CAT85 can tackle any jobsite conditions with its durable construction and rubberized casing. The magnetic back lets you work hands-free and the padded hardline carrying case includes multiple inserts for accessories.
Rugged Construction
Durable construction and rubberized casing make the CAT85 tough enough to tackle any jobsite conditions. The magnetic back also lets you work hands-free and the padded hardline carrying case has multiple inserts for accessories.
Jobsite Documentation
Seamlessly connect to Fieldpiece Job Link System App to view trends, draft pressure, and customer details, all with industry-leading 1000' wireless range. A wireless printer is also available for jobsites that require documentation printouts.
Specs
| General Specs | |||
|---|---|---|---|
| Display | Touchscreen TFT LCD (5.5 in diagonal) | ||
| Probe Size | 10.7 in (272 mm) length, 0.32 in (8.0 mm) diameter | ||
| Accuracy | Stated accuracies at 23°C ±5°C, <75% R.H. | ||
| Manometer Ports | 2 connectors (P1, P2) for flex tubing (4.5mm to 8.0mm ID, not included) | ||
| Battery Type | 3.7 VDC (nominal), 6400mAh, non-replaceable | ||
| Battery Life | 7 hours typical (pump running 80% of the time) | ||
| Charge Time | < 7 hours typical @ 5V/2A DC power (power adapter not included) | ||
| Charging Port | USB-C (Usable when connected to power) | ||
| Memory | 1000 jobs (approx.) | ||
| Warm Up Time | 45 seconds (90 seconds near freezing) | ||
| Operating Environment | 14°F to 104°F (-10°C to 40°C); < 75% RH (non-condensing) | ||
| Storage Temperature | -4°F to 140°F (-20°C to 60°C); < 80% RH | ||
| Weight | 44.25 oz (1255 g) with probe | ||
| Wireless Range | 1000 feet (305 meters) | ||
| Fuel Types | Natural Gas, Propane (LPG), Oil #2 (Light), Oil #6 (Heavy), Biofuel, Coal, Coal Town Gas, Coking Oven Gas, KOKS, Custom (x3) | ||
| Manufacturer Warranty | 1 year (4 years sensors only) | ||
| Job Link System Minimum | BLE 4.0 devices running iOS 7.1 or Android™ Kitkat 4.4 Latest compatibility at www.fieldpiece.com | Sensors | |
| Sensor Type | Response Time | Max Overload | |
| Temperature | Type K rod thermocouple (fixed) | < 30 seconds (T90) | |
| Oxygen (%) | Electrochemical (replaceable) | < 30 seconds (T90) | 30% Oxygen |
| Carbon Monoxide (PPM) | Electrochemical (replaceable) | < 90 seconds (T90) | 10000 ppm Carbon Monoxide |
| Pressure Probe (inWC, torr, Pa) | Piezoresistive pressure sensor | < 10 seconds (T90) | 4.0 inWC will cause damage |
| Pressure Ports (inWC, torr, Pa) | Silicon pressure sensors | < 10 seconds (T90) | 11.6 psig (321 inWC) causes damage | Testing Parameters |
| Range | Best Resolution | Accuracy | |
| Stack Temperature | 32 to 752°F; 0 to 400°C | 0.1°F; 0.1°C | ±2.5°F [32°F to 212°F], ±(3.6°F or 1.5%rdg) [213°F to 752°F]; ±1.4°C [0°C to 100°C], ±(2.0°C or 1.5%rdg) [101°C to 400°C] |
| Oxygen O2 | 0 to 21 vol.% | 0.1 vol.% | ±0.3 vol.% |
| Carbon Monoxide CO | 0 to 4000 ppm | 1 ppm | ±20 ppm [0 to 400 ppm], ±5%rdg [401 to 2000 ppm], ±10%rdg [2001 to 4000 ppm] |
| Draft Pressure | 0 to ±0.8 inWC | 0.01 inWC | ±0.02 inWC |
| CO Air Free (Calculated) | 0 to 4000 ppm | 1 ppm | |
| CO2 (Calculated) | 0 to CO2max vol.% | 0.1 vol.% | |
| Excess Air (Calculated) | 0 to 999% | 0.1% | |
| Efficiency (Calculated) | 0 to 100% | 0.1% | |
| qA (Calculated) | 0 to 25% | 0.1% | |
| Dew Point (Calculated) | 32 to 212°F; 0 to 100°C | 0.1°F; 0.1°C | |
| Primary Air Temp | 32 to 212°F; 0 to 100°C | 0.1°F; 0.1°C | ±2.5°F [32°F to 212°F]; ±1.4°C [0°C to 100°C] |
| Ambient CO | 0 to 200 ppm | 1 ppm | ±20 ppm |
| Manometer | 0 to ±40 inWC | 0.01 inWC | ±0.2 inWC [0 to ±20 inWC], ±1%rdg [±(20.1 to 40.0 inWC)] |
| Fuel Pressures | 0 to 40 inWC | 0.01 inWC | ±0.2 inWC [0 to 20 inWC], ±1%rdg [20.1 to 40.0 inWC] |
Includes
- (1) CAT85 Combustion Analyzer HC (including probe)
- (1) Carrying case - ANC85
- (2) Cones - RCONE3
- (10) Filters - RFC10
- (1) USB cable
- (1) Manual
Videos
Fieldpiece CAT85 Manual
Software / App
