Fieldpiece MG44 Job Link Wireless Vacuum Gauge

A2L Compatible?:
  • Fieldpiece MG44 Job Link Wireless Vacuum Gauge
  • Fieldpiece MG44 Job Link Wireless Vacuum Gauge
  • Fieldpiece MG44 Job Link Wireless Vacuum Gauge
  • Works with SMAN Manifolds (Not Included)
MSRP: $279.00
Price: $237.15
— You save $41.85


Fieldpiece MG44 Job Link Wireless Vacuum Gauge

Rugged, Accurate, and Wireless. Designed for the field.

Like every piece of Fieldpiece hardware, the Wireless Vacuum Gauge (MG44) is built to make your work easier. It helps eliminate misleading measurements by allowing you to connect it at the system port – even those awkward, hard-to-reach spots. It’s also housed in a rugged impact- and weather-resistant case. The new, smaller cylindrical shape of the Wireless Vacuum Gauge, its no-slip grip, and the addition of a reversible angled coupler—mean the MG44 is easy to manipulate and install in the toughest spots. While you're performing an evacuation, this gauge allows you to monitor progress via the Job Link app from up to 1000' away. The MG44 also works with existing SMAN Refrigerant Manifolds (SM380V / SM480V) or you can monitor evacuation measurements directly on the MG44 display. A dot-matrix display means you get multiple views – bar graph, rate, and rate meter; and our new larger backlit LCD screen is bright and easy to read, even in low light or at odd angles.


  • Confidently monitor vacuum with a reliable, leak-proof seal
  • Reversible angled coupler and new cylindrical design are easier to fit into tight spaces.
  • Three ways to use:
    • up to 1000' away via the Job Link mobile app
    • on the Fieldpiece SMAN Refrigerant Manifold
    • direct from the MG44's display
  • Three ways to view via the new larger backlit LCD screen, easier to read and the dot-matrix display shows more info including:
    • bar graph - graphical illustration of the measurement. uses a non-linear scale for better resolution at deeper vacuum (Full bars are atmospheric pressure.)
    • rate - the running 10 sec average of the measurement change per minute. (Negative rate indicates deeper vacuum.)
    • rate meter - graphical illustration of the measurement's real-time change (The scale is dynamic, that is not the actual value)
  • Rugged over-molded construction for extreme impact resistance
  • IP54-rated weather-resistant

Three ways to use!

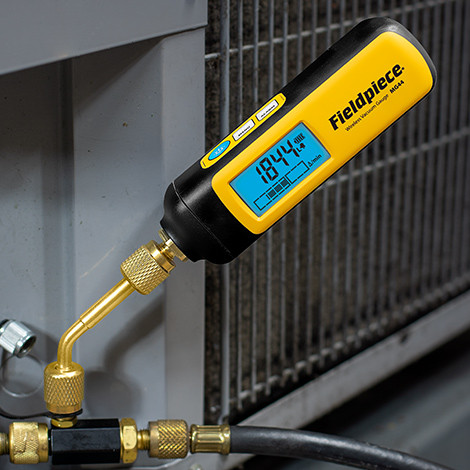

Stand Alone - The new cylindrical design with reversible coupler fits into tight spaces while still being easy to read. With the large, backlit LCD screen you can see the information from a wide angle and in high and low lights. Rugged, sealed case is weather resistant and stands up to tough conditions.

Job Link System App - This tough vacuum gauge communicates wirelessly with your mobile device to keep you up-to-date on progress from 1000' away so you can move onto another task or out of the way of the customer's business or home.

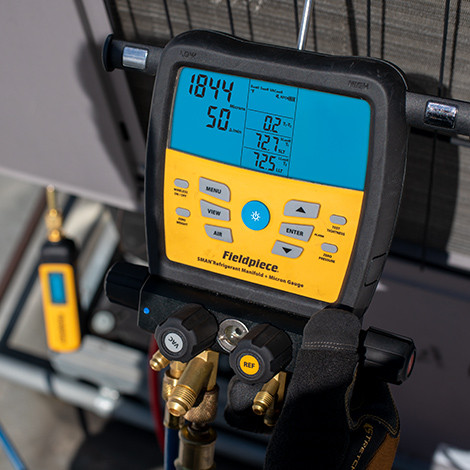

SMAN Manifold Screen - Monitor vacuum progress by using a separate vacuum gauge at the system port during any standard evacuation for better accuracy even with the SMAN digital manifold.

*MG44 not currently compatible with measureQuick (mQ)


Connector type 1/4" SAE male fitting
Accuracy ±(5% of reading + 5 microns) at 77°F (25°C), 50 to 1000 microns
Maximum Pressure 870 PSI
Range and Units 50 to 25000 microns of mercury (English)
6 to 3333 Pascals (Metric)
0.06 to 33.33 mBar (Metric)
50 to 25000 mTorr (Metric)
0.05 to 25 Torr (Metric, equivalent to mmHg)
Best Resolution 1 micron of mercury (below 2000 microns)
1 Pascal (below 250 Pascals)
0.001 mBar (below 2.5 mBar)
1 mTorr (below 2000 mTorr)
0.001 Torr (below 2.5 Torr, equivalent to mmHg)
Battery Type 2 x AA Alkaline
Battery Life 40 hours typical alkaline
Auto Power Off 15 minutes default (APO adjustable)
Wireless Range 1000 feet (305 meters) line of sight. Obstructions affect distance.
Radio Frequency 2.4 GHz
Operating Environment 14°F to 122°F (-10°C to 50°C) at <75% RH
Storage Temperature -4°F to 140°F (-20°C to 60°C) at <80% RH (with batteries removed)
Weight 0.66 lbs (300 g)
Water Resistence IP54-rated weather-resistant
Minimum Device Requirement BLE 4.0 devices running iOS 7.0 or Android 5.0


  • (1) MG44 Wireless Vacuum Gauge
  • (1) Reversible 1/4" angled (45°) coupler
  • (2) AA Batteries
  • (1) Operator's manua
  • (1) Year limited warranty


Software / App

Download the Fieldpiece Job Link App for your Android or iOS devices
