Description
TruTech Tools Fieldpiece Professional Job Link® Smart Probe Kit for measureQuick
Incorporating Fieldpiece Products. Works with measureQuick!
All JL3RH's can be upgraded through a firmware update to handle extreme duct temps from -40°F to 250°F.
Just open the Fieldpiece Job Link® App and you will be prompted to update your probes.

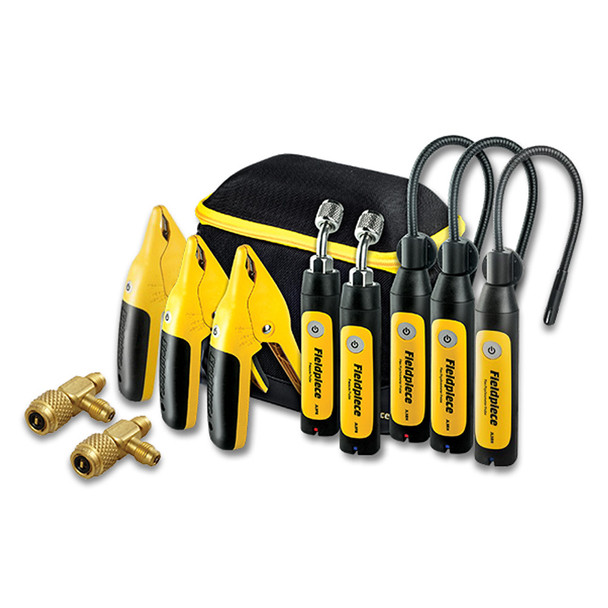

Take a full system snapshot quickly and easily with the TTT Exclusive Professional Job Link® Kit for measureQuick. This kit consists of 2 pressure probes, 3 pipe clamps, and 3 psychrometers in a quick access padded case. All measurements can be sent up to 1000' away directly to your mobile device with the Job Link® app. Each tool is designed for agility and speed. The pressure probes fit into tight spaces. The pipe clamps use the new Rapid Rail™ sensor design delivering accuracy, speed, and agility, even on the most awkward pipe configurations. The psychrometers' flexible narrow probes and configurable magnet make it easy to measure supply plenums, ducts, and elevated registers. Do more with Job Link® smart probes!
Wireless range of 1000' plus
- Directly connects to mobile device with measureQuick or the Job Link® System App. iOS and Android compatible.
- Fast accurate temps with new Rapid Rail technology
- Pressures auto calibrate at any elevation
- Configurable psychrometers with flexible probe and sliding magnet
Powerful Wireless Signal Strength
- Up to 1000' wireless signal
- Powerful enough to go through most walk-in coolers and freezers
- Directly transmits to your mobile device
Rapid Rail Sensor Advantages
- Stabilizes in under 5 seconds
- Beeper and LED indicate accurate connection
- The Rapid Rail sensor uses pipe to complete circuit so ambient conditions don't affect the measurement
- Narrow jaw connects in tight spaces and on irregular pipe shapes
Reliable Pressures Regardless of Location
- 45° angled fitting easily connects in tight spaces
- Pressure sensors are accurate at any elevation
- Calibrates automatically when powered on
Configurable Psychrometric Testing
- Probes measure return and supply for grilles and registers
- Place at multiple locations based on system requirements
- Long flexible probe with sliding magnet for easy placement on system
- Narrow tip fits in 3/8'' holes or larger
- Real time enthalpy and delivered BTUs
Specs
| JL3RH Psychrometer Specs | |
|---|---|
| Minimum Device Requirement: | BLE 4.0 devices running iOS 7.0 or Android 5.0 |
| Battery Type: | 2 x AAA, NEDA 24A, IEC LR03 |
| Battery Life: | 150 hours typical alkaline (LED blinks red when battery replacement is needed) |
| Auto Power Off: | 2 hours (APO can be disabled) |
| Wireless Range: | 1000 feet (305 meters) line of sight (obstructions affect distance) |
| Radio Frequency: | 2.4 GHz |
| Operating Environment: | -4°F to 122°F (-20°C to 50°C) at <75% RH |
| Storage Temperature: | -4°F to 140°F (-20°C to 60°C), 0 to 80% RH (with batteries removed) |
| Temperature Coefficient: | 0.1 x (specified accuracy) per 0.6°F (32°F to 64°F, 82°F to 122°F), per 1°C (0°C to 18°C, 28°C to 50°C) |
| Weight: | 0.33 lbs (150 g) |
| Flexible Probe: | 0.36" (9mm) diameter; 9.25" (235mm) length |
| Relative Humidity (%RH): |
Sensor Type: Capacitance polymer film Hysteresis: ±1%RH typical (Excursion of 10% to 90% to 10%RH) Measurement Range: 0%RH to 100%RH Accuracy: (At 73.4°F (23°C)) ±2.5% (10%RH to 90%RH); ±(5%) <10%RH,> 90%RH Response Time: 60 seconds typical for 90% of total range |
| Temperature: |
Sensor Type: Precision thermistor Measurement Range: -40°F to 250°F (-40°C to 120°C) Accuracy: ±(1°F) 32°F to 113°F, ±(0.5°C) 0°C to 45°C; ±(2°F) -4°F to 32°F, 113°F to 140°F, ±(1°C) -20°C to 0°C, 45°C to 60°C |
| JL3PR Pressure Probe Specs | |
| Minimum Device Requirement: | BLE 4.0 devices running iOS 7.0 or AndroidTM 5.0 |
| Sensor Type: | Relative pressure |
| Connector Type: | Standard 1/4" SAE (angled) |
| Measurement Range: | 29" HgV to 580 psig, 74 cmHgV to 0 to 4000 kPa |
| Accuracy: |
29" HgV to 0" HgV: ±0.2" HgV 74 cmHgV to 0 cmHgV: ±1 cmHgV 0 to 200 psig: ±1 psig 0 to 1378 kPa: ±7 kPa 200 to 580 psig: ±2 psig 1378 to 4000 kPa: ±14 kPa |
| Maximum Overload Pressure: | 800 psig (5500 kPa) |
| Battery Type: | 2 x AAA, NEDA 24A, IEC LR03 |
| Stabilization Time: | 3 seconds typical |
| Battery Life: | 150 hours typical alkaline (LED blinks red when battery replacement is needed) |
| Auto Power Off: | 2 hours (APO can be disabled) |
| Wireless Range: | 1000 feet (305 meters) line of sight |
| Radio Frequency: | 2.4 GHz |
| Operating Environment: | -4°F to 122°F (-20°C to 50°C) at <75% RH |
| Storage Temperature: | -4°F to 140°F (-20°C to 60°C), 0 to 80% RH (with batteries removed) |
| Temperature Coefficient: | 0.1 x (specified accuracy) per 0.6°F (32°F to 64°F, 82°F to 122°F), per 1°C (0°C to 18°C, 28°C to 50°C) |
| Weight: | 0.39 lbs (177 g) |
| Water Resistant: | Designed to IP55 |
| JL3PC Pipe Clamp Specs | |
| Minimum Device Requirement: | BLE 4.0 devices running iOS® 7.0 or AndroidTM 5.0 |
| Pipe Contact Surface Compatibility: | Electrically conductive |
| Pipe Size Compatibility: | 1/4" to 1 3/8" (6.4mm to 34.9mm) OD |
| Sensor Type: | Rapid Rail thermocouple (nickel chromium / nickel aluminum) |
| Measurement Feedback: | Beeper and LED |
| Measurement Range: | -50°F to 257°F (-46°C to 125°C) |
| Stabilization Time: | 3 seconds typical |
| Accuracy: | ±1.0°F (±0.6°C) (meets California's Title 24 requirements) |
| Battery Type: | 2 x AAA, NEDA 24A, IEC LR03 |
| Battery Life: | 150 hours typical alkaline (LED blinks red when battery replacement is needed) |
| Auto Power Off: | 2 hours (APO can be disabled) |
| Wireless Range: | 1000 feet (305 meters) line of sight |
| Radio Frequency: | 2.4 GHz |
| Operating Environment: | -4°F to 122°F (-20°C to 50°C) at <75% RH |
| Storage Temperature: | -4°F to 140°F (-20°C to 60°C), 0 to 80% RH (with batteries removed) |
| Temperature Coefficient: | 0.1 x (specified accuracy) per 0.6°F (32°F to 64°F, 82°F to 122°F), per 1°C (0°C to 18°C, 28°C to 50°C) |
| Weight: | 0.33 lbs (150 g) |
| Water Resistant: | Designed to IP55 |
Includes
- (3) Job Link® Pipe Temp Probes
- (2) Job Link® Pressure Probes
- (3) Job Link® Psychrometer Probes
- (1) Padded Carrying Case
- (2) CPS 1/4" SAE Tee Valve Connectors
- (2) CPS 1/4" Brass Caps
Resources
Fieldpiece JL3RH Manual
Software / App
The measureQuick App supercharges a variety of BlueTooth smart tools with rich diagnostics, data logging and reporting capabilities. Now you can see intuitive visuals informing about each job, piece of equipment, or system all in one place!
Download the measureQuick App for your Android or iOS devices
App / Device Compatibility
- Requires mobile device with Bluetooth 4.0
