Fieldpiece VP833 RunQuick Dual Stage Vacuum Pump 8CFM, A3 Compatible
Travel light with one pump for A3, A2L and A1 Refrigerants
Performing a proper system evacuation prior to charging directly increases the expected life and efficiency of the system. Fieldpiece vacuum pumps provide a quick, clean, and easy way to get the job done fast. Good oil is the lifeblood of every evacuation. Fieldpiece vacuum pumps have a huge, backlit window on the oil tank to let you clearly see the condition of the oil and the fill level. With the Fieldpiece RunQuick® Oil Change System you can replace the oil in under 20 seconds without losing vacuum, even while the pump is running. And the extra wide base helps prevent tipping and spilling oil. Four inline ports in three different sizes give you easy hose routing and connection. The power cord can be placed on the handle for tangle free storage. Fieldpiece vacuum pumps are durable, lightweight, and portable for easy carrying to and from the job site.
Key Features & Benefits
- 8 CFM flow rate with 15 microns ultimate vacuum
- Works with all common A3, A2L and A1 refrigerants
- Class I, Division 2 Hazardous Locations certified for safe use with flammable A3 refrigerants
- 3/4 HP DC motor handles voltage fluctuations
- RunQuick® Oil Change System offers on-the-fly oil changes in seconds

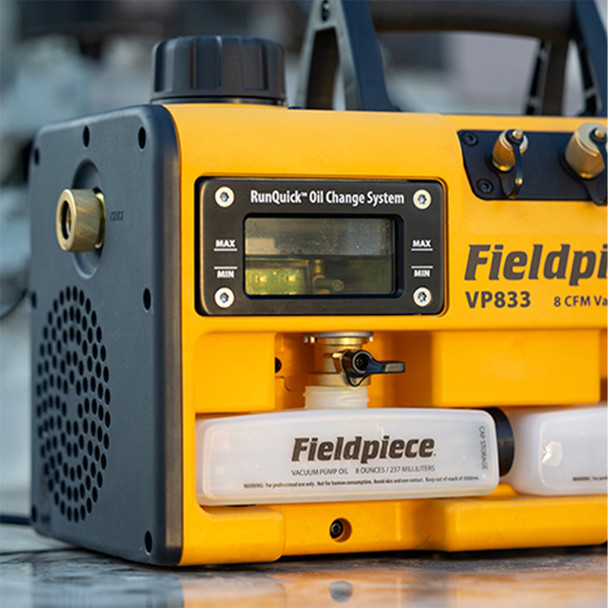

- Backlit oil reservoir to view the condition of your oil
- On-board, extra oil bottle storage
- 4 in-line ports for easy access: (1) 1/4", (2) 3/8", (1) 1/2"
- Rugged construction and stable base stays upright
- Weighs 29 lbs
The best keeps getting better.
Fieldpiece delivers uncompromising performance with full A3 refrigerant compatibility and Class I, Division 2 hazardous location certification. Handle every job quickly and confidently with ultra-fast 8 CFM evacuation and the trusted RunQuick® Oil Change System for maximum productivity.
Change oil without losing vacuum.
The revolutionary RunQuick® Oil Change System allows lightning-fast, 20-second oil changes while the pump is running and without losing vacuum. Massive, backlit window lets you clearly see the oil condition to maintain peak efficiency.
Designed for the job.
The VP833 Vacuum Pump comes with a 3/4 HP DC motor that handles voltage drops down to 90V that can occur with long extension cords. The pump offers an extra-wide base for stability and four in-line ports so you have easy hose access.
Specs
| VP833 Vacuum Pump Specs | |
|---|---|
| Flow Rate | 8 CFM |
| Compatible Refrigerants | For Use With: A3, A2L, and A1 Refrigerants, Not for Use With: R-702, R-717 |
| Ultimate Vacuum at Input Ports | 15 microns |
| Oil Capacity | 8 oz (237mL) |
| Oil Compatibility |
Fieldpiece Vacuum Pump Oil (Highly refined and optimized for proper sealing and lubrication) Fieldpiece part numbers: OIL8X3, OIL32, OIL128 |
| Oil Backlight | Blue LED |
| Oil Drain | Ball Valve |
| Port Sizes | (1) 1/4", (2) 3/8", (1) 1/2" |
| Compressor | Rotary vane, two stage |
| Motor | 3/4 HP Brushless DC |
| RPM | 2500 |
| Power Source | 120 VAC @ 60Hz 1 phase |
| Nominal Current Draw | 5A @ 120VAC |
| Dimensions |
7.9 inch x 11.7 inch x 16.0 inch (201 mm x 296 mm x 406 mm) |
| Weight | 29 lbs / 13 kg |
| Operating Environment | 23°F to 122°F (-5°C to 50°C) |
Includes
- (1) Fieldpiece VP833 RunQuick Dual Stage A3 Vacuum Pump, 8CFM
- (2) 8oz Oil
- (1) Power Cord
