DISCONTINUED Fieldpiece VP85 RunQuick Vacuum Pump - 8 CFM

SKU:
VP85
MPN:
VP85
Minimum Purchase:
1 unit
  • DISCONTINUED Fieldpiece VP85 RunQuick Vacuum Pump - 8 CFM
  • DISCONTINUED Fieldpiece VP85 RunQuick Vacuum Pump - 8 CFM
  • DISCONTINUED Fieldpiece VP85 RunQuick Vacuum Pump - 8 CFM
  • DISCONTINUED Fieldpiece VP85 RunQuick Vacuum Pump - 8 CFM
Discontinued

Sold Out

Description

Fieldpiece VP85 RunQuick Vacuum Pump - 8 CFM

Superior Performance

The Fieldpiece VP85 8 CFM Vacuum Pump makes evacuation easier and faster. Performing a proper system evacuation prior to charging directly increases the expected life and efficiency of the system. The VP85 Vacuum Pump provides a new view at system evacuation.

Good oil is the lifeblood of every evacuation - you need to know the condition of the oil and to change it easily with no mess. Clearly view the oil condition through the huge oil tank window of the Fieldpiece VP85 Vacuum Pump. The oil backlight helps to see the condition of the oil and if the fill level is correct.

With the RunQuick oil change system, you can replace the oil in under 20 seconds, even while the pump is running. The extra wide base helps prevent tipping and spilling oil. Four inline ports in three different sizes give you tidy hose routing and hose options (sold separately). Place the power cord on the handle for tangle free storage. Carry the machine to and from the job site easily and well protected.

Key Features:

  • Clear oil reservoir with backlight for viewing oil condition
  • Easy 20-second oil change with no vacuum loss
  • Prevents oil backflow into hoses and gauges
  • In-line 4-port manifold for easy access
  • Sturdy base keeps pump upright
  • Convenient gas ballast switch with LED indicator

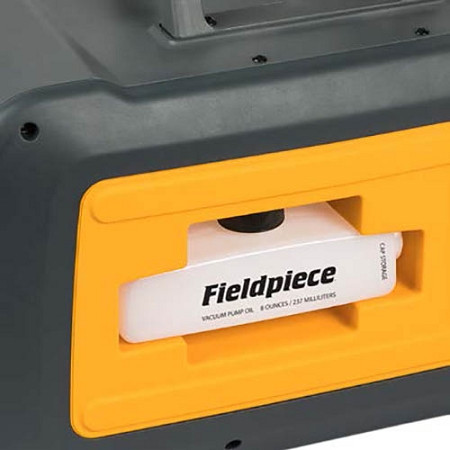

  • Storage space for spare oil bottle
  • Wide mouth fill port for easy oil changes
  • Equipped with 1/4 turn oil cap
  • Water resistant to withstand direct rain (IP24)
  • 15 micron ultimate vacuum
  • Lightweight, powerful 3/4 HP DC motor

Specs

Flow Rate 8 CFM
Oil Capacity 8 oz (237mL)
Oil Compatibility Fieldpiece Vacuum Pump Oil (highly refined and optimized for proper sealing and lubrication)
Oil Backlight Blue LED
Oil Drain Ball valve
Port Sizes (1) 1/4", (2) 3/8", (1) 1/2"
Compressor Rotary vane, two stage
Motor 3/4 HP Brushless DC
RPM 2500
Power Source 95 to 130 VAC @ 60 Hz
Nominal Current Draw 9.0 AAC
Ultimate Vacuum at Input Ports 15 microns
Dimensions 9.25" x 12.4" x 17.7" (235 mm x 315 mm x 450 mm)
Weight 28 lbs without oil
Operating Environment 30°F to 122°F (-1.1°C to 50°C)

Includes

  • (1) 8 CFM Vacuum Pump
  • (2) 8 oz Bottles Vacuum Pump Oil
  • (1) Operator's Manual

Videos



Resources

Fieldpiece VP55/VP85 Datasheet

Fieldpiece VP55/VP85 Datasheet

Fieldpiece VP55/VP85 Datasheet User Manual

Fieldpiece VP55/VP85 User Manual
