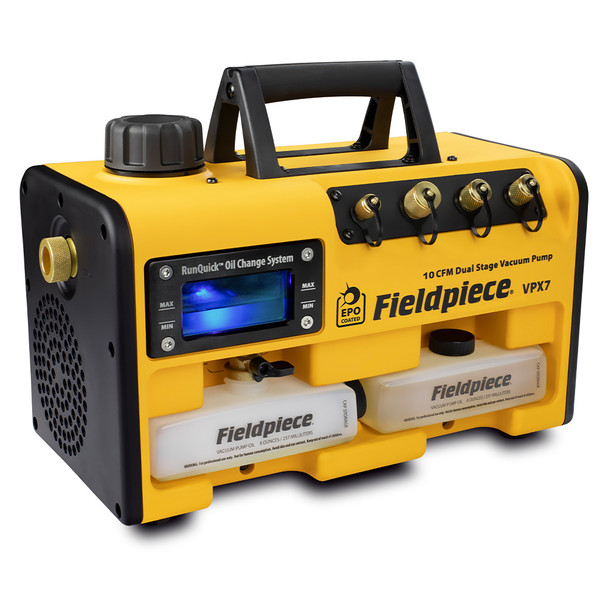

Fieldpiece VPX7 RunQuick Dual Stage Vacuum Pump 10CFM

The next generation of vacuum pumps.

If you're a commercial HVACR technician, pick up the VPX7 Vacuum Pump. It'll be pretty easy because it's the lightest weight pump in the industry - only 24 pounds of total weight! This patent-pending technology offers a hefty 10CFM. That's enough to quickly pull a deep vacuum on those commercial jobs.

Since clean oil matters, the VPX7 features a large oil reservoir window to give you an instant indicator of the condition of your oil and system. It also features our RunQuick Oil Change System that lets you change oil without powering down and without losing vacuum. You won't make a mess. The new removable oil window makes it easy to clean and easy to see operational lights regarding gas ballast and cold start.

The VPX7 has been designed to handle the demands of any job site. It's light enough to be carried anywhere and its extra-wide base means it won't tip or spill oil once you get it there. Also, it has four in-line ports, so you'll have plenty of room for running multiple hoses without tangles or clutter.

Key Features

  • 10 CFM flow rate with 15 microns ultimate vacuum
  • 3/4 HP DC motor
  • Patented lightest weight pump at 24 lbs.
  • RunQuick Oil Change System offers on-the-fly oil changes in seconds
  • Backlit oil reservoir - allows you to view the condition of your oil and system
  • Extra oil bottle storage
  • Port Sizes: (1) 1/4", (2) 3/8", (1) 1/2" for easy hose connections
  • Sturdy base stays upright
  • Small footprint
  • Quarter-turn gas ballast with LED indicator
  • Convenient, removable cord storage

How are they different than the VP85 & VP55?

Stepping in for the older VP85 and VP55 models, the VP87 and VP67 are lighter and faster, and just as durable and dependable.

The VPX7, a premier model designed with commercial HVACR in mind, is built lightweight and powerful to tackle even the biggest jobs!

The next generation of vacuum pumps are here from Fieldpiece! Compare and get the best one for the job.

Images link to product pages

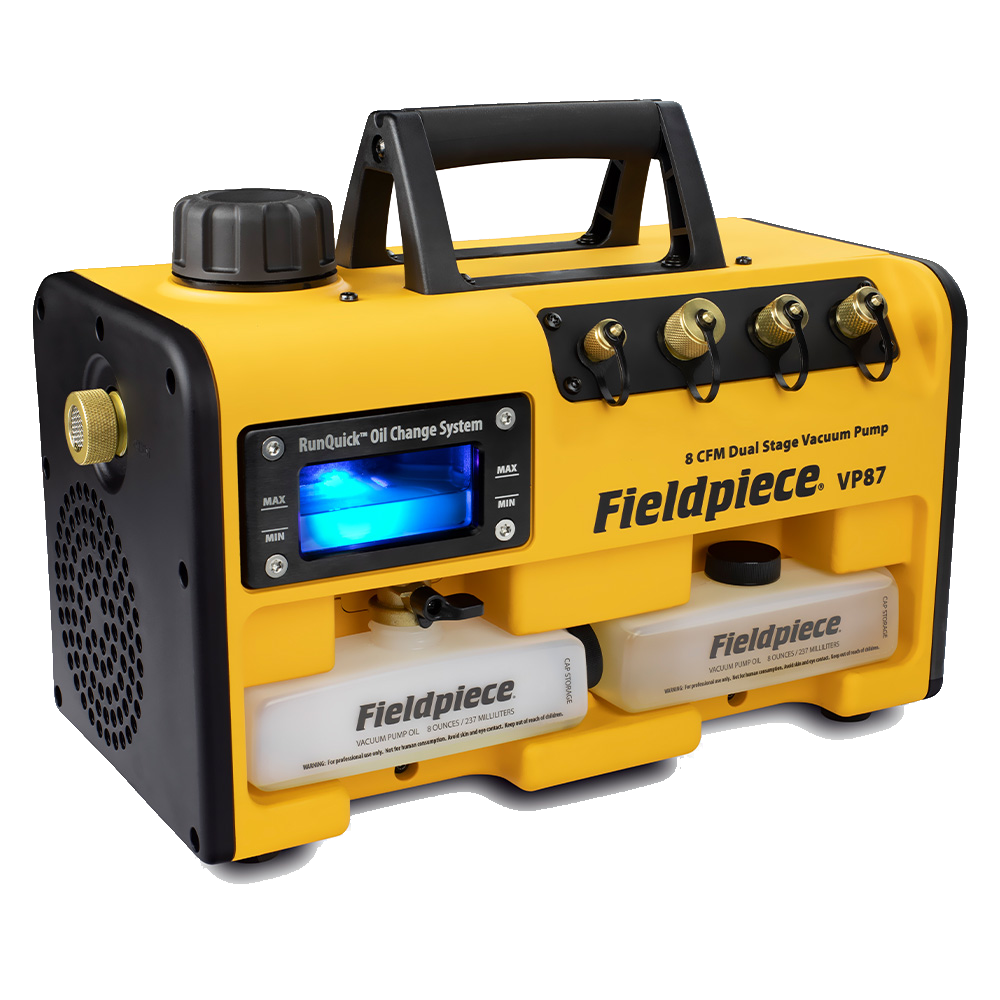

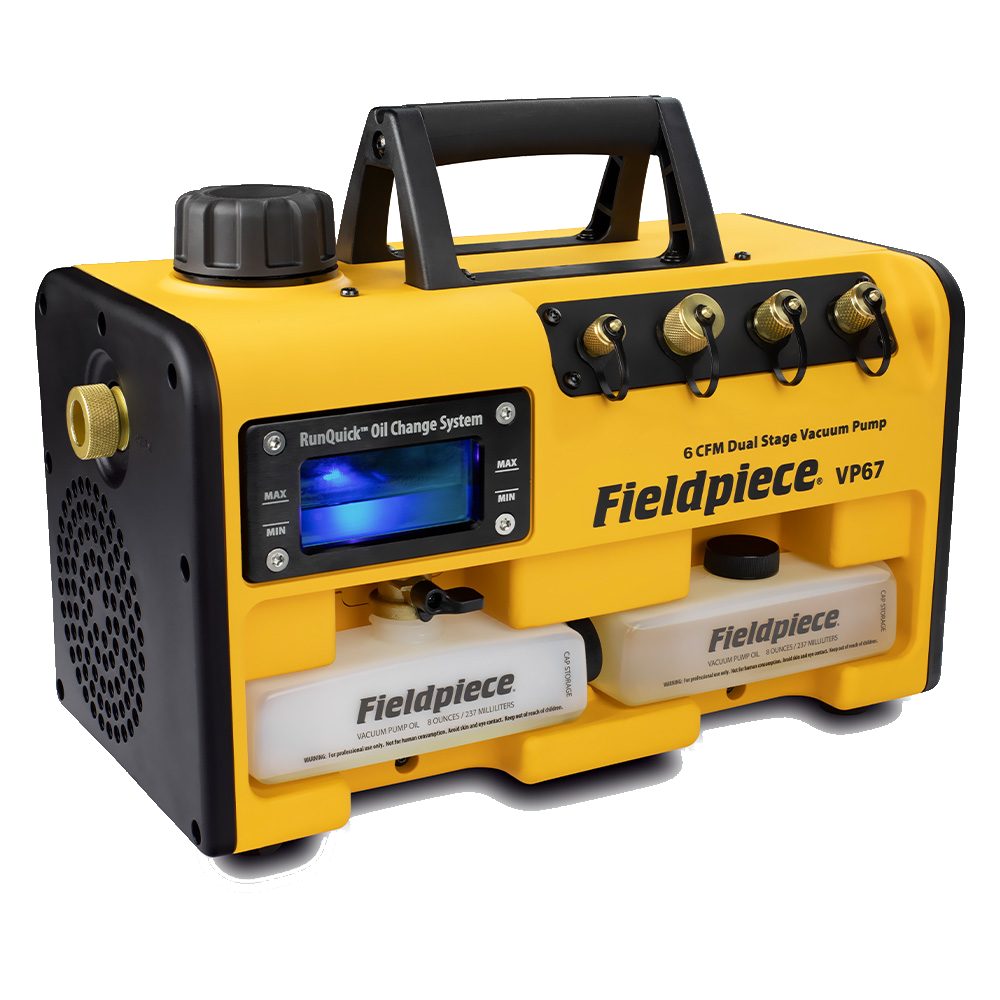

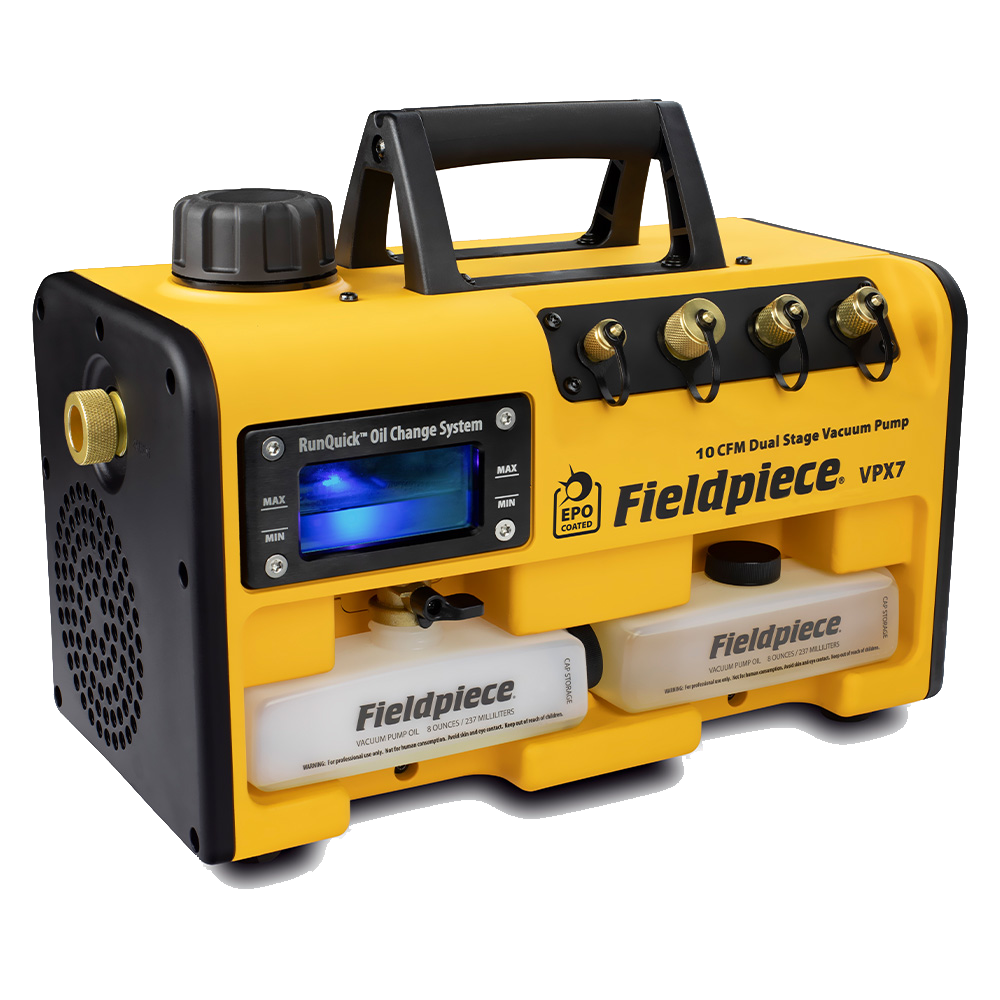

Fieldpiece logo Fieldpiece VP67 Fieldpiece VP87 Fieldpiece VPX7
Fieldpiece VP67 Fieldpiece VP87 Fieldpiece VPX7
Flow Rate, Nominal 6 CFM 8 CFM 10 CFM
Pump Body Cast Iron Cast Iron EPO Aluminum Alloy
Motor 1/2 HP AC Motor 3/4 HP DC Motor 3/4 HP DC Motor
Weight 29 lbs 27 lbs 24 lbs
Intake Port 4 in-line (1) 1/4", (2) 3/8", (1) 1/2" 4 in-line (1) 1/4", (2) 3/8", (1) 1/2" 4 in-line (1) 1/4", (2) 3/8", (1) 1/2"
RunQuick Oil Change System Two 8oz bottles of oil Two 8oz bottles of oil Two 8oz bottles of oil
Sturdy base, Small footprint 1346 cubic in 15 x 7.8 x 11.5 1346 cubic in 15 x 7.8 x 11.5 1346 cubic in 15 x 7.8 x 11.5
Backlit Oil Resevoir
Gas Ballast
Next Gen Refrigerants A2L Certified A2L Certified A2L Certified


Specs

Flow Rate 10 CFM
Oil Capacity 8 oz
Oil Compatibility Fieldpiece Vacuum Pump Oil
(Highly refined and optimized for proper sealing and lubrication)
Fieldpiece part numbers: OIL8X3, OIL32, OIL128
Oil Backlight Blue LED
Oil Drain Ball Valve
Port Sizes (1) 1/4", (2) 3/8", (1) 1/2"
Compressor Rotary vane, two stage
Motor 3/4 HP Brushless DC
RPM 2500
Power Source 120 VAC @ 50/60 Hz 1 phase
Nominal Current Draw 6 AAC
Ultimate Vacuum at Input Ports 15 microns
Dimensions 7.9 inch x 11.7 inch x 16.0 inch
(201 mm x 296 mm x 406 mm)
Weight 24 lb / 10.9 kgg
Operating Environment 30°F to 104°F (-1.1°C to 40°C)

Includes

  • (1) VPX7 10 CFM Vacuum Pump
  • (1) IEC Power Cord
  • (2) 8 Ounce Vacuum Pump Oil
  • (1) Manual
  • (1) 1 Year Warranty
