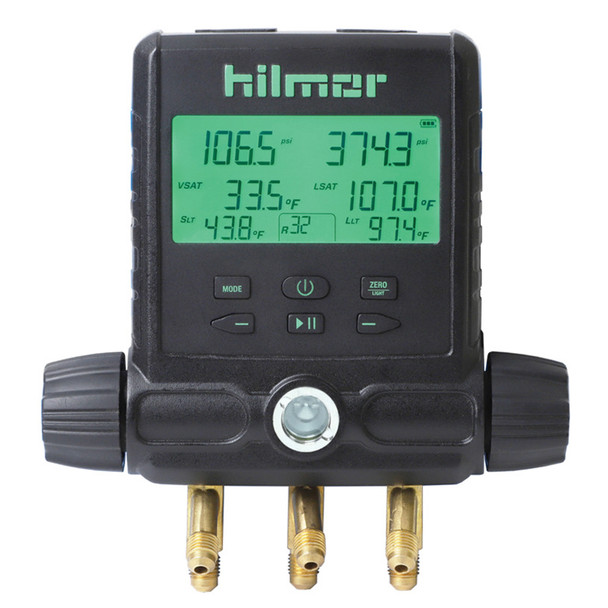

Hilmor HDM-1 Basic Digital Manifold
The HDM-1 hilmor digital manifold is engineered for precision HVAC/R diagnostics and is fully compatible with A2L refrigerants. It features 88 pre-loaded refrigerant profiles accessible via a large, high-contrast LCD screen. The integrated processor delivers real-time calculations of superheat, sub-cooling, saturation temperatures, line temperatures, and system pressures. Built for field durability, the compact housing includes ergonomic grips, oversized rubberized knobs, and tactile control buttons. Designed for intuitive operation, it combines advanced functionality with technician-friendly usability.
Key Features & Benefits
- A2L Compatible - Supports 88 refrigerant profiles including A1, A2, A2L, A3 and B1 Types
- Rugged & Durable - Glass-filled nylon housing with a tough, rubber over-mold
- Easy-to-Use - Turn it on, select your refrigerant with easy to navigate menus and intuitive button layout
- Twice the Confidence - LCD screen clearly displays VSAT/LSAT temperatures, pressures, temperatures, and calculated superheat/subcool
- Comfort Grip - Standard hilmor rubberized knobs provide secure grip in wet and dirty environments
- Extra Versatility - Keep hoses organized and off the ground using the front mounted storage connections
- Reads Temperatures Quickly - Includes 2 easy-to-use, K-style thermocouple clamps
Specs
| HDM-1 Manifold Specs | |
|---|---|
| Pressure |
Range: −14.5 to 800 psi Resolution: 0.5 psi Accuracy: 0.5% Full Scale Units: bar, psi, kPa, MPa, kg/cm² |
| Temperature |
Range: −40°F to 250°F Resolution: 0.2°F Accuracy: 0–175°F ±3°F Units: °F and °C |
| Port Type | (3) 1/4" standard NPT male flare fittings |
| Thermocouple Connector | K-Type |
| Battery Life | 200 hours |
| Power Source | 3x AA Batteries |
| Operating Temperature | 14°F to 120°F |
| Supported Refrigerants | R12, R124, R1234YF, R401C, R408A, R420A, R429A, R453A, R13, R125, R1234ZE, R402A, R409A, R421A, R434A, R454A, R14, R170, R134A, R402B, R410A, R421B, R437A, R454B, R22, R290, R141B, R403B, R410B, R422A, R438A, R455A, R23, R500, R142B, R404A, R412A, R422B, R441A, R458A, R32, R502, R143A, R406A, R413A, R422C, R443A, R507A, R113, R503, R152A, R407A, R414A, R422D, R448A, R508A, R114, R600, R236FA, R407B, R414B, R424A, R449A, R508B, R115, R718, R245FA, R407C, R416A, R426A, R450A, R514A, R116, R744, R401A, R407D, R417A, R427A, R452A, R600A, R123, R1233ZD, R401B, R407F, R417C, R428A, R452B, R601A |
Includes
- (1) Hilmor HDM-1 Basic Digital Manifold
