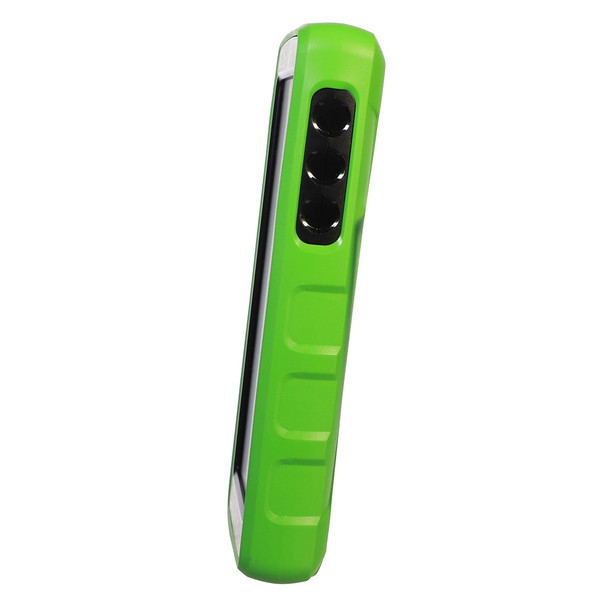

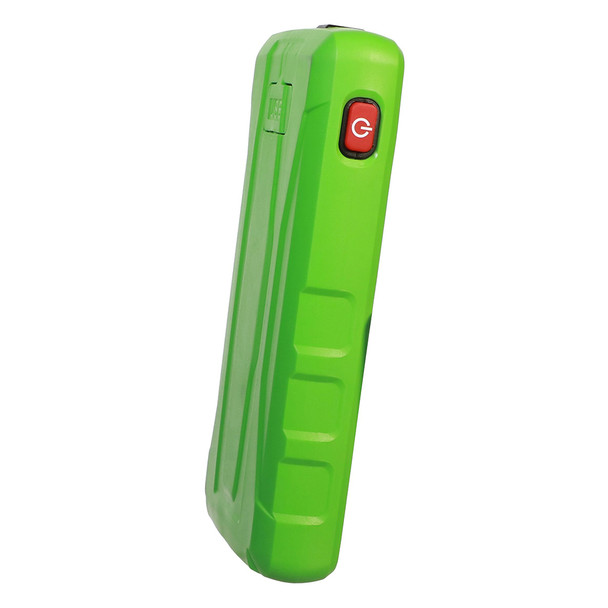

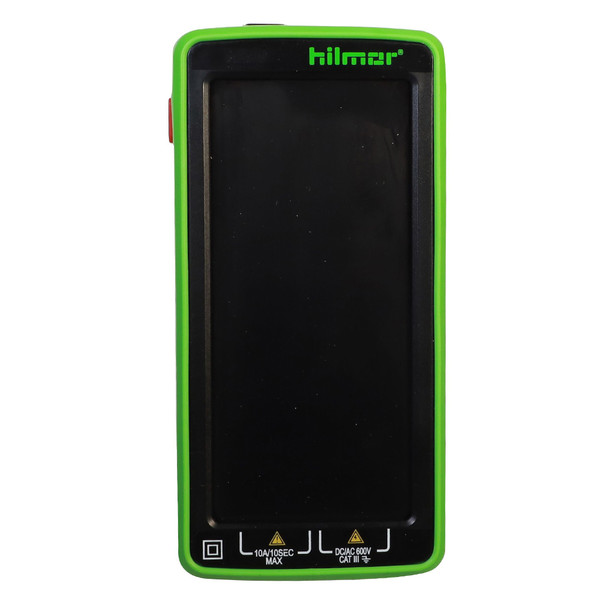

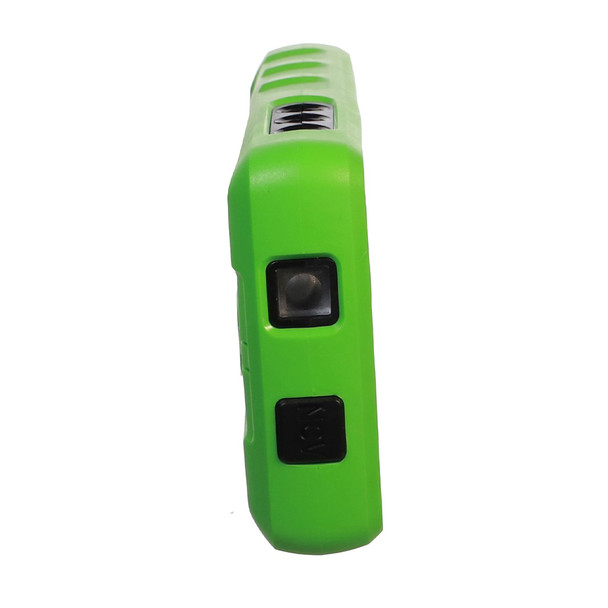

Hilmor HDTSMM Digital Touchscreen Multimeter
Smart Auto-Ranging Measurements with Advanced Touchscreen Diagnostics
The hilmor HDTSMM Digital Touchscreen Multimeter combines the convenience of smart auto-ranging operation with the flexibility of full manual testing modes. Designed for HVAC, electrical, and maintenance professionals, this true RMS multimeter features an intuitive color touchscreen display that automatically detects and measures voltage, resistance, and continuity in Auto Mode, helping you work faster and reduce setup time.
When more advanced measurements are required, Manual Mode provides comprehensive testing capabilities including AC/DC voltage and current, resistance, capacitance, frequency, temperature, diode testing, duty cycle analysis, non-contact voltage (NCV), and live wire detection. A built-in rechargeable lithium-ion battery, integrated flashlight, and included temperature probe make it a versatile diagnostic tool for both field service and troubleshooting applications.
Key Features & Benefits
- True RMS digital multimeter with color touchscreen display
- Auto Mode automatically measures voltage, resistance, and continuity
- Manual Mode supports AC/DC voltage, current, resistance, capacitance, frequency, temperature, diode, and duty cycle testing
- Non-contact voltage (NCV) and live wire detection functions
- Measures AC/DC voltage up to 600V and current up to 10A
- Capacitance range from 0.1nF to 100.0mF
- Temperature measurement range from -40°F to 1,832°F
- Built-in 600mAh rechargeable lithium-ion battery and flashlight
- Includes test leads and temperature probe
- IEC CAT III 600V rated with dual-fuse protection
Specs
| HDTSMM Multimeter Specs | |
|---|---|
| Display Type | Color Touchscreen |
| DC Voltage Range | 0.1V - 1000V |
| AC Voltage Range | 0.1V - 750V |
| AC/DC Current Range | 1mA - 10A |
| Resistance Range | 0.1Ω - 60MΩ |
| Capacitance Range | 0.1nF - 100.0mF |
| Temperature Range | -40°F to 1,832°F |
| Auto Mode Functions | Voltage, Resistance, Continuity |
| Manual Functions | Frequency, Duty Cycle, Diode Test, NCV Detection, Live Wire Detection |
| Battery | 600mAh Rechargeable Lithium-Ion |
| Included Accessories | Test Leads, Temperature Probe |
| Safety Rating | IEC CAT III 600V |
| Certifications | CE, RoHS, UL |
| Product Dimensions | 6" x 3" x 1" |
| Weight | 8.1 oz |
Includes
- (1) Hilmor HDTSMM Digital Touchscreen Multimeter
- (1) Test Leads
- (1) Temperature Probe
- (1) Storage Case
Resources
Hilmor HDTSMM Multimeter Datasheet
