ICM Controls 3VMS-60-480 3-Phase Voltage Monitor and Surge Protector
Integrated 3-Phase Voltage Monitoring and 150kA Surge Protection for 480VAC HVAC/R Equipment

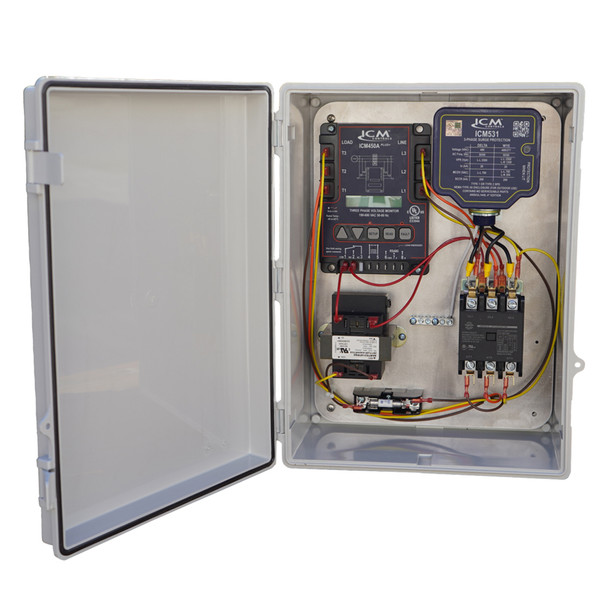

The ICM Controls 3VMS-60-480 combines the functionality of the ICM450A PLUS+ programmable 3-phase line voltage monitor and the ICM531 Type 1/Type 2 three-phase surge protective device into a single, easy-to-install solution for 480VAC three-phase HVAC/R equipment. Designed for residential and commercial applications, it helps protect motors, circuit boards, and other electrical components from damaging power conditions including overvoltage, undervoltage, phase loss, phase reversal, phase imbalance, and power surges.
During operation, the 3VMS-60-480 continuously monitors incoming line voltage while providing ongoing surge protection. When voltage conditions remain within programmed limits, the onboard 60A contactor energizes the connected equipment. If a fault is detected, the contactor opens to disconnect the load and automatically restores power once conditions return to an acceptable range. User-adjustable monitoring parameters allow application-specific customization, while the integrated ICM531 surge protection module suppresses surge events and features a diagnostic LED that indicates when surge protection is active and functioning properly.
Key Features & Benefits
- Factory pre-wired for 480VAC applications
- Modular design with field-replaceable components
- Field-programmable voltage monitor with backlit LCD display and extensive fault history
- Protects against overvoltage, undervoltage, phase loss, phase reversal, phase imbalance, and rapid short cycling
- Real-time clock provides date and time stamps for fault events
- Separate 3-pole, 60A contactor fully disconnects equipment from service power

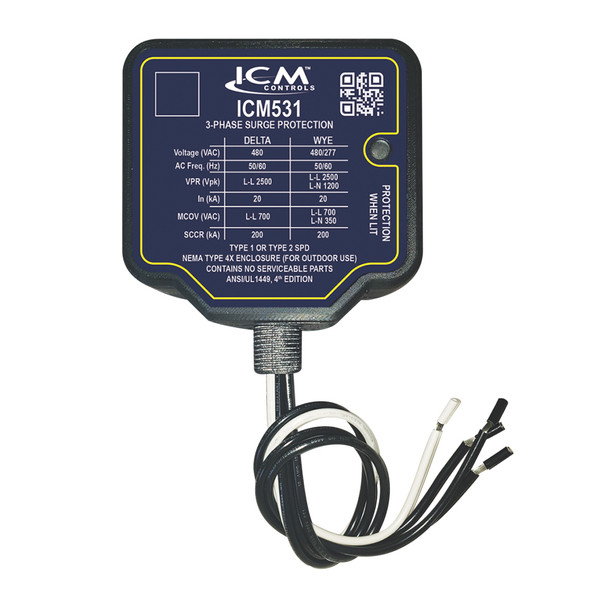

- TFMOV surge protection technology delivers reliable protection with up to 150kA surge capacity
- Designed to withstand the impact of major surge events
- NEMA 4X-rated enclosure for demanding indoor and outdoor environments
- Limited lifetime product warranty with up to a 3-year, $10,000 connected equipment warranty
Specs
| 3VMS-60-480 Voltage Monitor and Surge Protector Specs | |
|---|---|
| Nominal Voltage | 480 VAC |
| Operating Voltage | 400-525 VAC |
| Frequency | 50/60 Hz |
| SCCR | 5kA |
| Contactor Output | 60A FLA, 480 VAC |
| Maximum Surge Current | 150,000 amps |
| Surge Protection Indicator | Diagnostic green LED indicates surge protection is present |
| Protection Modes | L-L, L-N |
| Voltage Set Point | 480 VAC |
| Phase Unbalance | 7% |
| Over/Under Voltage | 5% |
| Delay on Break (ASC) | 15 seconds |
| Delay on Fault | 3 seconds |
| Reset Mode | 0 (Auto) |
| Control Mode | OFF |
| Date and Time | ON |
| Language | English |
| Weight | 13 lb |
| Dimensions | 15.7" L x 11.7" W x 6.3" D |
Includes
- (1) ICM Controls 3VMS-60-480 3-Phase Voltage Monitor and Surge Protector
ICM Controls Voltage Monitor and Surge Protector Manual
