Description
JB Climate Class Smart Probe Kit for measureQuick with Electrical
Extra probes and electrical clamp meter for a complete kit enhanced by measureQuick
Welcome to a new CLASS OF PRODUCTIVITY. The JB CLIMATE CLASS tool suite offers technicians flexible options and the latest technology for reading and measuring systems. WORK YOUR WAY with built-in screens, each tool can be used independently for immediate readings or seamlessly paired together for more dynamic measurements. To take diagnostics to a new level, CLIMATE CLASS tools are compatible with the JB GO V2 and measureQuick apps for remote readings, analysis and reporting. CLIMATE CLASS tools are all A2L COMPATIBLE and manufactured with the attention to detail and quality you've come to expect from JB. We added extra probes and the Redfish clamp meter for a comprehensive measurement kit compatible with the measureQuick app!

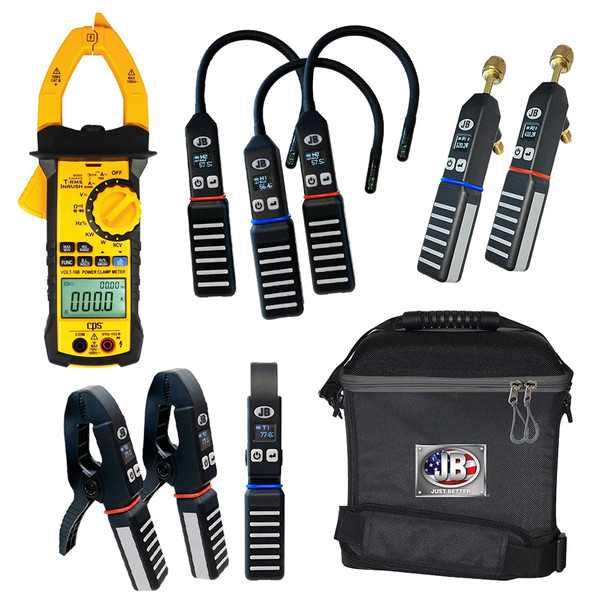

Kit Includes:
- (3) JB WC-1 Climate Class Universal Wireless Temperature Clamp
- (3) JB WH-1 Climate Class Universal Wireless Psychrometer / Hygrometer
- (2) JB WP-1 Climate Class Universal Wireless Pressure Probe
- (1) JB Probe Carrying Case
- (1) Redfish iDVM 550 Wireless BlueTooth Power Clamp Meter
JB WC-1 Climate Class Universal Wireless Temperature Clamp
Get accurate and reliable pipe temperature measurements in HVACR systems with the Wireless Pipe Temp Clamps from JB CLIMATE CLASS! With a thermistor sensor, bright OLED screen, and two-button interface with intuitive menu settings, our clamps provide the most precise readings - all while being wirelessly connected to our DM4-W Digital Manifolds, JB GO App or the measureQuick app. Don't wait - get the most durable and dependable clamps for all your HVACR pipe temperature reading needs, now!
Features
- Robust thermistor sensor for accurate pipe temperature measurements
- Bright OLED display displays information (does not require an IOS or Android app); includes battery life indicator
- Flexibility to use in standalone mode or with the JB GO V2 or measureQuick apps
- Over-molded parts for increased grip and durability
- Intuitive, simple-to-use menu
- IP54 rated for dust particles and rain
- Interchangeable color bands for easy clamp type identification
- Operates with two AA batteries (included)
JB WH-1 Climate Class Universal Wireless Psychrometer / Hygrometer
Get precise readings with the NEW Wireless Psychrometer from the JB CLIMATE CLASS family of tools. With its onscreen display, flexible wand for pin-pointing specific areas, and permanent cap that twists to protect the sensor, you'll get accurate measurements fast and easy. Plus, wirelessly connect it with the JB GO App, or the measureQuick App for ultimate convenience! Get ready to take your HVACR projects to a whole new level with these Wireless Psychrometers!
Features
- Measures temperature and humidity (Wet Bulb, Dry Bulb, Relative Humidity and Dew Point)
- Integrated swivel cap protects sensor when not in use
- Flexible wand for pin-pointing specific areas
- Bright OLED display displays information (does not require an IOS or Android app); includes battery life indicator
- Flexibility to use in standalone mode or with the JB GO V2 or measureQuick apps
- Over-molded parts for increased grip and durability
- Intuitive, simple-to-use menu
- IP54 rated for dust particles and rain
- Operates with two AA batteries (included)
JB WP-1 Climate Class Universal Wireless Pressure Probe
Featuring a digital integrated display, these versatile pressure probes provide accurate, real-time measurements, plus the convenience of wireless connectivity through the JB GO V2 or measureQuick apps.
Features
- Charge directly with integrated charging port—no manifold needed
- Bright OLED display displays information (does not require an IOS or Android app); includes battery life indicator
- Flexibility to use in standalone mode or with the JB GO V2 or measureQuick apps
- Over-molded parts for increased grip and durability
- Intuitive, simple-to-use menu
- IP54 rated for dust particles and rain
- Operates with two AA batteries (included)
Redfish iDVM 550 Wireless Power Clamp Meter
The Redfish iDVM 550 clamp power meter with Bluetooth Low Energy (BLE) is a hand held meter that combines both reliable and robust measurement capabilities with the connectivity to mobile devices provided by BLE. The meter provides the ability to measure AC current, AC/phase/power factor (PF), and non contact voltage (NCV).
Determine system efficiency with this professional grade Clamp Meter by measuring AC Volts, AC Amps, system kW and the power factor. Test everything from capacitors to compressors to even determining the EER on an AC system. Use App-captured data on MeasureQuick or the Supco® TechLink to discuss system operating costs on jobs.
In addition to the measurement capabilities of the meter, it also provides the following features:
- Jaw opening 40mm/1.6"
- Auto-ranging or manual ranging selectable
- Automatic power shutoff after 1 minute of detected inactivity
- True RMS
- Inrush current measurement
- Display backlight and clamp flashlight (while in current mode)
- Low voltage indicator on display
- Relative measurement
- Reading hold function
- Max and Min measurement
- IP54 - ingress protection from dirt and water
- Ability to turn off the BLE to extend battery life
- 1 year Warranty
- NOTE: User manual available only by PDF Download (LINK)
Download the JB GO V2 App for your Android or iOS devices today!
Experience a seamless and intuitive interface that optimizes your HVACR workflow and streamlines your tasks. By leveraging the power of wireless technology, the app gives you access to real-time data to make informed decisions and provide top-notch customer service.
App features:
- Real-Time Data Insights - Access live dynamic measurements and critical system information to quickly and accurately diagnose HVACR systems.
- Hassle-Free Documentation - Effortlessly document readings and generate comprehensive trending reports to share with customers, and enhance transparency, communication and trust.
- Enhanced Productivity - Create a synchronized network that simplifies complex tasks and boosts overall efficiency and accuracy.
- Intuitive Interface - User-friendly design ensures easy navigation and quick access to essential tools and features.
- Future-Ready - JB remains committed to innovation and will continue to introduce cutting-edge wireless tools, ensuring HVACR professionals have access to the latest advancements in the industry. Elevate your efficiency, productivity, and customer service by downloading the app today. With JB GO V2 you're equipped to deliver excellence, every step of the way.
The One App To Rule Them All.
Discover the unique advantage of measureQuick - the only HVAC app that seamlessly connects with the industry's top Bluetooth-enabled tools. This platform integrates with leading devices from manufacturers like Testo, Fieldpiece, and iManifold, providing a single interface to gather crucial data and streamline your diagnostic process. With measureQuick, you can harness the power of cutting-edge technology to enhance your team's capabilities and deliver exceptional service to your customers. Experience the unparalleled convenience and efficiency of connecting your favorite tools all in one place, exclusively with measureQuick.
Download the measureQuick App for your Android or iOS devices
The Quickest Way to Consistent Results
App features:
- Guided Workflows - Blazing fast project templates, tuned to eliminate errors and decrease time on the job site.
- mQ Cloud - Pre-populate jobs before getting to site, and live-stream measurements from any tech, anywhere.
- ACCA QI Certificates - Prove to your clients that you're the best in town through a certified report and 3rd party validation
- Streamlined Connectivity - Rock-solid bluetooth management of every probe and tool, regardless of where you are on the job site.
Specs
| WC Temperature Clamp | ||
|---|---|---|
| Sensor Type | Thermistor | |
| Temperature Units | Fahrenheit, Celsius | |
| Temperature Range | -40 to 302 °F | |
| Accuracy | ±2.3 °F (-4 to 185 °F) | |
| Resolution | 0.1 °F | |
| Pipe Diameter Range | 1/4" to 2"; Large jaws | |
| Bluetooth Range | Up to 350ft (92m) - Dependent on environment | |
| Power Supply | Two AA batteries (included) | |
| Battery Life | Approximately 120 hours; indicator light | |
| Operating Temperature | +32°F to 122°F (0°C to +50°C) | |
| Storage Temperature | +14°F to 140°F (-10°C to +60°C) | |
| Storage Humidity | 85% RH @113°F (45°C), non-condensing | |
| Display | OLED | |
| Unit Weight | 6.5 oz | |
| Compatibility | Min iOS Ver. 10.0+, Min Android Ver. 6.0+ |
|
| IP Rating | Designed to meet IP-54 | WP Pressure Probe |
| Pressure Range | 0-800 PSI | |
| Accuracy | ±4 PSI | |
| Resolution | 0.1 PSI | |
| Pressure Units | psi, kPa | |
| Female Flare size | 1/4" SAE Flare | |
| Bluetooth® Range | Up to 350ft (106.6m) dependent on environment | |
| Power Supply | 2 x AA batteries (included) | |
| Battery Life | Approximately 80 hours; indicator light | |
| Storage Temperature | +14°F to 140°F (-10°C to +60°C) | |
| Operating Temperature | -10°F to 120°F (-23°C to +49°C) | |
| Display | OLED | |
| Unit Weight | 8 oz | |
| Compatibility | Min iOS Version: 10.0+, Min Android Version: 6.0+ | |
| IP Rating | IP54 | |
| Warranty | 1 Year | WH Humidity Probe |
| Sensor Type | Digital Humidity and Temperature Sensor | |
| Temperature Units | Fahrenheit, Celsius | |
| Temperature Range | -40 to +125°C (-40 to +275°F) | |
| Temperature Accuracy | ± 0.2°C | |
| Humidity Range | 0% to 100% Relative Humidity | |
| Humidity Accuracy | ± 2% RH | |
| Bluetooth Range | Up to 350ft - Dependent on environment | |
| Power Supply | Two AA batteries (included) | |
| Battery Life | Approximately 120 hours | |
| Operating Temperature | +32°F to 122°F (0°C to +50°C) | |
| Storage Temperature | +14°F to 140°F (-10°C to +60°C) | |
| Storage Humidity | 85% RH @113°F (45°C), non-condensing | |
| Display | OLED | |
| Unit Weight | 6.2 oz | |
| Compatibility | Min iOS Ver. 10.0+, Min Android Ver. 6.0+ |
|
| IP Rating | Designed to meet IP-54 | |
| Redfish Model | iDVM 550 Clamp Meter | |
| Type | Single Phase Power Clamp Meter | |
| Specifications | Ranges | Accuracy |
| DC Voltage | 6V/60V/600V | ±(0.5% + 5) |
| 1000V | ±(0.8% + 4) | |
| AC Voltage | 6V/60V/600V | ±(0.6% + 5) |
| 750V | ±(0.8% + 4) | |
| AC Current | 60A/600A/1000A | ±(2.0% + 8) |
| Active Power | 3.6W~~750KW | ±(3.0% + 5) |
| Apparent Power | 3.6VA~~750KVA | ±(3.0% + 5) |
| Reactive Power | 3.6VAr~~750KVAr | ±(3.0% + 5) |
| Power Factor | 0.3~~1 | ±(0.02% + 2) |
| Frequency From V&A | 40~1KHz | ±(0.5% + 1) |
| Harmonic Measurement |
Harmonic Number: 1 | ±(3.0% + 10) |
| Harmonic Number: 2~6 | ±(3.5% + 10) | |
| Harmonic Number: 7~8 | ±(4.5% + 10) | |
| Harmonic Number: 9~10 | ±(5.0% + 10) | |
| Harmonic Number: 11~15 | ±(7.0% + 10) | |
| Harmonic Number: 16~20 | ±(10% + 10) | |
| Resistance | 600O/6kO/60kO/600kO | ±(0.8% + 3) |
| 6MO/60MO | ±(2.0% + 5) | |
| Capacitance | 9.999nF/ 99.99nF/ 999.9nF/ 9.999µF/ 99.99µF/ 999.9µF/ 9.999mF/ 99.99mF |
±(3.0% + 5) |
| Frequency From Hz | 9.999Hz/ 99.99Hz/ 999.9Hz/ 9.999KHz/ 99.99KHz/ 999.9KHz/ 9.999MHz/ |
±(0.3% + 5) |
| Duty Cycle | 0.1%-99.9% | ±(3.0% + 3) |
| Functions | Features | |
| Display Counts | 6000 3-3/4 digit resolution | |
| Auto Range | Yes | |
| Manual Range | Yes | |
| Relative Range | Yes | |
| True RMS | Yes | |
| Inrush Current | Yes (Current) | |
| NCV | Yes | |
| Diode | Yes <=3V | |
| Continuity | Yes <50O | |
| Max/MIN | Yes | |
| Data Hold | Yes | |
| Auto Power Off | Yes (30 min) | |
| Low Bat. Display | Yes | |
| Display Backlight | Yes (1 min) | |
| Worklight | Yes | |
| Lead Holder | Yes | |
| BlueTooth | Yes | |
| Housing | Double Molding | |
| Power Supply | 9V | |
| Saftey Rating | CAT III 1000V | |
| Certification | CE/ ETL, rated to IEC/EN61010 Safety Standards | |
Details on InRush Current Measurement:
The surge in current at the start up of many electrical devices is called the InRush current. It often embodies the energy required to "get things moving" and rapidly drops to the running current of the device. You must use a specially designed clamp type meter (like the Redfish iDVM 550) to measure InRush. The iDVM 550 is the least expensive meter that we have found that incorporates the InRush feature.
- Simply turn on the iDVM 550 and "clamp" the meter around the Hot wire.
- Switch the selector to InRush and turn the equipment on.
- The inrush current (spike) is displayed in the meter's display.
Inrush current may be higher than the rating of the device's circuit breaker, yet the breaker (or overload) does not trip as it is a function of total energy or time vs current. It is common to see InRush currents that are 4 to 10 times greater than the normal running current. InRush current analysis is often done over time in conjunction with preventive maintenance, thus allowing you to watch a system trend and see if the motor or motor circuitry is degrading.
Learn more about InRush current applications at the HVACRSchool.com
Includes
- (3) JB WC-1 Climate Class Universal Wireless Temperature Clamp
- (3) JB WH-1 Climate Class Universal Wireless Psychrometer / Hygrometer
- (2) JB WP-1 Climate Class Universal Wireless Pressure Probe
- (1) JB Probe Carrying Case
- (16) AA Batteries
- (1) Redfish iDVM 550 Wireless BlueTooth Power Clamp Meter
- (1) iDVM550 Clamp Meter
- (1) Test Leads
- (1) Alligator clip
- (1) Line splitter: iDVMSPLITTER
- (1) Carry bag
- (1) 9V Battery
- NOTE: User Manual is available by PDF download only (LINK)
