Description

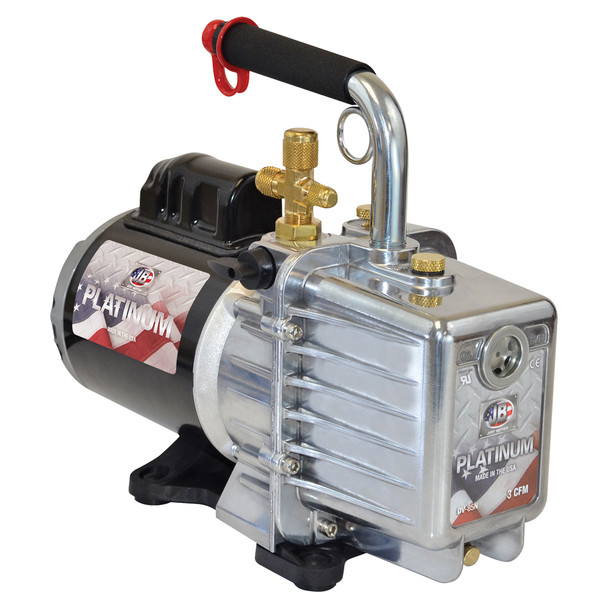

JB DV-85N PLATINUM 3 CFM Vacuum Pump with 1qt Oil
The American made PLATINUM® Series Vacuum Pump is the top of the line for both quality and durability. Subjected to rigorous performance standards, the PLATINUM® series is the pump of choice for HVAC/R technicians.
Key Features & Benefits
- 2-Stage direct drive with 1/2 HP 1725 RPM motor
- Easy access 1/4", 3/8" or 1/2" intake tee
- 15 micron vacuum rating
- Gas ballast and blank-off isolation valve
- All metal construction with finned aluminum heavy-duty housing, brass fittings, stainless steel valving and splash guard
- Ergonomic 1/2" NPT break-resistant exhaust handle with lift ring
- Large, easy-to-see oil level sight glass with easy access oil fill on cover
- O-ring sealed oil drain valve to prevent leaks and tethered safety cap to prevent oil spills
- 100% field repairable
Specs
| JB DV-85N Vacuum Pump Specs | |
|---|---|
| CFM | 3 CFM (85 l/m) |
| Motor | 1/2 HP, 1725 RPM |
| Voltage | 115v/60Hz |
| Intake Port | 1/4" x 3/8" |
| Oil Capacity | 26oz (769cc) |
| Shipping Dimensions | 17-5/8" x 9-1/8" x 14" |
| Weight | 30lbs (13.6kg) |
Includes
- (1) JB DV-85N PLATINUM 3 CFM Vacuum Pump
- (1) JB DVO-12 BLACK GOLD Vacuum Pump Oil - Quart
JB PLATINUM Vacuum Pump Manual
