Description

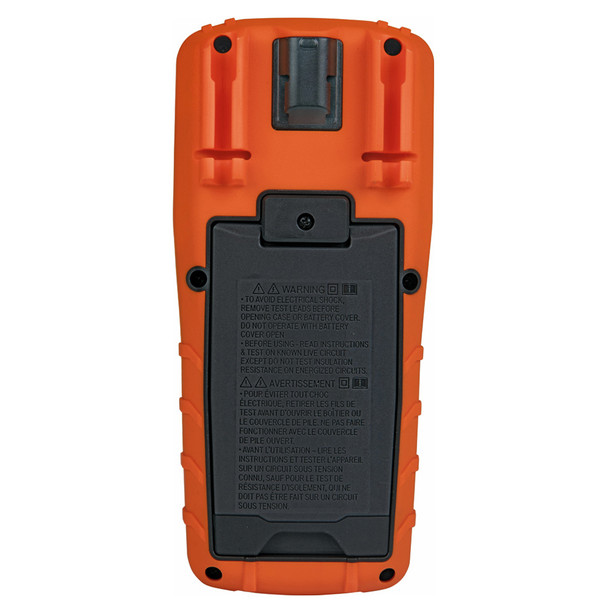

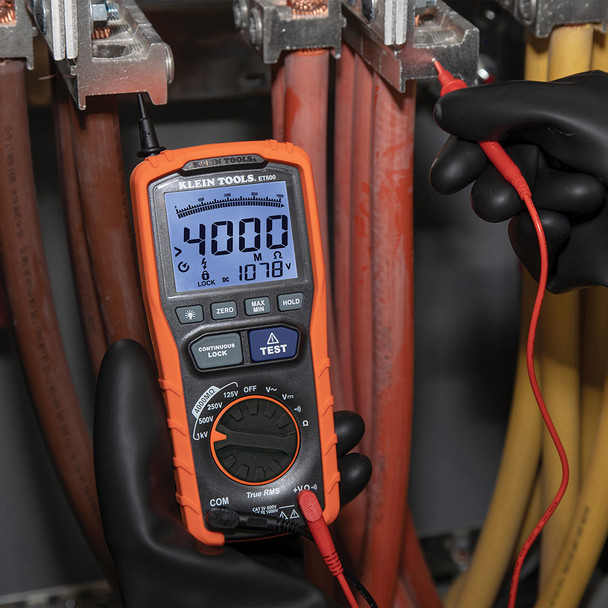

Klein Tools ET600 Insulation Resistance Tester Megohmmeter
Test up to 4000MΩ at 125V, 250V, 500V, and 1000V DC
The ET600 is a multi-function Megohmmeter capable of producing 125V, 250V, 500V, and 1000V test voltages for insulation resistance measurements up to 4000MΩ. Also tests AC/DC voltages up to 1000V with automatic ranging True RMS technology. Convenient lock function and built-in stand for hands free operation. Dual-function backlit display monitors process.
Key Features & Benefits
- Voltage Tester tests insulation resistance up to 4000 MΩ at 125V, 250V, 500V, and 1000V DC
- Megohmmeter with test and lock buttons for simple insulation testing
- Warning alarm and high voltage icon for detection of voltage
- Measures up to 1000V AC/DC, resistance, and continuity
- Automatic ranging True Root Mean Square (TRMS) technology for increased accuracy
- Backlit display with bar graph, Auto-power off, High Voltage, Max/Min, and Hold icons
- Low battery indicator with easily replaceable battery and fuse

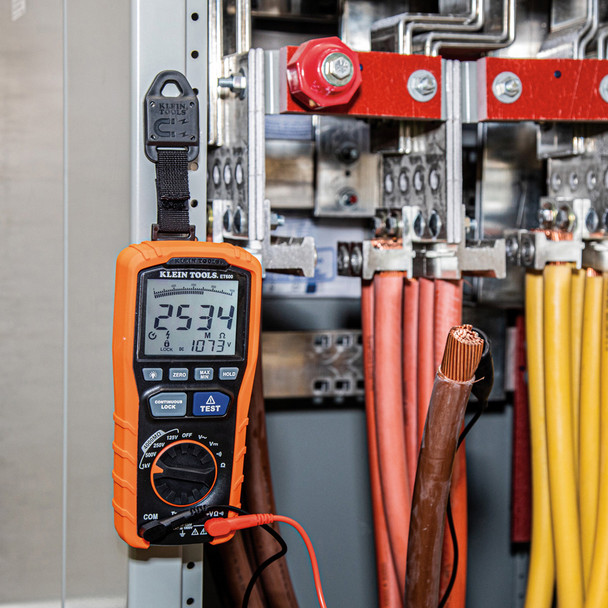

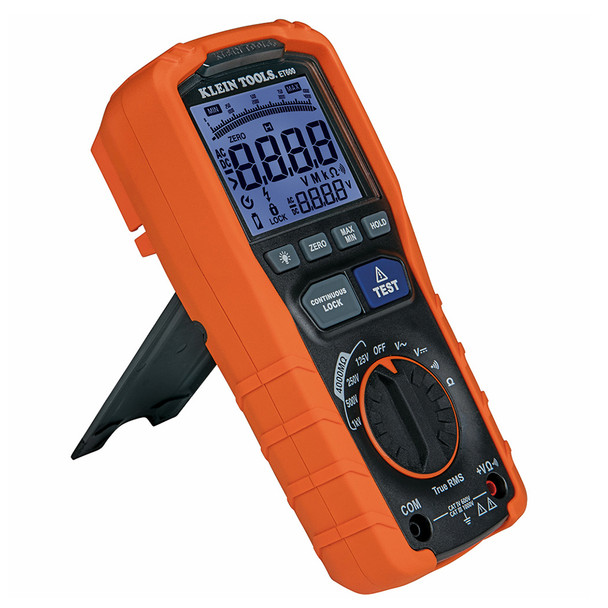

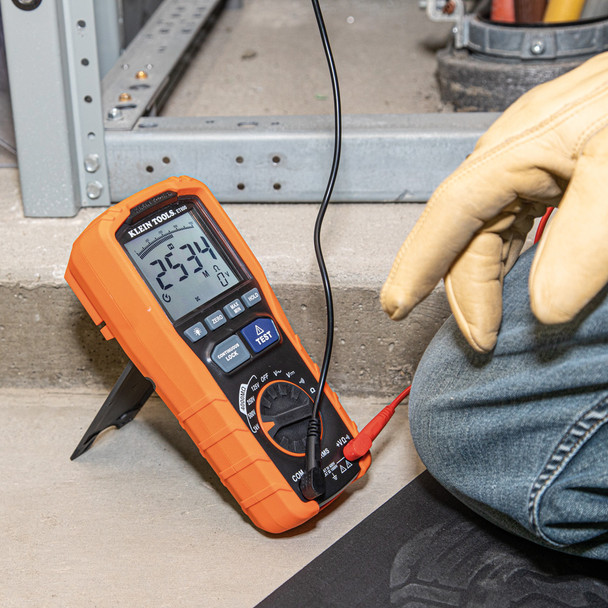

- Built-in stand and optional magnetic hanger for hands free operation
- Test verification of conformity to EN61557-1,-2,-4
- CAT IV 600V and CAT III 1000V safety rating
- Can be used with the Klein Tools Rare Earth Magnetic Hanger with Strap

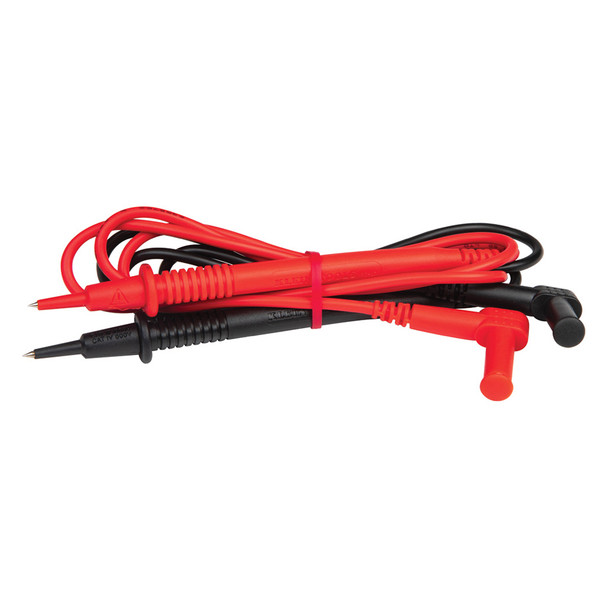

- Includes Right Angle Test Leads and Heavy-Duty Alligator Clip Test Leads
Specs
| Klein ET600 Specs | |
|---|---|
| Type | Insulation Resistance Tester |
| Application | Installation, Troubleshooting, and Preventive Maintenance of Electrical Wiring and Electrical Equipment, Measures 1000 V AC/DC, Resistance, and Continuity |
| Special Features | Lock Button for Insulation Resistance Testing |
| Material | ABS, Polycarbonate, Electrical Components |
| Batteries | 6 x AA |
| Display | 4000 Count LCD |
| Color | Orange/Black |
| Functions | Insulation Resistance, Voltage AC/DC, Resistance, and Continuity |
| Voltage | 125 V, 250 V, 500 V, and 1000 V DC; 1000 V AC/DC |
| Ohms (Resistance) | 4000 MΩ |
| Standard | CAT IV 600 V/CAT III 1000 V, EN61557-1, EN61557-2, EN61557-4 |
| Included | Tester; CAT III/CAT IV Safety Rated Test Leads; Heavy-duty Alligator Clip Test Leads; Batteries; Carrying Case; Instruction Manual |
| Overall Length | 7.93" (20.2 cm) |
| Overall Height | 2.32" (5.9 cm) |
| Overall Width | 3.59" (9.1 cm) |
| Weight | 1.4 lb (0.6 kg) |
| UPC | 092644692420 |
Includes
- (1) Klein Tools ET600 Insulation Resistance Tester Megohmmeter
- (1) Right Angle Test Leads
- (1) Heavy-duty Alligator Test Leads
- (1) Carrying Case
- (1) Manual
Klein ET600 Insulation Resistance Tester Manual
