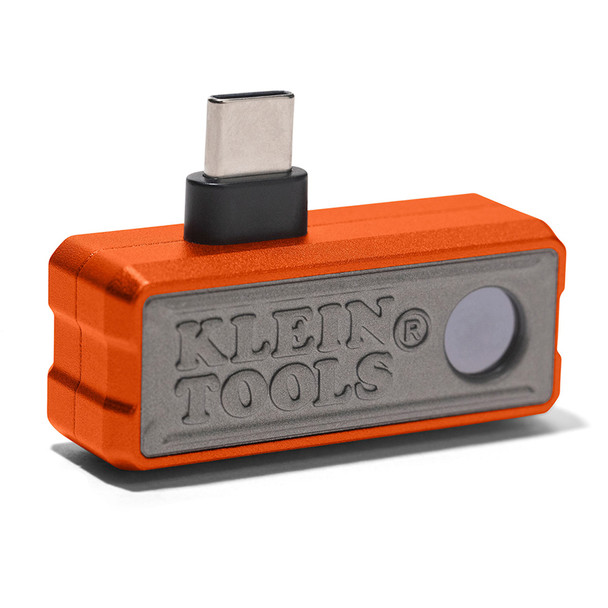

Klein Tools TI223 Mobile Thermal Imager For Android® and iOS®, USB-C Connection, 160 X 120
Turn Your Smartphone into a Powerful Thermal Diagnostic Tool
Klein Tools Mobile Thermal Imager transforms smartphones into professional thermal imaging cameras with 19,200-pixel resolution. This compact thermal imager is designed to capture hot and cold spots from -4 to 752-Degree Fahrenheit in three color palettes. Features touch screen temperature modes including spot, high/low, and differential readout. Time-lapse video capability enables comprehensive documentation, and it fits phone cases up to 1/5-Inch with iOS® and Android® compatibility.
Key Features & Benefits
- High-resolution 19,200-pixel thermal imaging delivers excellent image quality for troubleshooting hot and cold spots
- USB-C compatibility works with iOS® and Android® devices, fitting phone cases up to 1/5-inch thick
- Convenient capture and storage of thermal images and video, including a time-lapse video feature

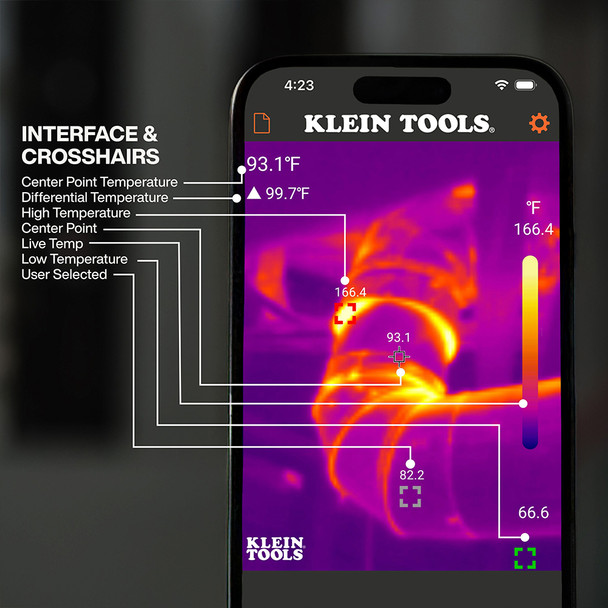

- Multiple temperature modes with touchscreen spot temperature, high/low, and differential temperature readouts
- Wide temperature range measures -4° to 752°F using three color palettes
- Compact, portable design enables easy transport and case compatibility for on-the-go thermal inspections
Specs
| Mobile Thermal Imager Specs | |
|---|---|
| Type | Thermal Imager |
| Application | View Hot and Cold Spots for Instant Troubleshooting |
| Special Features | High and Low Temperature Points, Touch-Point Temperature, Options for Temperature Alarms, Time-Lapse Video, 3 Color Palettes, No Batteries Needed |
| Display | External Device |
| Display Resolution | Dependent on Phone |
| Picture in Picture | No |
| Sensor Type | VOx Microbolometer |
| Sensor Resolution | 19,200 Pixels |
| Thermal Sensitivity | <50 mK at 25°C |
| Spectral Range | 8 to 14 μm |
| Temperature Range | -4° to 752°F (-20° to 400°C) |
| Accuracy | ±2°C or 2% (Whichever is Greater); Not Calibrated Below -10°C (14°F) |
| Field of View | 56° Horizontal, 71° Diagonal |
| Emissivity | 0.01 to 0.99, Adjustable |
| Color Palettes | Ironbow, Rainbow, Grayscale |
| Photo Capture | Yes |
| Maximum Frames per Second | <9 Hz |
| Memory | External Device |
| File Formats | JPG |
| Included | Thermal Imager; Hard Storage Case with Carabiner; Instructions |
| Overall Length | 1.77 in (4.5 cm) |
| Overall Width | 0.62 in (1.6 cm) |
| Overall Height | 1.23 in (3.1 cm) |
| Material | Aluminum Housing, Electronic Components |
| Standards | CE |
| Weight | 0.9 oz (26 g) |
| UPC | 092644694813 |
Includes

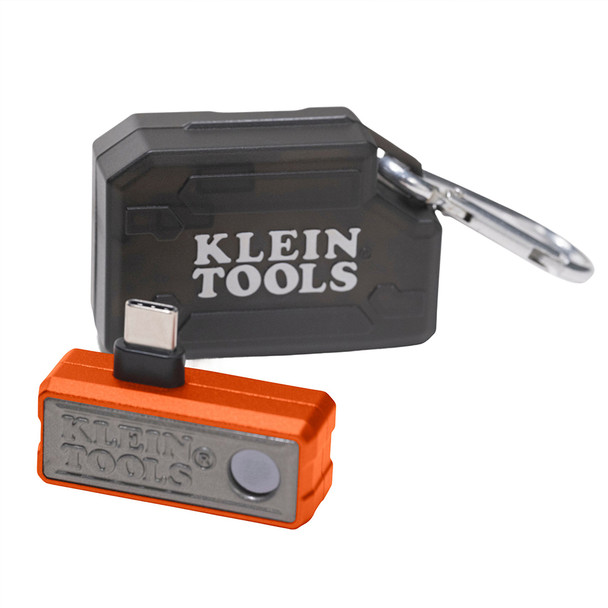

- (1) Klein Tools TI223 Mobile Thermal Imager For Android® and iOS®, USB-C
- (1) Carry Case
