Description

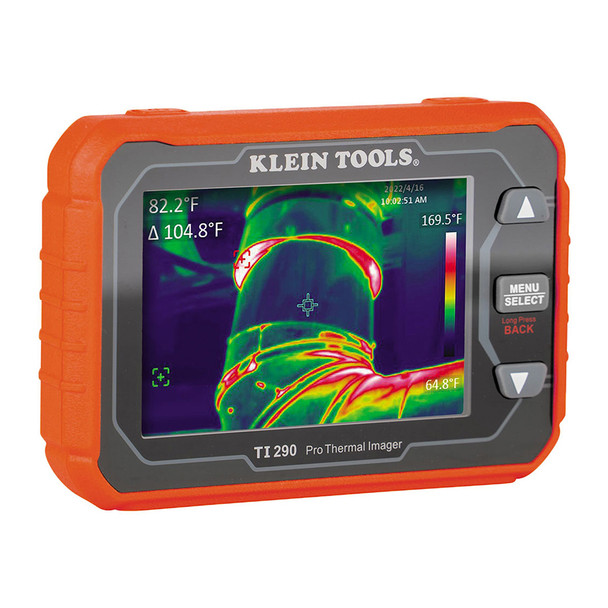

Klein Tools TI290 Professional Thermal Imaging Camera
Quickly identify hot and cold spots with compact 76,800 pixel images
The Klein Tools TI290 is a high resolution, Wi-Fi enabled, professional model USB rechargeable Thermal Imager. The large LCD displays unseen hot and cold spots for instant troubleshooting. Excellent resolution with over 76,800 pixels and your choice of three color palettes. The meter provides high and low temperature points, crosshairs to pinpoint specific temperatures, and options for temperature alarms. App is available for free in Google Play™ store and in the App Store.
Key Features & Benefits
- Thermal imager with over 76,800 pixels for identifying hot and cold spots
- Capture, store, and share thermal images with built-in Wi-Fi connectivity
- User selectable high and low temperature alarms from -40 °F to 752 °F (-4 °C to 400 °C)
- Adjustable emissivity from 0.01 to 0.99 for accurate temperature measurements
- Selectable color palettes including ironbow, rainbow, and grayscale
- Rechargeable lithium-ion battery
- Companion app available in the Google Play™ Store and Apple App Store
- Includes thermal imager, USB-C charging cable, molded soft storage case with carabiner, and instructions
- Durable design tested to withstand drops up to 6.6 ft (2 m)
Specs
| Klein Handheld Thermal Imager Specs | |
|---|---|
| Type | Thermal Imager |
| Application | View hot and cold spots for instant troubleshooting |
| Special Features | Wi-Fi transfer, high and low temperature points, crosshairs to pinpoint specific temperatures, temperature alarm options, three color palettes |
| Display | 3.5" (8.9 cm) TFT LCD |
| Display Resolution | 480 x 320 pixels |
| Sensor Type | VOx microbolometer |
| Sensor Resolution | 76,800 pixels |
| Thermal Sensitivity | <50 mK |
| Spectral Range | 8 to 14 µm |
| Temperature Range | -40 °F to 752 °F (-4 °C to 400 °C) |
| Accuracy | ±3.6 °F (±2 °C) or 2% (whichever is greater) |
| Field of View | 56° ±2.8° |
| Emissivity | 0.01 to 0.99 adjustable |
| Color Palettes | Ironbow, Rainbow, Grayscale |
| Photo Capture | Yes with Wi-Fi data transfer |
| Maximum Frame Rate | <9 Hz |
| Memory | Up to 10,000 images |
| Battery | Rechargeable lithium-ion |
| Battery Life | 5 hours |
| Included | Thermal imager, USB charging cable, molded soft storage case with carabiner, instructions |
| Overall Length | 4.5" (11.3 cm) |
| Overall Width | 1.1" (2.8 cm) |
| Overall Height | 3.1" (8 cm) |
| Weight | 8.3 oz (235 g) |
| UPC | 092644693625 |

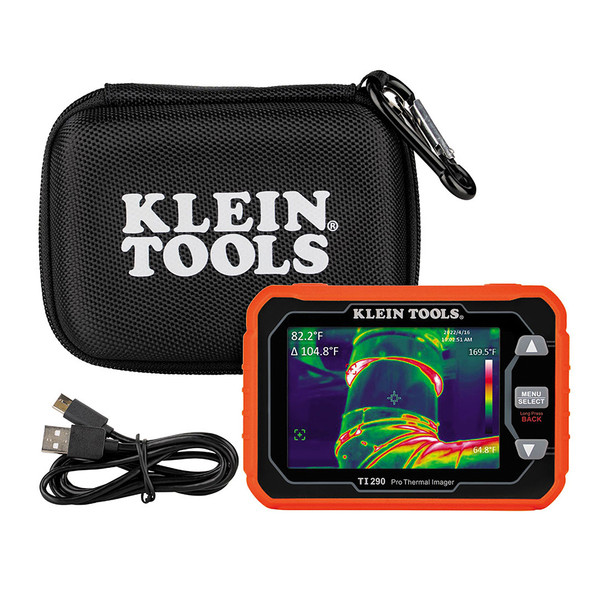

Includes
- (1) Klein Tools TI290 Rechargeable Pocket Sized Thermal Imaging Camera
- (1) Charging Cable
- (1) Carry Case
Resources
Klein TI290 Thermal Imager Manual
