MalcoEdge DVG1 Digital Vacuum Gauge
The Edge HVACR Pros Rely On, The Edge You Deserve

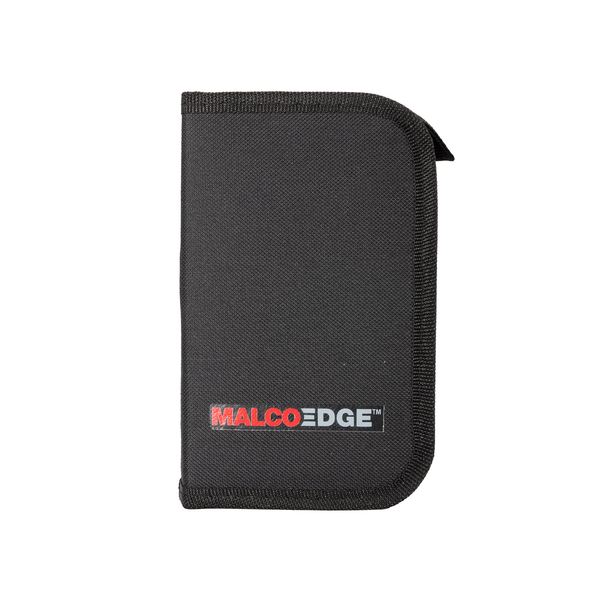

The MalcoEdge™ DVG1 Digital Vacuum Gauge delivers precise, professional-grade vacuum measurement from 0 to 99,999 microns, making it ideal for HVAC system evacuation and leak testing. Built for use with standard, A2L, and A3 refrigerant systems, the DVG1 includes essential accessories: a 1/4 SAE swivel tee, a 1/4 SAE to 5/16 SAE adapter with core depressor, and a durable zippered soft case. The backlit touchscreen display ensures visibility in any environment, while the vacuum decay test function with a 90 dB alarm removes guesswork from leakdown testing. With a 1-second refresh rate, adjustable auto-off, and 100-hour battery life on 3-AAA batteries, this tool offers top-tier reliability and convenience for HVAC pros.
Built on the legacy of Malco Tools, MalcoEdge™ is crafted with HVACR professionals at the core. Every tool stamped with the MalcoEdge™ name is the result of relentless innovation, rigorous testing, and a commitment to real-world quality. When techs are up on the roof, inside a crawl space, or fighting the elements, they can count on MalcoEdge™ to deliver precision, strength, and reliability that never quits.
Key Features & Benefits
- Accurately measures vacuum levels between 0-99,999 microns with a fast one-second refresh rate
- Backlit display to clearly show vacuum level in any work environment with convenient touch screen controls

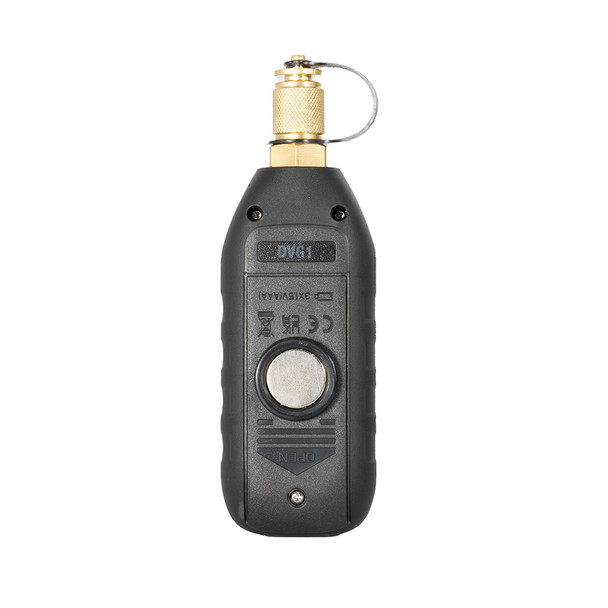

- Magnetic back allows for convenient storage both on and off the job
- Adjustable auto-off function preserves battery life
- Rated for all standard, A2L, and A3 system applications
- Withstands high pressure and rugged job site conditions
Specs
| DAT392 Digital Alarm Thermometer Specs | |
|---|---|
| Maximum Pressure | 72 PSI / 0.5 MPa |
| Range |
0–99,999 Pa, 0–1,000 mBar, 0–30 inHg, 0–99,999 Micron, 0–760 Torr |
| Resolution |
0.01 (<10 Pa), 0.0001 (<10 mBar), 0.0001 (<0.5 inHg), 1 (<30,000 Microns), 1 (<760 Torr) |
| Accuracy | 2–100 Pa, ±5% of reading (at 20 °C) |
| Operating Temperature | 32 °F ~ 122 °F (0 °C ~ 50 °C) |
| Battery Life | 100 hours (3× AAA batteries) |
| Units | Pa, mBar, inHg, Microns, Torr |
| Refresh Rate | 1 second |
| Connection | 1/4" SAE female flare |
| Sensor | Pirani sensor |
| Auto Off Time | 10 minutes |
| Backlight On Time | 20 seconds |
| Buzzer Alarm | 90 dB |
| Weight | 7 oz. (with batteries) |
Includes
- (1) MalcoEdge DVG1 Digital Vacuum Gauge
Resources
MalcoEdge DVG1 Vacuum Gauge Manual
