Description

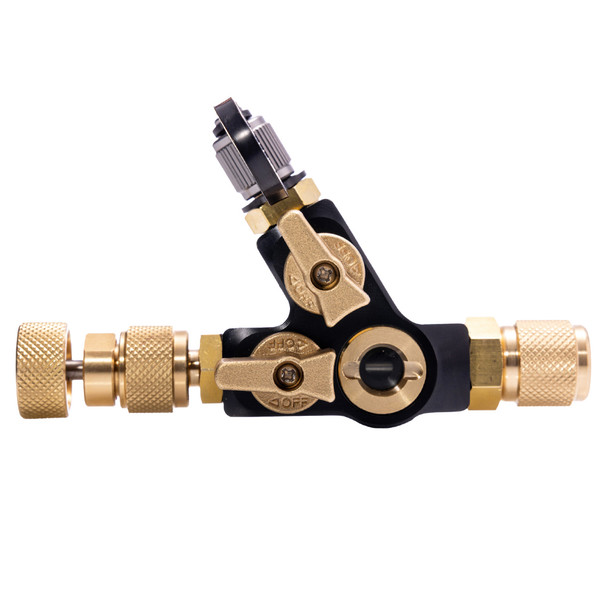

MalcoEdge CRT2Y Hi-Flow Valve Core Removal Tool Dual Valve with Sight Glass
Dual-Valve Control for Efficient Evacuation, Recovery, and Charging
The MalcoEdge CRT2Y Hi-Flow Core Removal Tool is designed to speed up evacuation, recovery, and charging operations while providing greater control and visibility during service. Its unique Y-shaped dual-valve design allows technicians to connect a vacuum gauge and hose simultaneously, while the integrated sight glass confirms successful valve core capture before removal. Built for modern HVACR systems, the CRT2Y includes interchangeable 1/4" and 5/16" fittings for expanded compatibility and is vacuum-rated to 20 microns for high-performance evacuation work.
Key Features & Benefits

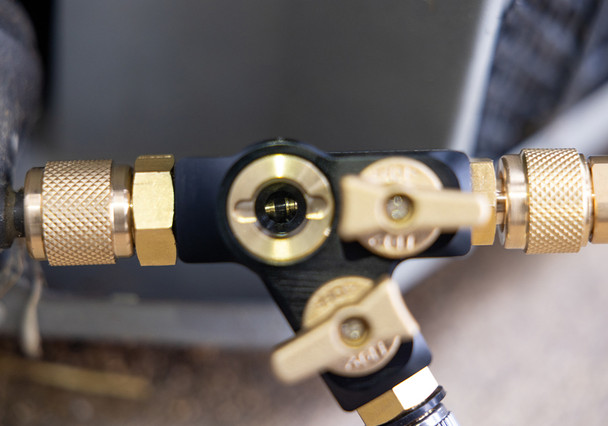

- Integrated sight glass visually confirms valve core capture before removal
- Dual independent valves allow simultaneous vacuum gauge and hose connections
- Y-configuration promotes faster evacuation, recovery, and charging
- Magnetic capture rod knob attaches to metal surfaces for convenient access during service
- Standard 1/4" female connection with included swappable 5/16" fitting
- Includes 1/4" M x 3/8" M adapter for expanded system compatibility
- Vacuum rated to 20 microns for deep evacuation applications
- High-pressure rated to 800 psi (55 bar)
- A2L and A3 ready for use on modern refrigerant systems
- Includes protective hard-shell carrying case
Specs
| Connection Sizes | 1/4" or 5/16" Swappable Fittings, 1/4" M x 3/8" M Adapter |
| Vacuum Rating | 20 Microns |
| Maximum Working Pressure | 800 psi |
| Material | Anodized Aluminum Body with Brass Fittings |
Includes
- (1) MalcoEdge CRT2Y Hi-Flow Valve Core Removal Tool
- (1) Swappable 5/16" F Port Fitting
- (1) Swappable 3/8" M Port Adapter
- (1) Hard Case
MalcoEdge Core Removal Tools Datasheet
