Description

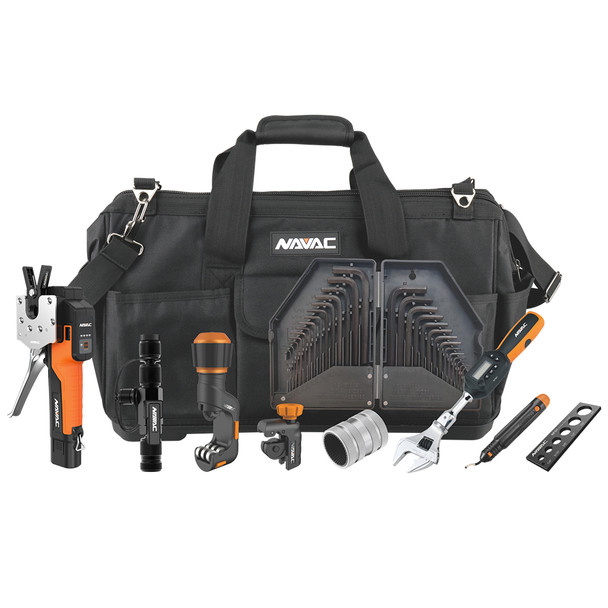

NAVAC NKS3 Deluxe Mini Split Tool Kit with Flaring Tool, Digital Torque Wrench, and Tubing Tools
Deluxe tool kit for mini split installation
The NKS3 tool kit carries all the essential tools you will need for working on mini-splits. The NEF6L2 Cordless Flaring Tool features quick accurate flaring and ultra-light at 2.9 lbs, allowing you to work in compact spaces with one-hand operation. The NTW1 Digital Torque Wrench with digital readout saves your torque settings and peak hold. The NVR2 Valve Core Removal Tool features a modern design with two sizes in one tool, and is designed for high-pressure refrigerants.
Key Features & Benefits
- Professional-grade mini-split installation tool kit designed for HVAC installation and service work
- Includes the NEF6L2 BreakFree cordless power flaring tool for fast, consistent 45° flares using one-hand operation
- Digital torque wrench delivers precise tightening with digital readout, torque memory, and peak hold functionality
- Updated NVR2 valve core removal tool features a modern 2-in-1 design for 1/4" and 5/16" fittings, rated to 20 microns
- Includes tubing cutters, reamers, deburring tools, and flare gauge to cover common mini-split line set sizes
- Ideal for technicians looking for an all-in-one kit to streamline mini-split installations with fewer tool changes
Kit Includes
- NEF6L2 BreakFree Power Flaring Tool - Lithium battery: 7.4V 2Ah 14.8Wh, Tube OD: 1/4", 3/8", 1/2", 5/8", 3/4"
- NTW1 Digital Torque Wrench - 3.1 - 62.7 ft·lb (4.2 - 85 N-m)
- NVR2 Valve Core Removal Tool - Vacuum related to 20 microns, For use with both 1/4" and 5/16" flare fittings

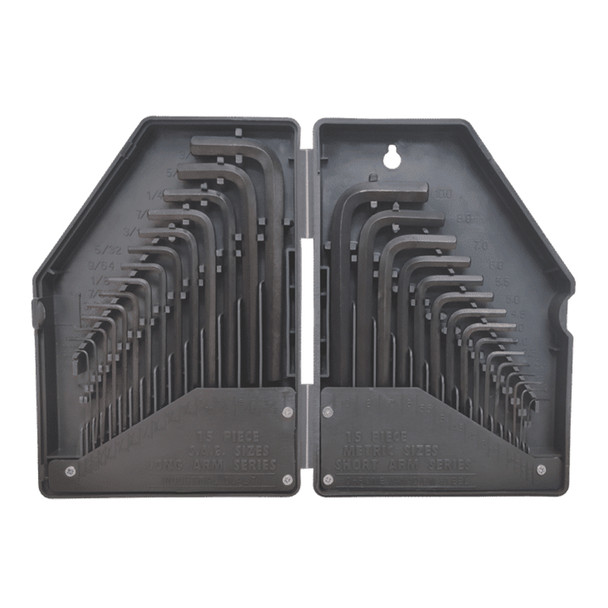

- NHK1 Hex Wrench Set - 30-Piece Hex Key Set, SAE: 7/250"-3/8", Metric: 0.7-10 mm

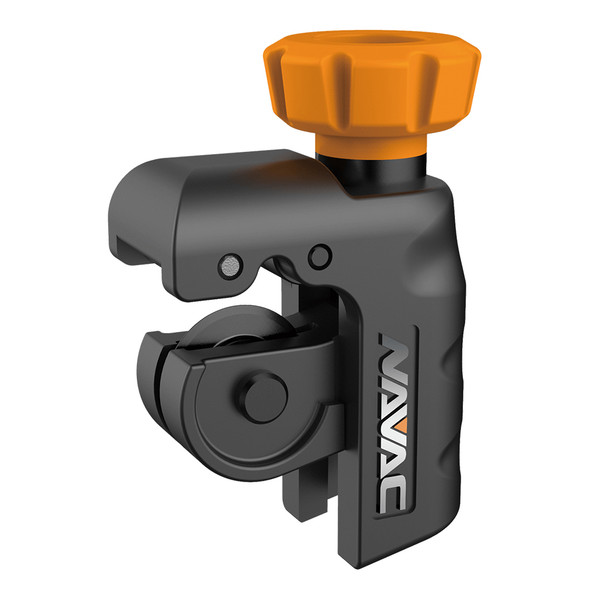

- NTC6 Tube Cutter - Tube OD 1/8" - 3/4"
- NTC12 Tube Cutter - Tube OD 1/8" - 1-1/4"

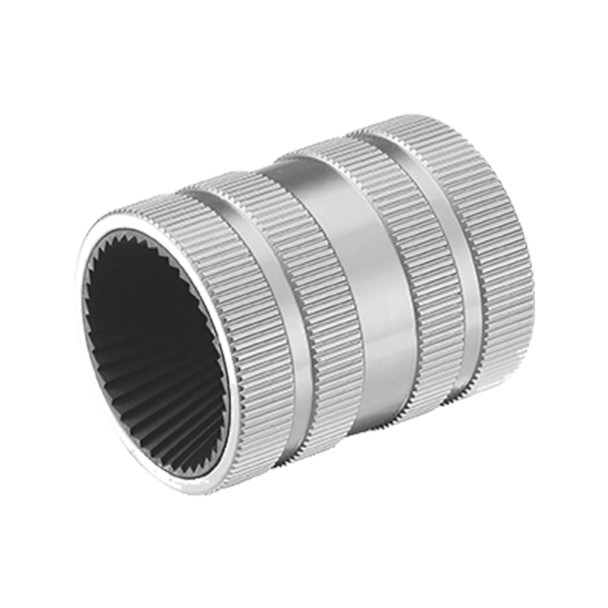

- NTR14 Internal/External Reamer - Tube OD 1/8" - 1-1/2"
- NTD28 Tube Deburrer - 2 spare blades included
- NFG1 Flare Gauge - Tube sizes: 1/4", 5/16", 3/8", 1/2", 5/8", 3/4"
Specs
| NEF6L2 Flaring Tool Specs | |
|---|---|
| Tubing Type | Soft (HVACR) Copper |
| Tubing OD | 1/4", 3/8", 1/2", 5/8", 3/4" (5/16" available separately) |
| Battery | Rechargeable lithium battery, 7.2V 2Ah 14.4Wh, Type-C charging port |
| Weight | 2.9 lbs (with battery) |
| Included Accessories | NBF3 Battery, Carry Case |
| NTW1 Torque Wrench Specs | |
| Torque Measuring Range | 3.1 - 62.7 ft-lb (4.2 - 85 N-m) |
| Jaw Size | 0.2 - 1.2 inch (5 - 30 mm) |
| Battery | AAA x 2 |
| Weight | 3 lbs |
| Waranty | 1 Year |
Includes
- (1) NEF6L2 BreakFree Power Flaring Tool
- (1) NTW1 Digital Torque Wrench
- (1) NVR2 Valve Core Removal Tool
- (1) NHK1 Hex Wrench Set
- (1) NTC6 Tube Cutter
- (1) NTC12 Tube Cutter
- (1) NTR14 Internal/External Reamer
- (1) NTD28 Tube Deburrer
- (1) NFG1 Flare Gauge
