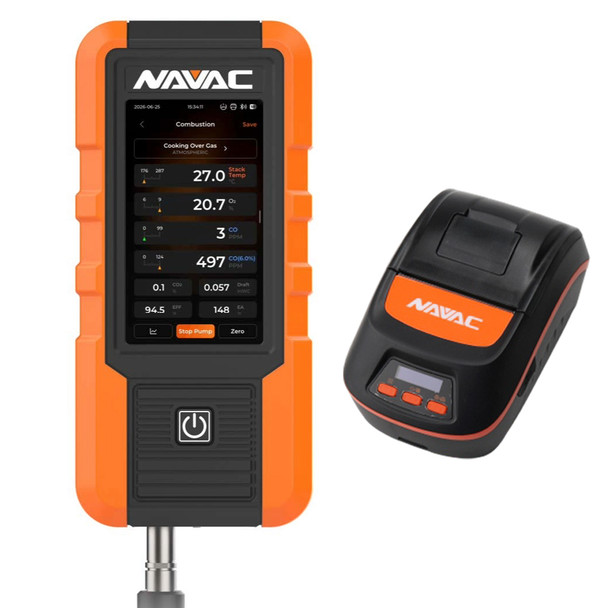

NAVAC NMA1P Smart Combustion Analyzer with Wireless Thermal Printer
Complete combustion analysis, draft measurement, and wireless reporting in one field-ready tool
The NAVAC NMA1P Smart Combustion Analyzer Kit delivers the same advanced combustion testing capabilities as the NMA1 while adding the convenience of wireless report printing. Designed for HVAC professionals who need to document combustion performance quickly and efficiently, the NMA1P measures O2, CO, flue temperature, draft, combustion efficiency, excess air, and calculated CO2 while providing easy access to saved readings and reports through its responsive 5-inch HD touchscreen.
With Bluetooth connectivity to both the included NPR1 Wireless Thermal Printer and compatible mobile apps, technicians can view, save, share, and print test results directly from the field. The built-in differential pressure sensor removes the need for a separate manometer, while storage for up to 1,000 records helps streamline inspection and service documentation. Powered by a rechargeable USB-C battery system offering more than six hours of operation, the NMA1P is an all-in-one solution for combustion analysis, commissioning, maintenance, and system troubleshooting.
Key Features & Benefits
- Measures O2, CO, flue gas temperature, draft/pressure, combustion efficiency, excess air, and calculated CO2 in one instrument
- Large 5-inch HD color touchscreen with intuitive smartphone-style operation
- Built-in differential pressure measurement up to ±40 inWC eliminates the need for a separate manometer
- Bluetooth connectivity with up to 164 ft. wireless range for remote monitoring
- Compatible with myNAVAC™ and measureQuick® mobile apps
- Stores up to 1,000 combustion test records for reporting and documentation
- Ambient CO monitoring with alarm levels for enhanced technician safety
- Rechargeable USB Type-C battery provides over 6 hours of runtime

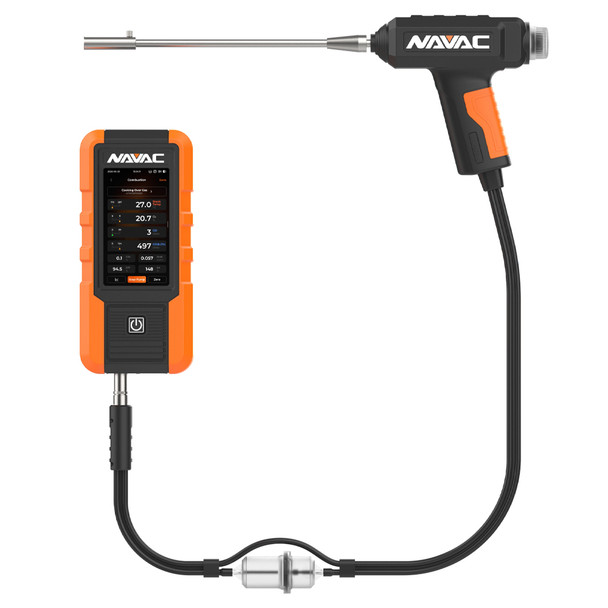

- Lightweight gun-style probe design for comfortable field use
- Includes NPR1 wireless thermal printer for on-site report printing
Return Eligibility: This product is covered by our standard 30-day return policy. Opened or used products are inspected before refund approval and may be subject to restocking, inspection, calibration, refurbishment, or replacement-part charges based on their returned condition.
Specs
| NAVAC NMA1P Smart Combustion Analyzer Specs | |
|---|---|
| O2 Measurement Range | 0 to 25 vol.% |
| O2 Accuracy | ±0.3 vol.% |
| CO Measurement Range | 0 to 4,000 ppm (Overload: 10,000 ppm) |
| CO Accuracy | ±10 ppm (0-200 ppm), ±5% rdg (201-2,000 ppm), ±10% rdg (2,001-4,000 ppm) |
| Flue Gas Temperature Range | 32°F to 1112°F (0°C to 600°C) |
| Differential Pressure Range | ±40 inWC |
| Calculated Values | CO2, Combustion Efficiency, Excess Air, Flue Gas Loss |
| Ambient Temperature Range | -4°F to 248°F (-20°C to 120°C) |
| Bluetooth Range | Up to 164 ft. (50 m) |
| Pump Flow Rate | >400 mL/min |
| Display | 5" HD Color Touchscreen (720 x 1280) |
| Data Storage | Up to 1,000 Records |
| Battery | Rechargeable USB Type-C |
| Battery Life | 6 Hours with pump |
| Charging Time | Less Than 3 Hours |
| Operating Temperature | 23°F to 113°F (-5°C to 45°C) |
| Operating Humidity | <90% RH |
| Storage Temperature | -4°F to 122°F (-20°C to 50°C) |
| Analyzer Weight | 1.65 lb. (749 g) |
| Probe Weight | 1.21 lb. (550 g) |
| Analyzer Dimensions | 9.25" x 4.33" x 2.32" (235 x 110 x 58.9 mm) |
| Case Dimensions | 20.94" x 13.50" x 5.24" (532 x 343 x 133mm) |
| Warranty | 2-Year Instrument Warranty, 4-Year Sensor Warranty |
Includes
- (1) NAVAC NMA1 Smart Combustion Analyzer
- (1) Probe with Water Trap Assembly
- (1) NAVAC NPR1 Wireless Thermal Printer
- (1) Roll of Printer Paper
- (1) O-Ring Seal
- (1) Dust Filter Element
- (1) Tube Connector
- (1) Adapter Hose
- (1) Silicone Hose and Connector
- (1) 5' C-to-C Cable
- (1) Carry Case
- (1) Inspection Report
- (1) Certificate of Conformity
