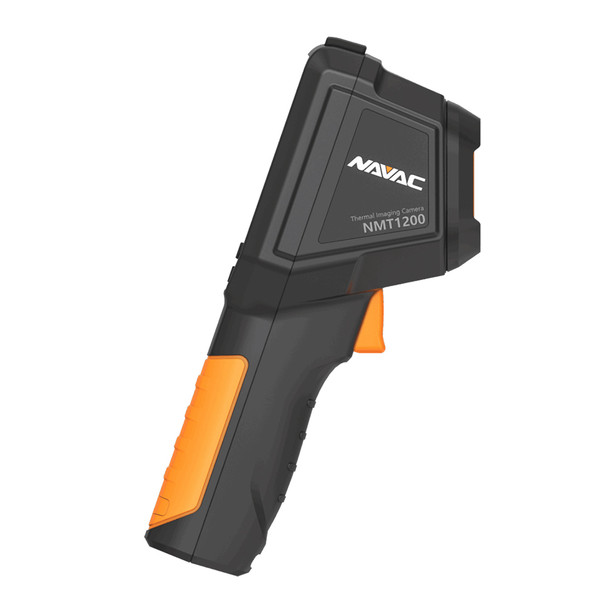

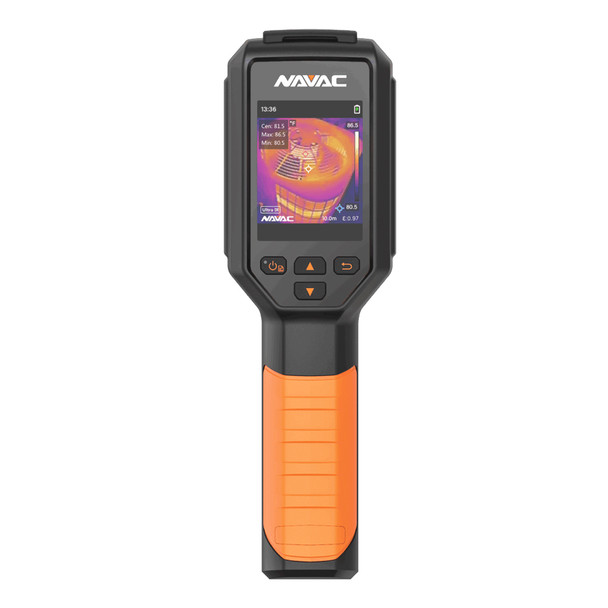

NAVAC NMT1200 Thermal Imaging Camera 96x96 IR with 4x Ultra Resolution
Troubleshoot HVAC systems through a new lens
Introducing The NAVAC NMT1200 Thermal Imaging Camera. Designed for HVAC applications and equipped with a 96x96 resolution thermal detector and Ultra IR technology, it provides the technician with fast and accurate thermal imaging of the entire field of the measurement vs. just spot temperature. It highlights the highest and lowest temperature spots in the field to assist with fast diagnosis and troubleshooting of HVAC systems.
Key Features & Benefits
- High quality thermal imaging
- 96 x 96 resolution, 240 x 240 resolution with Ultra IR on
- Sensitive detector gives distinct vision of target
- Highlight hot and cold spots for quick measurement
- Smooth 25Hz fast refresh rate captures moving targets
- Long battery life up to 8 hours
- Lightweight, compact design
- Auto temp range
- Laser pointer
- Quick start in 8 seconds
- Store and export images
Specs
| NMT1200 Thermal Imager Specs | |
|---|---|
| Ultra IR | 240 x 240 (57,600 pixels) |
| IR Resolution | 96 x 96 (9216 pixels) |
| Image Frequency | 25 Hz |
| Display | 240 x 320 Resolution, 2.4" LCD Screen |
| Temperature Range | -4°F to 1022 °F (-20°C to 550°C) |
| Accuracy | Max (3.6°F/±2°C/, ±2%) at ambient temperature 77°F (25°C) and object temperature above 32°F (0°C) |
| Thermal Sensitivity (NETD) | < 50 mK (@ 25 °C, F#=1.0) |
| Battery Life | Approx. 8 hours |
| Measurement Presets | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion |
| Warranty | 1 Year |
Includes
- (1) NAVAC NMT1200 Thermal Imaging Camera
NAVAC NMT1200 Thermal Imager Manual
