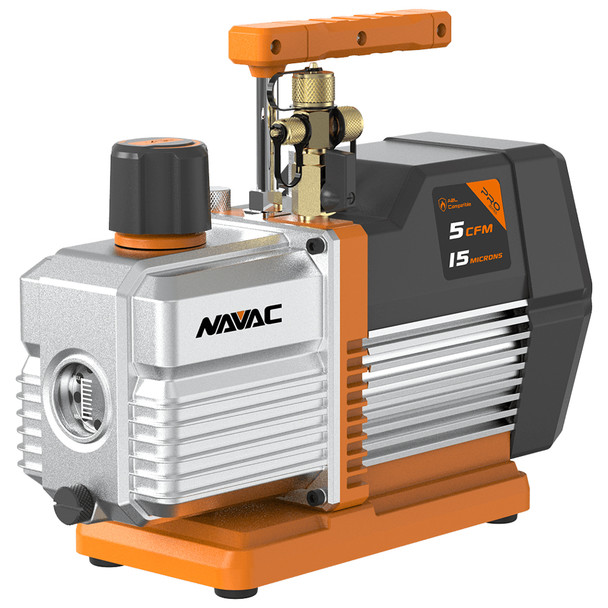

NAVAC NP5DP2 Pro Series Vacuum Pump 5 CFM, 15 Microns, A2L Compatible
Performance and reliability
NAVAC NP5DP2 is an A2L compatible vacuum pump with expanded applications. Its dual-stage design delivers an ultimate vacuum down to 15 microns with unmatched reliability. Integrated cylinder structure coupled with forced oil circulation assures its high performance and reliability. The built-in hook makes it easy to carry to a high workplace.
Key Features & Benefits
- Dual stage with integrated pump structure for high ultimate vacuum
- Oil mist filter for noise and exhaust reduction
- Gas ballast for moisture management
- Manual ball valve for vacuum preservation
- Lifting hook
- Backflow prevention check valve
- 5 CFM, 15 microns
- A2L compatible
Specs
| NP5DP2 Vauum Pump Specs | |
|---|---|
| Power Supply | 115V / 60Hz |
| Flow Rate | 5 CFM |
| Ultimate Vacuum | 15 micron |
| Pump Design | Dual-Stage, AC Motor |
| Motor Power | 3/4 HP |
| Inlet Port | 1/4", 3/8", 1/2" Flare |
| Oil Capacity | 17 oz |
| Dimension | 14 x 5 x 11.3 in |
| Weight | 24.3 |
| Warranty | 1 Year |
Includes
- (1) NAVAC NP5DP2 Pro Series Vacuum Pump 5 CFM
NAVAC NP5DP2 Vacuum Pump Manual
