NAVAC NX4V NEXUS Smart Digital Manifold Gauge with Vacuum Gauge and Temperature Clamps
Smart and precise
The NAVAC NX4V Nexus Digital Manifold Gauge revolutionizes HVAC diagnostics with advanced wireless features. Equipped with 4 valves, including a 3/8" vacuum port for fast evacuations, it enables a single setup for multi-task operations. Seamlessly connect to Bluetooth-enabled temperature probes and micron gauges to access comprehensive remote insights directly on the Nexus screen. Designed to meet diverse needs, it offers four operational modes: Manifold, Leak Test, Evacuation, and Decay Test. The robust aluminum body and 1/4-turn ball valve ensure lasting durability, while the foldable hidden hook enhances portability. With Class 0.4 accuracy and a clear digital display, it delivers precise readings. Built to endure field challenges, its impact-resistant, rubber-covered construction guarantees reliable, long-term performance.
Key Features & Benefits
- Smart and wireless, connects to included temp clamps and included micron gauge
- Works with the MyNAVAC App
- Multiple operation modes
- Manifold mode with SH/SC display, pressure test, and evacuation mode
- 4-valve with 3/8" vauum port
- Class 0.4 accuracy with digital display
- Aluminum body with 1/4 turn ball valves
- Easy to use
Specs
| NX4 Manifold Gauge Specs | |
|---|---|
| Refrigerant Type | R-11, R-12, R-13, R-22, R-23, R-32, R-113, R-114, R-115, R-116 R-123, R-124, R-125, R134a, R-236fa, R-245fa, R-290, R-401A, R-401B, R-402A R-402B, R-403B, R-404A, R-406A, R-407A, R-407B, R-407C, R-408A, R-409A, R-410A R-413A, R-414A, R-414B, R-416A, R-417A, R-417C, R-420A, R-421A, R-421B, R-422A R-422B, R-422C, R-422D, R-424A, R-427A, R-428A, R-434A, R-437A, R-438A, R-448A R-449A, R-450A, R-452A, R-452B, R-453A, R-454B, R-458A, R-500, R-501, R-502 R-503, R-507A, R-508B, R-513A, R-600, R-600a, R-601, R-601a, R-744*, R-1233zd R-1234yf, R-1234ze |
| Maximum Pressure | 1087psi (7500kPa) |
| Firmware | Firmware can be updated on NAVAC website or with MyNAVAC™ App |
| Ports | (1) 3/8" SAE vacuum; (3) 1/4" SAE for suction line liquid line, and refrigerant recovery/charging |
| Maximum Manifold Pressure | 1087psi (7500kPa) |
| Power Supply | Rechargeable 3000mAh lithium battery |
| Accessory | Bluetooth Temperature Clamps NST1 (Low Side) & NST2 (High Side), Charging Cable, Carry Case, NMV1S Micron Gauge |
| Warranty | 2 years |
Includes
- (1) NAVAC NX4 NEXUS Smart Digital Manifold Gauge

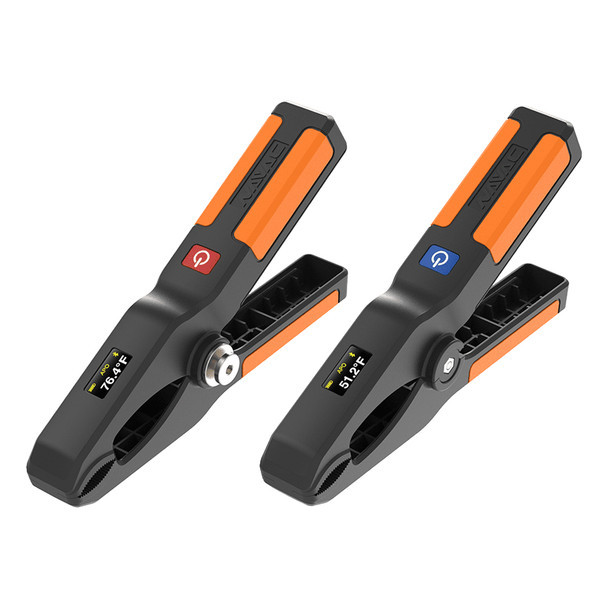

- (2) NAVAC Wireless Temp Clamps
- (1) NAVAC NMV1S Vacuum Gauge
Resources
NAVAC NX4V Manifold Gauge Datasheet
