Description
NAVAC SK2TP1 Smart Refrigerant Diagnostic Kit with Temperature and Pressure Probes
Smart charging and comfort diagnostics
The SK2TP1 Smart Refrigerant Diagnostics Kit is a comprehensive solution for HVACR professionals, featuring a pair of Bluetooth Temperature Clamps, two NSP1 Bluetooth Pressure Probes, and two 1/4" SAE Access Tee Connectors. Each probe in the kit includes a built-in digital display for standalone use. With wireless connectivity to the myNAVAC™ App, this kit delivers precision, efficiency, and convenience for refrigerant diagnostics and optimal performance.
Key Features & Benefits
- Smart probes with built in digital displays
- Probes are suitable for standalone use
- Wireless connection with the MyNAVAC App and works with measureQuick
- High accuracy sensors
- A2L compatible
NSP1 Bluetooth Pressure Probes
- Auto VSAT/LSAT calculations through app
- Rechargable battery
- Easy switch knob for either High (HP) or Low (LP) Side
NST1 & NST2 Bluetooth Temperature Clamps
- 1-5/8" jaw opening
- High accuracy thermistor sensor
- Connects with the NEXUS manifold
The One App To Rule Them All.
Discover the unique advantage of measureQuick - the only HVAC app that seamlessly connects with the industry's top Bluetooth-enabled tools. This platform integrates with leading devices from top manufacturers providing a single interface to gather crucial data and streamline your diagnostic process. With measureQuick, you can harness the power of cutting-edge technology to enhance your team's capabilities and deliver exceptional service to your customers. Experience the unparalleled convenience and efficiency of connecting your favorite tools all in one place, exclusively with measureQuick.
Download the measureQuick App for your Android or iOS devices
The Quickest Way to Consistent Results
App features:
- Guided Workflows - Blazing fast project templates, tuned to eliminate errors and decrease time on the job site.
- mQ Cloud - Pre-populate jobs before getting to site, and live-stream measurements from any tech, anywhere.
- ACCA QI Certificates - Prove to your clients that you're the best in town through a certified report and 3rd party validation
- Streamlined Connectivity - Rock-solid bluetooth management of every probe and tool, regardless of where you are on the job site.
Download the MyNAVAC App for your Android or iOS devices
The MyNAVAC App connects tools wirelessly to make jobs easier
App features:
- Smart phone displays the measured value in real time
- Remote control and setting
- Record and save the data required for monitoring and store it in the mobile phone
- The display of measured value can choose the process curve and table form, to display the data change of the system more comprehensively.
- The measurement results can be exported to measurement reports in EXCEL or PDF format, and sent out by e-mail or other means
- High-quality products and services, you can view relevant product manuals, product operation videos, FAQs and information feedback on the APP
Specs
| NST1 & NST2 Temp Clamp Specs | |
|---|---|
| Temp Range | -40~257°F (-40~125°C) |
| Accuracy | ± 2.3°F (± 1.3°C) |
| Resolution | 0.1 |
| Sensor Type | Thermistor Pt100 |
| Temperature Units | °F, °C |
| Max. Tube OD | 1-5/8" (42mm) |
| Battery Type | 2 x AAA |
| Max. Bluetooth Range | Up to 450' (150m) |
| Display Type | TFT |
| Unit Weight | 0.35 lbs |
| IP Rating | IP54 |
| NSP1 Pressure Probe Specs | |
| Measurement Range | -29.0 inHg to 725 psi |
| Maximum Overload Pressure | 1087 psi (7500 kPa) |
| Accuracy | ±0.5% of full range |
| Resolution | 0.01 psi |
| Sensor Type | Ceramic pressure sensor |
| Bluetooth Range | 50m (164 ft) |
| Power Supply | Rechargeable 1200mAh lithium battery / Type-C Charging Port |
| Rechargeable Battery Operating Time | Screen off: >200h; Screen on: >40h |
| Unit Weight | 7.6oz (0.47lbs / 215g) |
| Accessory | Carry bag |
| Wireless Frequency | 2.4 GHz |
| Auto Power Off (APO) | 2 hours (can be disabled) |
| Minimum Device Requirement | BLE4.0 or above, Android 7.0.0 or above, Apple iOS 12.0 or above |
| Warranty | 1 Year |

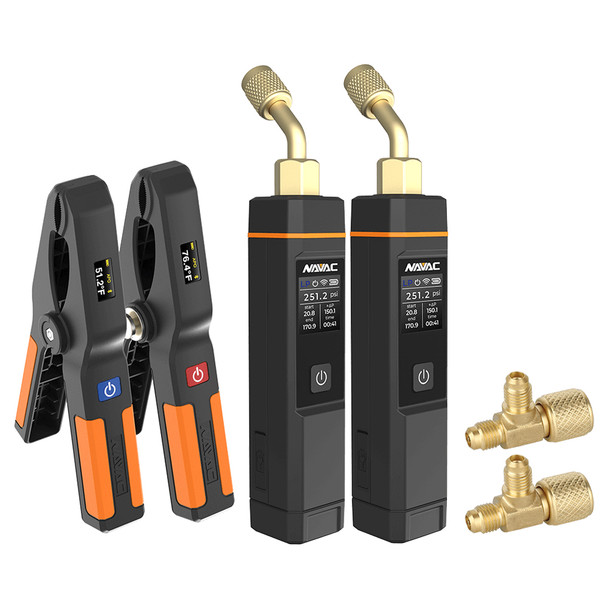

Includes
- (2) NAVAC NSP1 Wireless Pressure Probes
- (1) NAVAC NST1 Wireless Temperature Clamp Low Side
- (1) NAVAC NST2 Wireless Temperature Clamp High Side
- (2) 1/4" SAE Tees
