NCI Seitron NOVO Combustion Analyzer 2 Gas Kit with Additional Draft Probe, PM1 Personal CO Monitor, and Built-In Printer

This NCI-approved combination offers top-level performance, reliability, and ease of use for certified HVAC professionals

Seitron has collaborated with National Comfort Institute to bring a complete combustion analysis and indoor air quality solution to the market. Robust, reliable, and precise, the new Novo inherits the tradition of the Seitron analyzers and joins it with renewed software and hardware in order to offer a device easier to use. With a large 7" color touchscreen, built-in printer, simplified probe connection, and upgraded PRO Mode, Novo streamlines combustion analysis with real-time monitoring, intuitive diagnostics, and integrated data sharing tools.

Key Features and Benefits

Pro Analysis Mode: Combustion analysis becomes visual with colored readings, graphs/charts, and more
Cracked Heat Exchanger Test: A fast, reliable way to identify hazards before they become serious
Additional Draft Probe: Ideal for technicians who need precision across multiple stack zones
PM1 Personal CO Monitor: Detects low level CO from 0 - 300 ppm; Low Level Alarm at 9 ppm; High Level Alarm at 35 ppm; 24 month lifespan
Built-In Printer: Quick, easy on site printouts for immediate documentation
7" touch display for easy menu navigation
Dedicated probe with one simple connection
Integrated water trap with LED backlight for easy maintenance
Simultaneous measurement of combustion, gas pressure, and draft
Dual range sensor technology
Field replaceable, pre-calibrated sensors
15 Preprogrammed Fuels Including Natural Gas, Oil, Propane, & Biofuels
The complete NCI bundle with printer and CO monitor
Long Life O2 Sensor with 4 Year Warranty
High CO Protection up to 100,000 ppm
Integrated manometer for draft and pressure
NOx upgradeable for NO and NO2

NEW Cracked Heat Exchanger Test

Quickly detects potential cracks in forced-air furnace heat exchangers by comparing oxygen levels with the blower on and off. A fast, reliable way to identify hazards before they become serious.

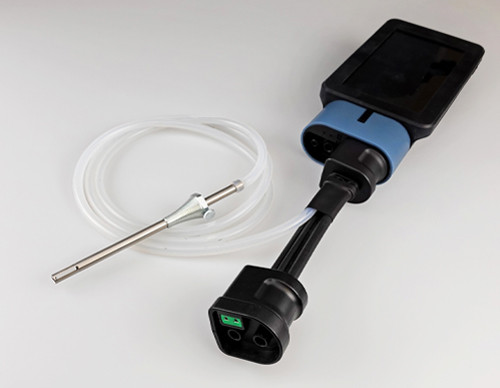

NEW Optional Draft Probe

External probe for NoVO allows measurements at alternate flue points, providing greater flexibility and diagnostic accuracy. Ideal for technicians who need precision across multiple stack zones.

Discover Pro Analysis Mode

Seitron has further improved the PRO mode of Novo, allowing real-time monitoring of not only the gases, but also the gas pressure and draft. How does it work?

Select Fuel Type & Equipment Type (80% Boiler, 90% furnace, water heater, etc)
Watch & Stabilize your Combustion readings in the GREEN Zone for optimal combustion
View Stoichiometric Chart / Graph
Print or Email the results

Learn all that NOVO has to offer

Watch the full video to discover all the new features of Novo!

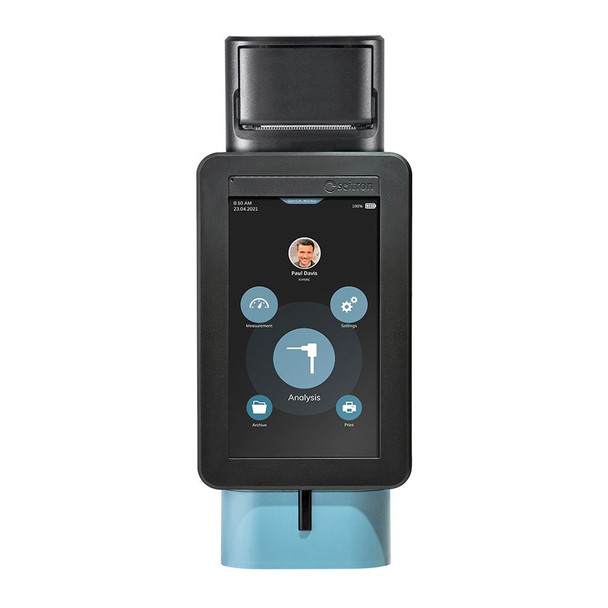

Display and Probe

The 7in display grants maximum visibility of all information along with quick and smooth browsing experience. Instead of three separate connections for temperature, draft and flue gases, it has just one simple connection. This new connection allows the user to connect the probe without looking, with an easy plug-n-play design.

Water Trap with LED

The water trap design has been completely innovated to guarantee maximum performance and easy maintenance. A large inspection window with backlit LED allows the user to quickly and very easily check the water level and filter at any time.

Measure Combustion and Gas Simultaneously

Thanks to the possibility of measuring combustion parameters and gas pressures at the same time, Novo drastically reduces service time and limits the need to use different devices.

New Dual Range Sensor Technology

How many times have you had the doubt, should I use a high or low range sensor? Stop asking yourself, starting from today you will have just one sensor for both ranges. NOVO detects gas concentrations and automatically adjusts the scale, ensuring the sensor life and the measurement resolution.

Download the Seitron Smart Analysis App for your Android or iOS devices

App features:

Live Viewing of Data
Data logging
Custom Report creation
QR code or real-time Bluetooth
Sharing via e-mail (csv, pdf, xml)
Create Customer Profiles
Custom reports with your logo

Specs

NOVO Analyzer Specs
Gas measurement sensors	2 Sensors, O2 and CO-H2 Compensated
O2 Sensor	Measurement Range: 0-25% Vol Resolution: 0.1% Vol Accuracy: ±0.2% Vol
CO Sensor (H2 compensated)	Measurement Range: 0-500 ppm 501-8000 ppm Resolution: 0.1 ppm (0-500 ppm) 1 ppm (501-8000 ppm) Accuracy: ±2 ppm (0-40 ppm) ±5% rdg (40.1-500 ppm) ±10% rdg (501-8000 ppm)
Autozero	Automatic zero cycle with probe inserted in the stack
Dilution (where required)	High CO protection up to 100,000 ppm User programmable threshold
Probe connection	Using a solid and robust connector it is possible to measure smokes values, temperature and draft at the same time
Self-diagnosis	Check of all functions and internal sensors with anomalies report
Temperature measurement	Double input for K thermocouple with mignon connector for measuring the differential pressure (output and input)
Ambient temperature measurement	Internal sensor or T2 thermocouple Input with Remote Probe
Gas valve pressure measurement	Using a pressure sensor and a direct connection to the gas valve with a dedicated tube it is possible to perform this measurement simultaneously with the other combustion control measures (input P3)
Draft measurement	Internal sensor connected to port P1
Fuel types	Factory default and user programmable
Power supply	Battery pack Li-Ion
Battery charger	Wall Plug 5Vdc 2A with USB Type A port Connection to the instrument with the same serial supplied communication cable
Charging time	6 hours to charge from 0% to 90% (8 hours 100%) Charging can also be performed with the instrument connected to the PC (switched off) Charging time can last up to 12 hours depending on PC current output
Instrument Autonomy	8 hours of continuous operation at 77 °F (25 °C)
Display	Color TFT 7" with CTP and Backlight
Printer	Integrated thermal printer with easy paper roll loading and paper sensor
Printer power supply	The printer uses the analyzer batteries
Printer autonomy	With fully charged batteries, up to 40 analysis reports
Suction pump	1.0 l/min heads at the flue up to 135 mbar
Flow measurement	Internal sensor measuring pump flow rate (0.7 to 1.2 l/min)
Water trap / smoke sampling unit	Removable internal unit for water emptying and particulate filter replacement
Line filter	Replaceable cartridge, 99% efficiency with 20 µm particles
Ambient CO measurement	Separate measurement and printing of ambient CO values
Data communication port	USB with connector TYPE C
Bluetooth	Yes
Internal data memory	100 MB
User data	8 programmable user names
Protection degree	IP42
Operating Temperature	23 °F to 113 °F (−5 °C to 45 °C)
Storage Temperature	−4 °F ro 122 °F (−20 °C to 50 °C)
Humidity Limit	20% - 80% RH

PM1 CO Monitor Specs
Detected Gas Range	Carbon Monoxide (CO), 0 - 300 ppm
Low Alarm	9 ppm
High Alarm	35 ppm
Sensor Type	Electrochemical
Alarms	Acoustic: 95 dB @ 10 cm Visual: LED Vibration: Vibrating motor
Event Storage	Last 30 events
Battery	Lithium battery, 3.6 Vdc, 1.65 Ah
Lifetime	24 months of operation (with 2 minutes of alarms per day)
Display	LCD
Dimensions	3.5" x 2" x 1.1" (89mm x 51mm x 28mm)

Includes

(1) NOVO Combustion Analyzer with Printer
(1) PM1 CO Monitor
(1) Gas probe with 12" interchangeable tip
(1) 10 ft Single Connection Hose
(1) Additional Draft Probe with 6ft Silicone Hose
(1) Integrated Water Trap
(1) Manometer Hoses
(1) AC Power Adapter & Cable

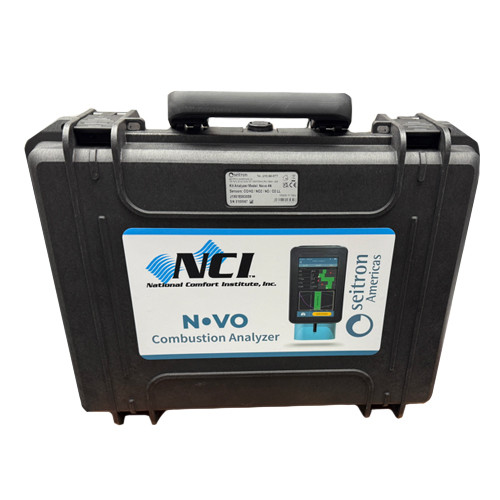

(1) Foam Lined Hard Case
(1) Combustion Cheat Sheet
(1) Calibration Certificate
